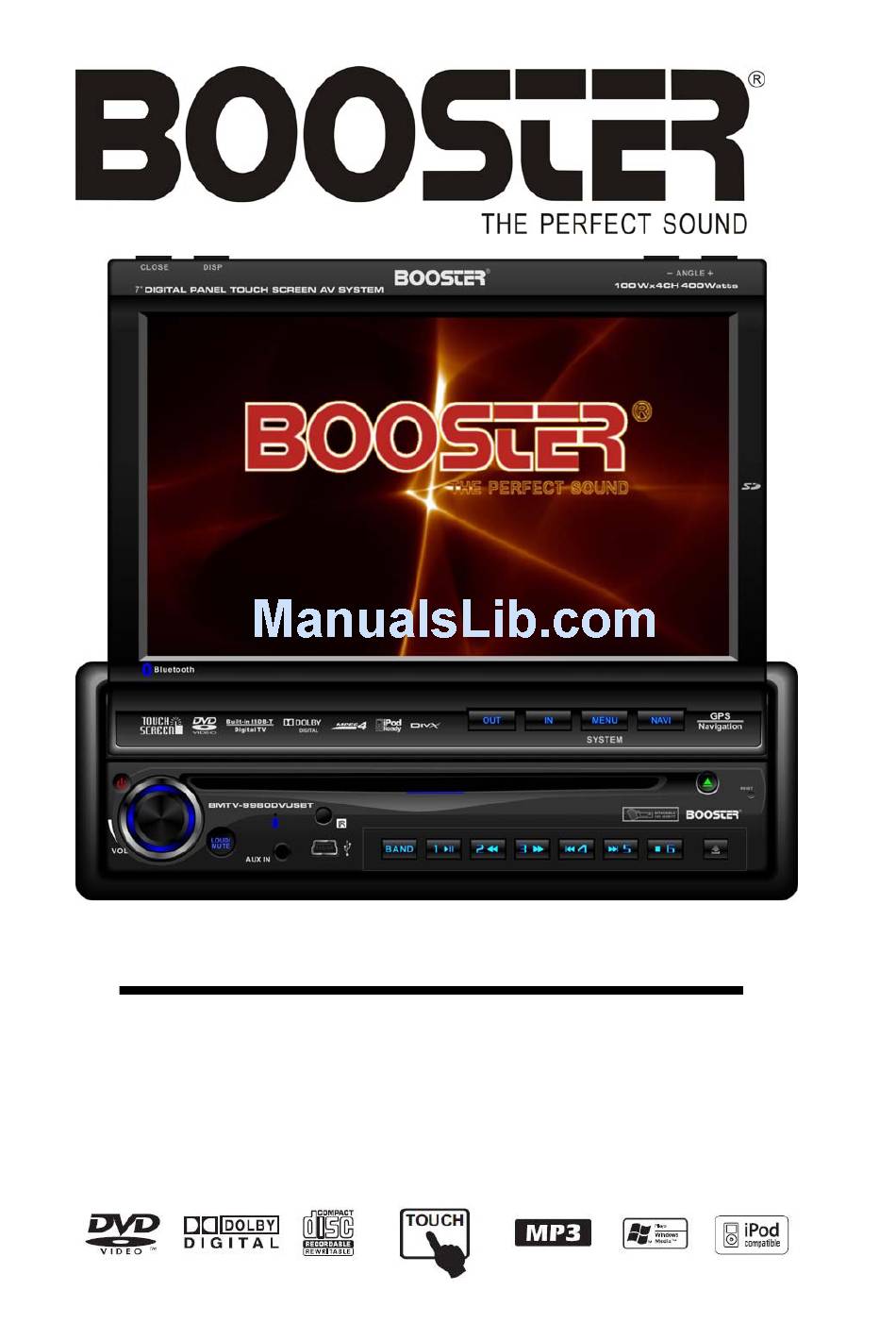

  • Page 1 BMTV-9980DVUSBT INSTALLATION /OWNER'S MANUAL DVD Multimedia Receiver with 7" Digital Wide Touch Screen Display In-Dash Fully Motorized TFT Monitor DVD/AM/FM/ Bluetooth Receiver With built-in Digital TV (ISDB) with GPS Navigation...

  • Page 2: Table Of Contents

    BMTV-9980DVUSBT Table of Contents Safety Information……………..…………………………………….………………………2 Features…………………………………………………………….………………………4 Accessories……………………………………….…….………………………………….5 Wire Connection……………...……………………………..……………………………….6 Unit Installation and Removal………………………….….………………………………10 Front Panel………………………………………………………..…..……………………15 Remote Control……………………………………………………………………………19 Touch Screen Operations………………………………………………….……………24 Touch Screen Calibration…………………………………….………………………24 Main Menu…………………………………………………….………………………25 Radio Operations…………………………………………………….……………….26 DVD Operations…………………………………………………….……………….27 Bluetooth Operations…………………………………………………….…………33 i-POD Operations…………………………………………………….……………….38 SD CARD Operations……………………………………………….………………..40 USB Operations…………………………………………………….………………..40 AV IN Operations…………………………………………………….………………41 AUX IN Operations………………………………………………….………………41...

  • Page 3: Safety Information

    BMTV-9980DVUSBT SAFETY INFORMATION PLEASE READ COMPLETELY AND BECOME FAMILIAR WITH THE CONTENTS OF THIS MANUAL BEFORE INSTALLATION AND OPERATION OF THIS UNIT, AND KEEP IT CAREFULLY FOR FUTURE REFERENCE. This unit is a class 1 laser product. The laser beam may cause hazardous radiation if exposure to laser system directly.
  • Page 4 BMTV-9980DVUSBT Warnings 1. To reduce the risk of fire or electric shock, and annoying interference, use only the recommended accessories. 2. While driving, keep the volume level low enough to be aware of road and traffic conditions. 3. Parking in direct sunlight can produce very high temperatures inside your vehicle.

  • Page 5: Features

    BMTV-9980DVUSBT FEATURES 1. ISO/1-DIN Size 2. DVD/DVD+/-R/DVD+/-RW/VCD/CD/CD-R/CD-RW/MP3 Compatible 3. 7" Wide-Screen Digital TFT/LCD Display 4. Touch Screen Panel Control 5. Graphic User Interface 6. High Brightness: 400 cd/m 7. Resolution: 2400 x 480 8. Color, Contrast, Brightness, Tint controls 9. 32-bit RISC Processor for Graphic User Interface 10.

  • Page 6: Accessories

    BMTV-9980DVUSBT ACCESSORIES Bolt and Nut M5 x 1 Back Strap x 1 M5X5 Screws x 4 Remote Control x 1 Power Wire x 1 Keys x 2 Mounting Sleeve x 1 Operational Manual x 1 Trim Bezel x 1 Slip cover x 1...

  • Page 7: Wire Connection

    BMTV-9980DVUSBT WIRE CONNECTION Cautions 1. To prevent short circuits, remove the key from the ignition and disconnect the terminal of the battery. 2. Make the proper input and output cable connections for each unit. 3. Connect the wiring harness cables in the following order: ground wire, battery wire, ignition wire.
  • Page 8 BMTV-9980DVUSBT 1. POWER WIRE 2. EXTERNAL NAVIGATION ADAPTOR DIGITAL TV ADAPTOR 3. AUDIO/VIDEO OUTPUTS & INPUTS. IPOD ADAPTOR 4. RADIO ANTENNA ADAPTER DIGITAL TV ANTENNA ADAPTER STEERING WHEEL CONTROL CABLE (OPTIONAL) - 7 -...
  • Page 9 BMTV-9980DVUSBT Brake Control Connect the brake control wire AUTO_ANT (see Wiring Diagram). It is necessary to connect the Brake Control wire to the Hand-brake switch of the car. While driving, the TFT monitor will display the alarm picture (see as follows) in order to ensure the safety.
  • Page 10 BMTV-9980DVUSBT Wiring Diagram - 9 -...

  • Page 11: Unit Installation And Removal

    BMTV-9980DVUSBT UNIT INSTALLATION AND REMOVAL Please read all of the instructions before beginning the installation. Recommend having your unit installed by a professional installation shop. Tools and Supplies You will need these tools and supplies to install your unit 1. Torx type, flat-head and Philips screwdrivers 2.
  • Page 12 BMTV-9980DVUSBT Installation Method 1 1 Install the mounting sleeve into the 2 Bend the claws into place to secure dashboard. the sleeve. 3 Slide the units into the mounting 4 Install the trim bezel onto the unit. sleeve. 5 Sketch map when installation finished.
  • Page 13 BMTV-9980DVUSBT Removal Method 1 1 Detach the trim bezel. 2 Insert the keys into the aperture between the unit and the mounting. 3 Pull the unit out of the mounting 4 Sketch map when removal finished. sleeve. - 12 -...
  • Page 14 BMTV-9980DVUSBT Installation Method 2 1 Tighten the bolt onto the rear panel of 2 Tighten the back strap onto your car the unit. inside the dashboard. 3 Place the unit into the dashboard; 4 Screw the unit on the car on the two make the bolt bar across back strap;...
  • Page 15 BMTV-9980DVUSBT Removal Method 2 1 Detach the trim bezel. 2 Unscrew the unit off the car on two sides. 3 Unscrew the Nut M5 screw on the 4 Sketch map when removal finished. rear side of the unit and pull out the unit.

  • Page 16: Front Panel

    BMTV-9980DVUSBT FRONT PANEL POWER VOLUME / EQ /LOUD MUTE AUX IN MINI USB PORT REMOTE BAND PLAY / PAUSE F. REV 10 F. FWD 11 PREV 12 NEXT 13 STOP 14 REL 15 EJECT 16 RESET 17 ANGLE +/ END CALL...
  • Page 17 BMTV-9980DVUSBT When ACC is on, press to turn the unit on; hold on pressing the 1. Power button to turn off the unit. When the unit is on, press to switch between different modes. Rotate the button clockwise / anticlockwise to increase / decrease 2.
  • Page 18 BMTV-9980DVUSBT settings. Keep in mind this will erase all your preset radio stations and any EQ settings you may have made and saved. Adjust the view angle of the monitor to choose the best displaying 17. / 18. ANGLE +/END effect.
  • Page 19 BMTV-9980DVUSBT Press the [OPEN] Shut down the Halt Self-protection button ACC and restart While extending Retraction Extending Retraction Stop at the halt place While retraction and retract after 3 Extending Retraction seconds While turning Turning downward and Turning downward Extending...

  • Page 20: Remote Control

    BMTV-9980DVUSBT REMOTE CONTROL POWER/SOURCE 13 PREVIOUS 25 SYSTEM / NAVI MUTE 14 SLOW / END CALL 26 F. FWD NUMBER BUTTONS 15 TITLE / PBN 27 RIGHT (SEEK UP) MENU / * 16 ZOOM / CALL 28 STOP AUDIO / # 17 SUBTITLE / PBP 29 D.
  • Page 21 BMTV-9980DVUSBT When ACC is on, press the button to turn the unit on; hold 1. [POWER/SOURCE] on pressing the button to turn off the unit. When the unit is on, press to switch between different modes. Press to switch off the sound; press again to resume to the 2.
  • Page 22 BMTV-9980DVUSBT DVD Mode, press to confirm the selection. 9. [BAND/ENTER] Radio Mode, press to switch the wave band as following: FM1 – FM2 - FM3 - AM1- AM2 - FM1 ISDB-T Digital TV Mode, Press to switch the TV audio as following under ISDB-T...
  • Page 23 BMTV-9980DVUSBT When unit power off, press the button to turn unit on and 18. [OPEN/ the monitor will spread out and turn around to the last CLOSE/ angle position. P.ANGLE/ When unit power on, press the button, the monitor will EJECT] spread out and turn around to the last angle position;...
  • Page 24 BMTV-9980DVUSBT interactive DVD media during playback. DVD Mode, press to pause or resume the playback. 30. [PLAY/PAUSE] ISDB-T Digital TV Mode, press to open/close display subtitle. DVD Mode, press to set point A, press it again to set point 32. [A-B/PHONE B, then the unit starts to repeat from A to B.

  • Page 25: Touch Screen Operations

    BMTV-9980DVUSBT TOUCH SCREEN OPERATIONS TOUCH SCREEN CALIBRATION When “Power Off”, press the buttons 2, [BAND] of remote control to enter the CALIBRATION page: To touch the points from 1 to 5 until the points change to next cross by using a ballpoint pen or pencil.

  • Page 26: Main Menu

    BMTV-9980DVUSBT MAIN MENU 1. Touch to access the DVD mode. 2. Touch to access the RADIO mode. 3. Touch to access the NAVIGATION mode. 4. Touch to access the i-POD mode. 5. Touch to access the ISDB-T mode. 6. Touch to access the SD CARD mode.

  • Page 27: Radio Operations

    BMTV-9980DVUSBT RADIO OPERATIONS Touch the [RADIO] icon to access to Radio Mode. Touch to return the main menu. 1. Menu Touch to switch off the sound; touch it again to resume to the 2. Mute previous volume level Touch to select a preset station, hold on touching to store 3.

  • Page 28: Dvd Player Operations

    BMTV-9980DVUSBT DVD PLAYER OPERATIONS 1. Touch the [DVD] icon to access to DVD Mode if disc inside. 2. The unit will be switched to DVD Mode automatically when inserting the disc. 3. The unit will switch to RADIO Mode automatically if disc ejected.
  • Page 29 BMTV-9980DVUSBT Touch to capture the current playing image and store into 1. Capture Image memory for background or screen saver. Touch to display the current playback information on the 3. Display screen. Touch to repeat as CHAPTER-TITLE-ALL-REPEAT OFF 4. Repeat when DVD playback.
  • Page 30 BMTV-9980DVUSBT Touch to go to the menu of disc when playing DVD disc. 6. Menu Touch to access the 1 page of DVD menu. 7. Switch Touch to access the DVD SETUP menu. 2. Setup Touch the [<] / [>] icons to switch the main menus as following: General –SPEAKER–DOLBY DIGITAL –PREFERENCE –...
  • Page 31 BMTV-9980DVUSBT GENERAL SETUP PAGE Following options are available for the TV Display: Normal / PS Normal / LB Wide DISPLAY Select ON or OFF ANGLE MARK ENGLISH FRENCH GERMAN SPANISH DUTCH LANGUAGE NORWEGIAN SWEDISH DANISH ITALIAN PORTUGUESE HUNGARIAN RUSSIAN POLISH...
  • Page 32 BMTV-9980DVUSBT SPEAKER SETUP PAGE Following options are available for the Downmix: DOWNMIX LT / RT Stereo DOLBY DIGITAL SETUP Following options are available for the Dynamic: FULL 6/8 OFF. DYNAMIC - 31 -...
  • Page 33 BMTV-9980DVUSBT PREFERENCE PAGE AUDIO LANGUAGE Following options are available for the AUDIO LANGUAGE: ENGLISH FRENCH GERMAN SPANISH DUTCH NORWEGIAN SWEDISH DANISH ITALIAN PORTUGUESE HUNGARIAN RUSSIAN POLISH SUBTITLE LANGUAGE Following options are available for the SUBTITLE LANGUAGE: ENGLISH FRENCH GERMAN SPANISH...

  • Page 34: Bluetooth Operations

    BMTV-9980DVUSBT BLUETOOTH OPERATIONS Touch the [BLUETOOTH] icon to access the Bluetooth Mode: Touch to return the main menu. 1. Menu Touch to switch off the sound; touch it again to resume to the 2. Mute previous volume level Touch to enter the phone calling.
  • Page 35 BMTV-9980DVUSBT Then set the phone to pair with unit. When paring finished, set the phone connect with unit, then you can see the phone name on information display. Touch the icon again to cancel the pairing and the below words on information display: Touch the icon and see the below words on information 4.
  • Page 36 BMTV-9980DVUSBT PHONE CALL Touch to call a number or receive a cell phone call. Touch to 1. Call call the last number if no number input. Touch to cancel or clear the numbers you have input. 2. Clear Touch to reject or hang up a call.
  • Page 37 BMTV-9980DVUSBT When end the call, you will see the below image: PHONEBOOK The phone numbers are stored in phone. 1. My Phonebook The phone numbers are stored in SIM card. 2. SIM Phonebook The phone numbers are dialled in phone.
  • Page 38 BMTV-9980DVUSBT Phone Number List Touch the icon 1~5, when item is changed to yellow color, the item is selected. And touch it again and the item is changed to green color, the operation is active and you will see the below image: 1.

  • Page 39: Ipod Operations

    BMTV-9980DVUSBT IPOD OPERATIONS 1. Touch the [IPOD] icon to switch IPOD Mode if iPod is connected. 2. The unit will switch to IPOD Mode automatically if iPod is connected. 3. The unit will switch to RADIO Mode automatically if iPod is disconnected.
  • Page 40 BMTV-9980DVUSBT Video Page Under the Video Page, use the controller of iPod itself to control all operations of iPod including play music, videos and view pictures. Touch to return the main menu. 1. Menu Touch to switch off the sound; touch it again to resume to the 2.

  • Page 41: Sd Card Operations

    BMTV-9980DVUSBT SD CARD OPERATIONS Touch the [SD CARD] icon to access to SD CARD Mode if SD / MMC Card inserted. The unit will switch to SD CARD Mode automatically if SD / MMC Card connected. When SD / MMC Card disconnected, the unit will switch to RADIO Mode automatically if there is no disc in the unit;...

  • Page 42: Av In Operations

    BMTV-9980DVUSBT AV IN OPERATIONS Touch the icon “AV IN” to enter the AV IN Mode: Touch to return the main menu. 1. Menu Touch to switch off the sound; touch it again to resume to the 2. Mute previous volume level There are 2 RCA Audio Inputs &...

  • Page 43: Isdb-T Operations

    BMTV-9980DVUSBT ISDB-T DIGITAL TV OPERATIONS Touch the icon “ISDB” to enter the ISDB-T Digital TV Mode: Touch to return the main menu. 1. Menu Touch to switch off the sound; touch it again to resume to 2. Mute the previous volume level After the Auto Station Tune, touch to select the stations 3.
  • Page 44 BMTV-9980DVUSBT Scan operations Press the button RDM on remote control or touch the SCAN button on first page of ISDB mode to seek channels Display the channel number of current scan Display the number of current received channels Display current seeking status...
  • Page 45 BMTV-9980DVUSBT Digital TV system setup Press BAND button on remote control or touch the ENTER button on touch screen to switch the TV system between PALM /NTSC Adjust the screen display Press [∨] down button then press the BAND on remote control or touch CH- button then touch ENTER button on touch screen to get into screen display setup page.
  • Page 46 BMTV-9980DVUSBT Adjust the contrast Press [∨] down button on remote control or touch screen to move the cursor on on contrast,then to adjust contrast by pressing the button [<] / [>] on remote control or touch -/+ on touch screen Adjust the saturation Press [∨] down button on remote control or touch screen to move the cursor...
  • Page 47 BMTV-9980DVUSBT Selecting audio mode（AUDIO） Press AUDIO button on remote control to switch the audio mode as below: Secundario-Principal+Secundario-Mudo-Principal-Secundario (Cycle) Adjust Volume Press the button [<] / [>] on remote control or touch -/+ on touch screen to adjust the volume...
  • Page 48 BMTV-9980DVUSBT Selecting Channel Press the button [∧]/[∨] on remote control or touch CH-/CH+ on touch screen to select broadcasting channel OSD Display During normal playback if there is no OSD display press BAND button on remote control or touch ENTER button on touch screen to display the...
  • Page 49 BMTV-9980DVUSBT Display the name of the channel Display the number of current received channels Display program information Press the button F.FWM on remote control to display broadcasting channel and Press the button [∧]/[∨] on remote control or touch CH-/CH+ on information，...

  • Page 50: Navigation Operations

    BMTV-9980DVUSBT NAVI OPERATIONS (Optional) Touch the [NAVI] icon to enter the Navigation mode. 1. Menu Touch to return the main menu. 2. Mute Touch to switch off the sound; touch it again to resume to the previous volume level. Note: The unit is equipped with Navigation adapter &...

  • Page 51: System Parameters Setup

    BMTV-9980DVUSBT GPS NAVIGATION BOX CONNECTION To connect the GPS BOX to head unit as below diagram: GPS NAVIGATION BOX Head Unit GPS CONNECTION WIRE NAVIGATION ROUTING SELECTION You may get into navigation routing selection as below Method 1 After the GPSBOX and head unit is well connected and powered on, take out...
  • Page 52 BMTV-9980DVUSBT Under navigation working mode, press the EXIT button on navigation menu of the map. 1. Browse Touch to select navigation routing, If there is only one map contained in the map SD card, It will get into navigation automatically. If there is more than one map contained in the map SD card you have to select the map executive file of the map which you want to use such as :/SDMMC/iGO08/iGO08.exe...
  • Page 53 BMTV-9980DVUSBT After all 5 points have been pressed and press on any place of TFT screen to switch to navigation mode, the unit has been finished the navigation mode CALIBRATION. If you want to use the GPS BOX to equip with a different size TFT head unit, you have to perform a touch screen calibration before usage.
  • Page 54 BMTV-9980DVUSBT Navigation Port number setting If you have a problem of receiving signal, Please set up the port number as below steps: Tapping the button of ‘settings ’to get into below page, Tapping the button of “GPS” to get into below page, Tapping to select the port number at “2”...
  • Page 55 BMTV-9980DVUSBT SYSTEM PARAMETERS SETUP Touch the [SYSTEM] icon to enter the System Parameters Setup. SCREEN SETUP Touch [UP] / [DOWN] icons to adjust the CONTRAST 1. Contrast parameters (Range: -9 to 9); Touch [UP] / [DOWN] icons to adjust the TINT parameters 2.

  • Page 56: Specifications

    BMTV-9980DVUSBT SOUND SETUP Touch [UP] / [DOWN] icons to adjust the TREBLE 1. Treble parameters (Range: -9 to 9); Touch [UP] / [DOWN] icons to adjust the BASS parameters 2. Bass (Range: -9 to 9); Touch [LEFT] / [RIGHT] icons to adjust the BALANCE 3.
  • Page 57 BMTV-9980DVUSBT CLOCK SETUP Touch [UP] / [DOWN] icons to adjust the HOUR; 1. Hour Touch [UP] / [DOWN] icons to adjust the MINUTE; 2. Minute Touch to switch the time mode between 12-Hour and 24- 3. Time Mode Hour; Displays the time currently.
  • Page 58 BMTV-9980DVUSBT SAVER SETUP Touch [UP] / [DOWN] icons to select the image captured 1. Source Images List from DVD, SD card and USB. Touch [UP] / [DOWN] icons to select the image of screen 2. Screen Saver saver. Images List Touch to set the selected image of source images list as 3.
  • Page 59 BMTV-9980DVUSBT SYSTEM SETUP Touch [LEFT] / [RIGHT] icons to switch the Radio Area as 1. RADIO AREA following: USA – JAPAN – ORIT – EUROPE – ASIA – USA Touch [LEFT] / [RIGHT] icons to switch the GUI to Lightblue 2.GUI...
  • Page 60 BMTV-9980DVUSBT SPECIFICATIONS GENERAL 14.4V DC (11-16V allowed) Supply Voltage 4Ω per channel Load Impedance 50W x 4 Max Power Output ≥ 10dB Bass 100Hz ≥ 10dB Treble 10KHz 180 x 188 x 59 mm (d/w/h) Dimensions (approx.) 160 x 178 x 50 mm (d/w/h) Mounting (approx.)

  • Page 61: Troubleshooting

    BMTV-9980DVUSBT TROUBLE SHOOTING If any of problem persists after checking the below list, Please consult your nearest service dealer. Never attempt to disassemble and repair unit personally. Problem Cause Action GENERAL Yellow wire not connected or incorrect Check connections for proper...
  • Page 62 BMTV-9980DVUSBT Problem Cause Action TFT MONITOR No video display Reverse circuit not connected Check connections at reverse lamp (when in Vehicle is not in reverse Select reverse gear reverse) Front panel will Remove the obstruct and press Front panel obstructed...

  • Page 63: Disc Notes

    BMTV-9980DVUSBT DISC NOTES ■ Disc formats supported by this player Handling and Cleaning ● Dirty, dusty, scratched or warped discs will cause misoperation. ● Do not place stickers or make scratches on discs. ● Do not warp discs. ● A disc should always be kept in its case when not in use to prevent from damage.
  • Page 64 BMTV-9980DVUSBT For Default Setting · 45 seconds for CD recorded at 44.1 KHZ, 128kbps · 70 seconds for MP3 recorded at 44.1 KHZ,128kbps · 120 seconds for WMA recorded at 44.KHZ,128kbps Bit Rates The unit supports bit rates up to 64kbps Note : Some files may not play or be displayed correctly depending on sampling rates &...
