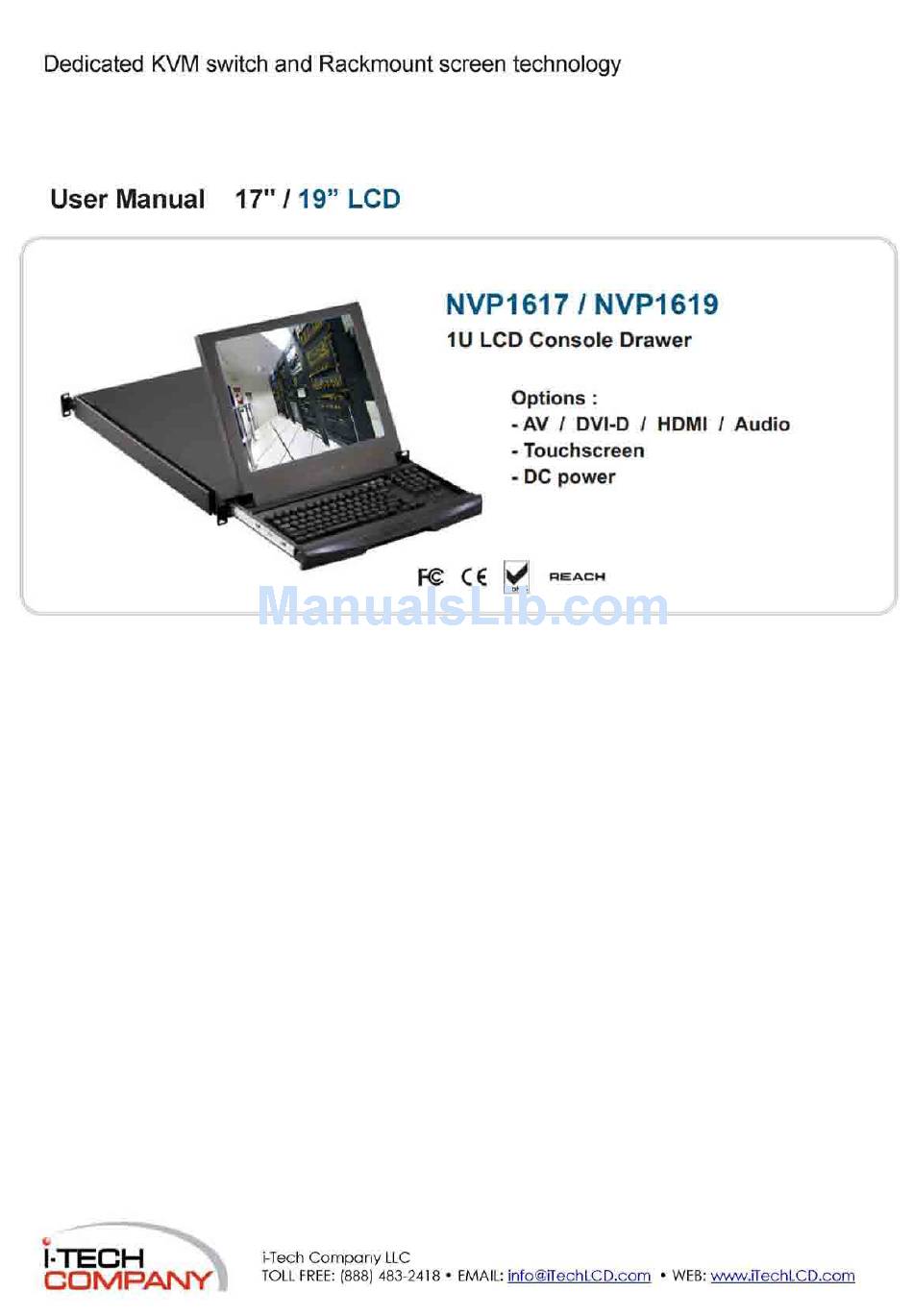

Page 1: User Manual
Dedicated KVM switch and Rackmount screen technology User Manual 17" / 19” LCD i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com... - Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NVP1617/NVP1619 Package Content Structure Diagram & Dimension Installation P. 3 Connection < Part. 2 > Specifications / O S D Product Specifications Keyboard / Mouse Specifications On-screen Display Operation ( O S D ) < Part. 3 >... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Package Content
< Part 1 > < 1.1 > Package Content NVP1617orNVP1619unit X 1 - NE-6 6ft Combo KVM cable X 1 - Power adapter & Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as HDMI, DVI-D, AV, audio, touchscreen &... - Page 6 (W x D x H) (W x D x H) Weight Weight 12 kg 441.6x700x44 mm 595 x910 x140 mm 16.5 kg NVP1617 series 23.4x35.8x5.5" 26 lb 36 lb 17.4x27.6x1.73" 13 kg 441.6x700x44 mm 595 x910 x140 mm 17.5 kg NVP1619 series 23.4x35.8x5.5"...
-
Page 7: Installation
nstall Installation Slides Step O Insert the left and right rear mounting brackets into the LCD console drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■... -
Page 8: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer « ^ KVM <£H> NE-6 Combo NE-6 Combo KVM cable KVM cable USB server PS/2 server lHJ^gTTT; JSHQ] < ^ w^urr ^ S ! wm @© <... -
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications NVP1617 NVP1619 Manufacturer Panel Size ( diagonal) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280x1024 1280x1024 Brightness (typ. ) Contrast Ratio (typ. ) - Page 10 -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random NVP1617 NVP1619 Product ( W x D x H ) 441.6x700x44 mm 441.6x700x44 mm 17.4x27.6x1.73 inch 17.4x27.6x1.73 inch Packing ( W x D x H )
-
Page 11: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications Compact keyboard integrated with touchpad ■M ' :J:: ' ■ ~ \ !=« = ■2 U PgDnl CZIIZZI I d I Compact keyboard integrated with trackball " Pgllf 15 t f BanDQQQDHQQ^ |2 rf PgDn Key force 9 0 ±... -
Page 12: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <... - Page 13 < 2.3 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User I ^ ^ M Green Blue Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 14 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Either HDMI or DVI-D can be selected.
-
Page 15: Options : Touchscreen & Driver
< 3.2 > Options : Touchscreen & driver 17" /19" USB Touchscreen Specification 19" 17" 19" Model Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive e-Capacitive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology... - Page 16 DC power n_n_r O © 0 O L n j - L * * * Option excludes 1 x power cord and 1 x AC power adapter i-Tech Company LLC l-TECH TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com COMPANY P.12...
