Summary of Contents for I-Tech NPW119

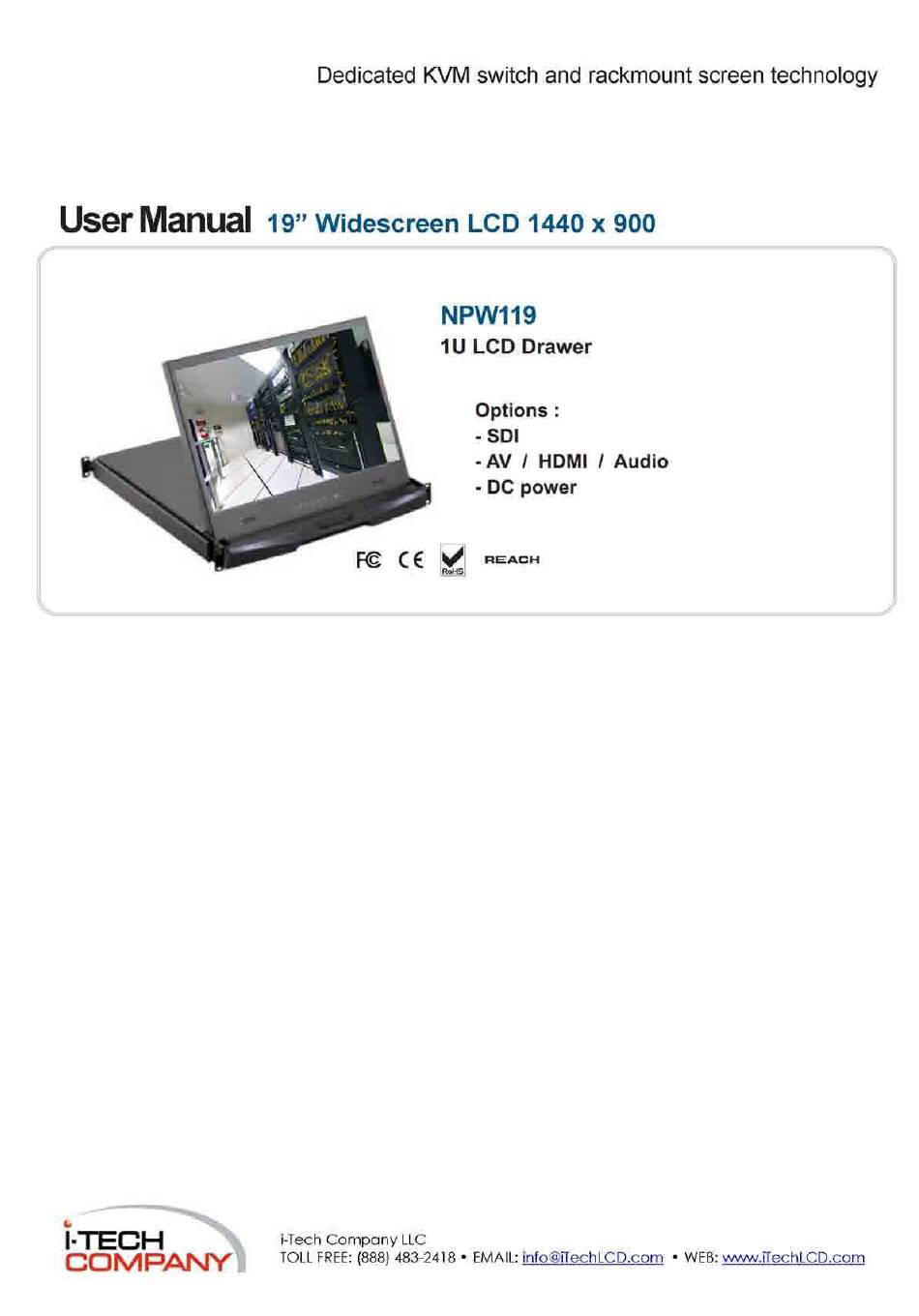

- Page 1 19” Widescreen LCD 1440 x 900 NPW119 1U LCD Drawer Options -SDI -AV / HDMI / Audio - DC power R E A C H I-TE^JH"I i-Tech Company LLC C^DN^RA^TY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NPW119 Package Content P. 1 Structure Diagram & Dimension Installation < Part. 2 > Specifications / OSD Product Specifications On-screen Display Operation (OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input HDMI, S-Video + BNC &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Npw119
< Part 1 > < 1.1 > Package Content NPW119 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 6 Weight Weight 441.6x460x44 mm 588 x 758 x 120 mm 13 kg 17 kg NPW119 17.4x18.1 X1.73" 23.1 x 29.8x4.7" 28.6 lb 37.4 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, AV, audio & DC power.
-
Page 7: Installation
nstall Installation Slides Step O Insert the left and right rear mounting bracket into the display drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■... -
Page 8: Product Specifications
< Part 2 > < 2.1 > Product Specifications j ^ f l fffy Manufacturer Panel Size ( diagonal) 19-inch Widescreen TFT color LCD 1440x900 Display pixel ( dots x lines ) Brightness (typ. ) Contrast Ratio (typ. ) 1000:1 16.7 M Color 80/80/80/80... - Page 9 Environmental Operating Temperature 0 to 50°C degree Conditions 20-90%, non-condensing Humidity Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) Physical 441.6x460x44 mm Specification 17.4x18.1 x 1.73 inch Packing ( W x D x H )
-
Page 10: On-Screen Display Operation (Osd )
< 2.2 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User I ^ ^ M Green Blue Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCDs' provides a...
- Page 13 < 3.2 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) ( 1 ) Either HDMI or DVI-D can be selected. ( 2 ) For the above options, casing depth will be extended from 460mm (18.1"...
- Page 14 < 3.3 > Options : DC Power Model Input rating 24-Volt 48-Volt Input voltage: 12-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
- Page 15 I-TECH i-Tech Company LLC C O M P A N V TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
