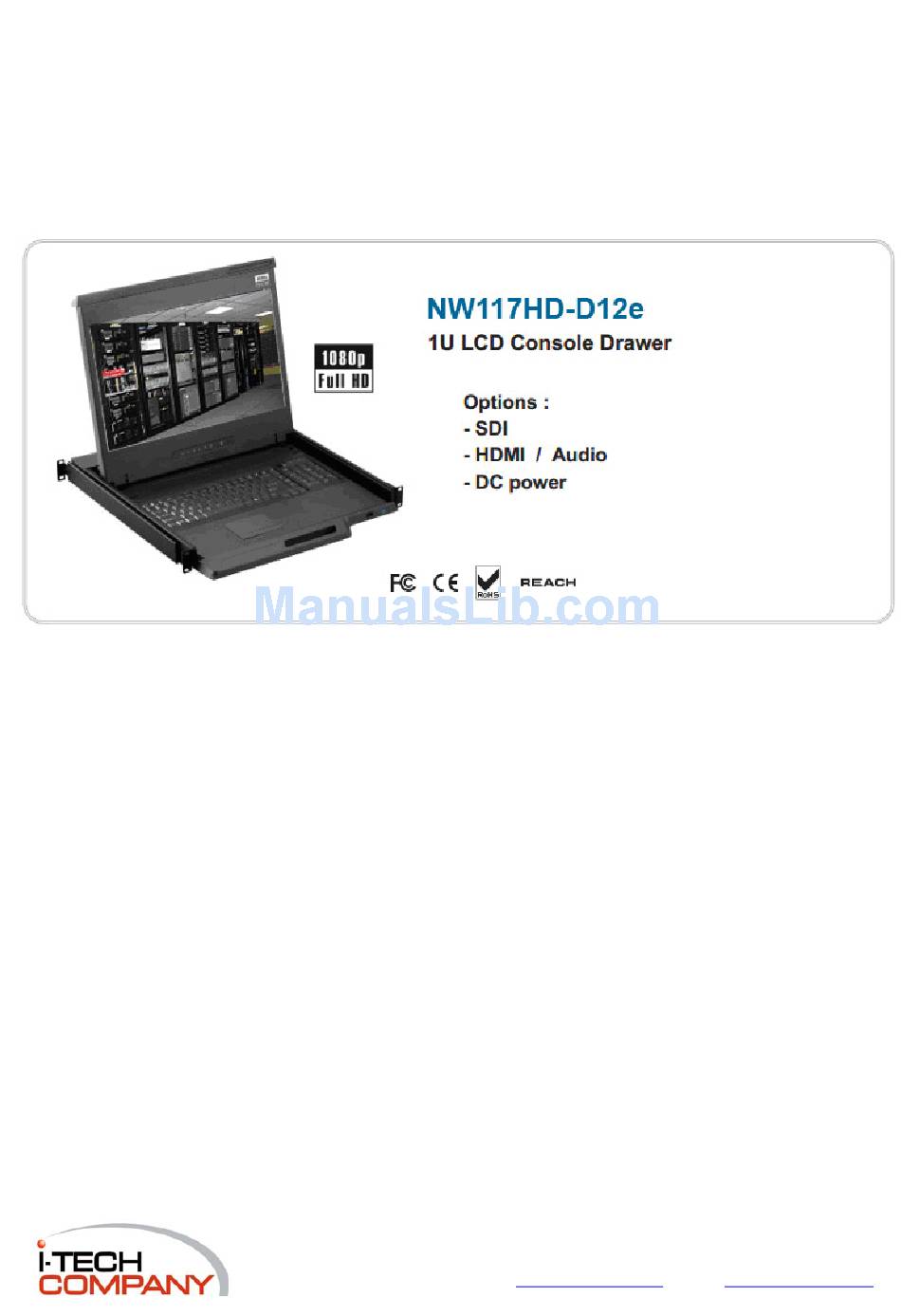

- Page 1 Dedicated KVM switch and Rackmount screen technology User Manual 17” FHD 1080p LCD i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NW117HDe Package Content P. 1 Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifications / OSD Product Specifications P.8 - 9 Keyboard / Mouse Specifications P.10 - 12 On-screen Display Operation ( OSD ) P.13 - 14... - Page 4 Contents < Part. 4 > KVM Integration Local Remote 8-port 16-port 32-port - M218 - M2116 Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM - M018 - M0116 - M028 - M0216 - M038 - M0316...
-
Page 5: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 6: Part. 1 > Nw117Hde
< Part 1 > < 1.1 > Package Content NW117HDe CV-6 6ft DVI-D console cable X 1 (Alternative : NB-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 < 1.2 > Dimension Front View 441.6 1 9 " R a c k m o u n t UNIT: mm Side View 1mm = 0.03937 inch OOQ. r r g f B $ 50.1 4 8 0 Top View «—<...
-
Page 8: Installation
nstall Installation Slides Step Insert the left and right rear mounting brackets into the LCD console drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■... - Page 9 < 1.3 > Installation - How to install 2 post rack brackets Step Release front mounting ears before applying 2 post rack brackets. Insert rear mounting brackets into the LCD console drawer. Step ■ Align each rear mounting bracket to a suitable length. Rear mounting Front mounting Step...
- Page 10 < 1.3 > Installation- How t o use the drawer " 1 Hold the handle and slide out the drawer. ■^'■i':':'-:V: Flip up the LCD to a suitable angle. ; : : : • ; • ; ; : • : • : : : : : • : • ■ • : : • : !:!:•:;:•:•*;::*: Operate the LCD console drawer.
-
Page 11: Connection
< 1.4 > Connection to USB Server via CV-6 cable LCD Console Drawer Power DVI-D KVM CV-6 DVI-D console cable DVI-D USB server wcBrrr < 1.4 > Connection to external KVM via CV-6 cable LCD Console Drawer DVI-D KVM Power sans <3S»... - Page 12 < 1.4 > Connection to USB Server via NB-6 cable LCD Console Drawer DVI-D KVM •CM'. ,:..- NB-6 VGA console cable USB f? USB server < 1.4 > Connection to external KVM via NB-6 cable LCD Console Drawer DVl-D KVM NB-6 VGA console cable USB console KVM...
-
Page 13: Product Specifications
< Part 2 > < 2.1 > Product Specifications 17.3-inch Widescreen TFT color LCD | Panel Size ( diagonal) 1920x1080 | Display pixel ( dots x lines ) | Brightness (typ. ) | Contrast Ratio (typ. ) 600:1 Color 16.7 M, 8-bit I Viewing Angle ( L/R/U/D ) 80/80/60/80 | Response Time ( ms ) - Page 14 Temperature 0 to 50"C degree Operating Operating Environmental Environmental Environmental Environmental Environmental Environmental Conditions Conditions Conditions Conditions Conditions Conditions 20-90%. non-condensing Humidity Storage Storage Storage Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) Physical...
-
Page 15: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55±5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America... -
Page 16: Keyboard Features
< 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use " M A C " Keyboard Keyboard Features Fast-forward Decrease display brightness > Increase display brightness Mute sound Mission control * Only works with OS X Lion... - Page 17 < 2.2 > SUN Keyboard Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball 33BB1 « n S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop. Cut, Paste, Compose. Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■...
-
Page 18: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) ^^^^^^^^ Membrane Switch Function Turn the monitor on or off OCZI Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust A V <... - Page 19 < 2.3 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User I ^ ^ M Green I^^^^M Blue I ^ ^ M Adjust: < E»it:t Select:** Set: « / i i OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue t±3...
- Page 20 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCD's SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Netview Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD's provides a SDI input module without using additional space or power and it...
-
Page 21: Part. 3 > Options
< 3.2 > Options : - H D M I (HDMI 1.1, CEA-861-D) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers For audio option, casing depth will be changed from 480mm (18.9" ) to 530mm ( 20.9" HDMI DVI-D Power... - Page 22 < 3.3 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 - 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
- Page 23 DVI-D Model NVD1201 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.
-
Page 24: Part. 4 > Dvi-D Kvm Nvd1201
Part 1. DVI-D KVM DVI-D KVM < 1.1 > Package Contents IP console, remote console, daisy-chain and OSD menu are NOT available for this model. P.18... - Page 25 < 1.2 > KVM port connection DVI-D KVM DVI KVM Cable NC-6: 6 feet DVI KVM cable NC-15: 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) P.19...
-
Page 26: Kvm Port Connection
< 1.3 > Specifications DVI-D KVM NVD1201 ■ KVM Port Number of ports: Connector: DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) ■ Connectivity: Combo 4-in-1 KVM cable, 6 or 15 feet Local Console Graphic connector: 1 x DVI-D Resolution: Up to 1920 x 1200... -
Page 27: Kvm Hotkey
2.2 KVM Hotkey DVI-D KVM Usage Hotkey Label P. 22... -
Page 28: Dc Power 12V, 24V, 48V Input
2.3 DC Power 12V, 24V, 48V Input DVI-D KVM Usage P. 23... - Page 29 Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
