- Page 1 Twist ’N Edge INSTRUCTION MANUAL IMPORTANT INFORMATION : Please read these instructions carefully and make sure you understand them before using this unit. Retain these instructions for future reference. 545123529 12/15/06...
-
Page 2: Identification Of Symbols

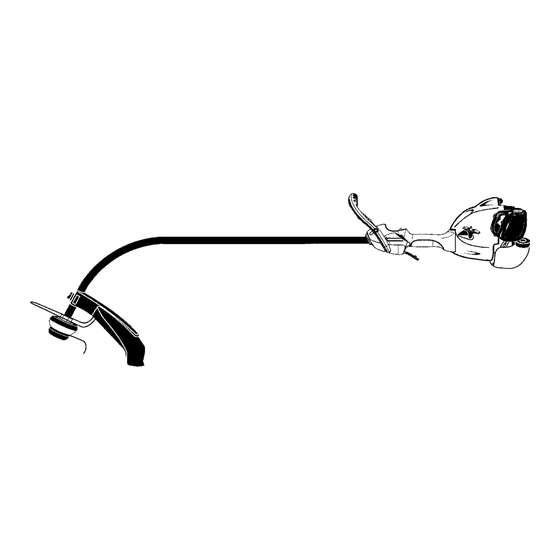

IDENTIFICATION (WHAT IS WHAT?) Assist handle Muffler Shaft Edge Guide Throttle trigger Primer bulb Manual Shield Choke lever Trimmer Fuel tank ON/STOP Head Switch Wrench Starter handle IDENTIFICATION OF SYMBOLS WARNING! This trimmer can be dangerous! Careless or improper use can cause serious or even fatal injury. -
Page 3: Safety Rules
S Maintain unit according to recommended procedures. Keep cutting line at proper length. S Use only 2 mm diameter McCulloch® WARNING: Trimmer line throws ob- brand line. Never use wire, rope, string, etc. -
Page 4: Special Notice
CUTTING SAFETY S Store unit and fuel in an area where fuel va- pors cannot reach sparks or open flames WARNING: from water heaters, electric motors or Inspect the area before switches, furnaces, etc. each use. Remove objects (rocks, broken S Store unit so line limiter cannot accidentally glass, nails, wire, etc.) which can be thrown cause injury. -
Page 5: Operation
OPERATION 4. Move choke lever to FULL CHOKE posi- WARNING: tion. Be sure to read the fuel 5. Squeeze and hold trigger through all re- information in the safety rules before you be- maining steps. gin. If you do not understand the safety rules, do not attempt to fuel your unit. -
Page 6: Starting A Flooded Engine
3. Squeeze and hold the throttle trigger. Keep throttle trigger fully squeezed until the engine runs smoothly. 4. Pull starter rope sharply until engine runs, but no more than 5 pulls. 5. Allow engine to run 15 seconds, then move the choke lever to the RUN position. -
Page 7: Maintenance
TRIMMING - - Hold the bottom of the trimmer Mowing head about 8 cm above the ground and at an angle. Allow only the tip of the line to make con- tact. Do not force trimmer line into work area. Trimming SWEEPING - - The fanning action of the rotat- ing line can be used for a quick and easy... -
Page 8: Service And Adjustments
Air Filter Cover SERVICE AND ADJUSTMENTS REPLACING THE LINE 1. Cut a length of 8 meters of 2 mm diameter round McCulloch® brand line. Pre- -wound spools offer the most convenient method for replacing line and ensuring opti- mum performance. -
Page 9: Carburetor Adjustment
CARBURETOR ADJUSTMENT S Turn idle speed screw clockwise to in- crease engine speed if engine stalls or dies. WARNING: S Turn idle speed screw counterclockwise to Keep others away when decrease engine speed. making idle speed adjustments. The trimmer head will be spinning during this procedure. Idle Speed Screw Wear your protective equipment and observe all safety precautions. -
Page 10: Troubleshooting Table
TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE REMEDY Engine will not 1. ON/STOP switch in 1. Move ON/STOP switch to STOP start. -
Page 11: Declaration Of Conformity
EC Declaration of Conformity (Only applies to Europe) We, Husqvarna Outdoor Products Italia, S.p.A., Valmadrera, Italy. Tel: +39- -0341- -203211, declare that the grass trimmer model McCulloch Twist ’N Edge from serial numbers 2006- -041N00001 and onwards, comply with the requirements of the COUNCIL’S DIRECTIVES: of 22 June 1998 “relating to machinery”... -
Page 12: Technical Data Sheet
TECHNICAL DATA SHEET ODEL: Twist ’N Edge ENGINE Displacement, cm Maximum engine power, measured in accordance with ISO 8893, kW ENGINE ROTATIONAL SPEEDS At maximum engine power, rpm 8000 Maximum rotational frequency of the spindle, rpm 10000 Engine speed at recommended maximum spindle rotational frequency, rpm 7400 Recommended speed idling, rpm 4000... - Page 13 Husqvarna Outdoor Products Italia S.p.A. Via Como 72 Valmadrera, Lecco ITALY I- -23868 Visit our website at www.mcculloch- - europe.com...
