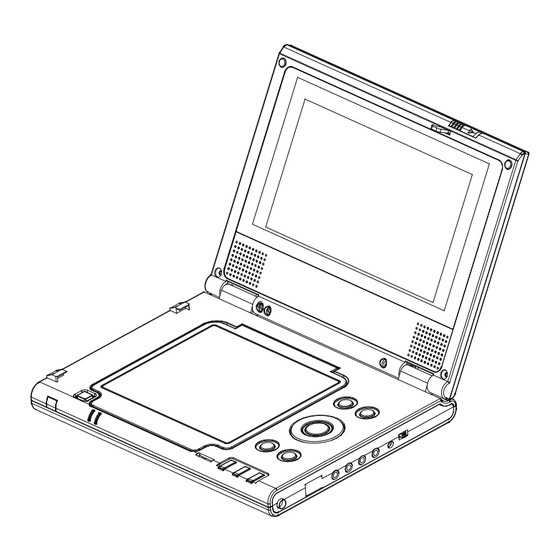

Page 1: Portable Dvd Player
PORTABLE DVD PLAYER Instruction Manual Model TC2620DVD Please read these instructions carefully and retain for future reference. -
Page 2: Symbols
Help line For assistance during normal working hours (9am-5pm, Mon-Fri, New Zealand local time) call Oriental Pacific International Ltd. NZ call: 0800 89 85 80 Email: service@orientalpacific.com SYMBOLS The graphic symbols used in this manual or on the back cover of the set mean the following: Read this manual in full before use. - Page 3 CAUTION! This is a class 1 laser product. However this player uses a visible laser beam which could cause hazardous radiation exposure if directed. Be sure to operate the equipment as directed. Do not place eyes close to any openings when connected to the mains supply. WARNING! Do not remove any cover.
-
Page 4: Table Of Contents
Tables of contents SYMBOLS Program play IMPORTANT SAFEGUARDS Repeat play Features A-B Repeat play Definition of DVD terms Changing Subtitle language (DVD Only) DVD player overview ZOOM play Remote control function Changing audio soundtrack language Remote Control Preparation (DVD /VCD disc) System Connection Viewing from different angles (DVD only) Using the built-in battery or AC adapter... -
Page 5: Features
Dear Customers May we take this opportunity to thank you for purchasing this Portable DVD Player. We strongly recommend that you carefully study the Operating Instructions before attempting to operate the player and that you note the listed precaution. Features GRAPHICAL USER INTERFACE SCREEN HIGH QUALITY SOUND AND PICTURE Simply by pressing the “OSD”... -
Page 6: Definition Of Dvd Terms
Definition of DVD terms DVD player is very popular audiovisual product due to its high quality pictures and sound. However, each disc has its own features and symbols to indicate its Multi Audio language features. For example: DTS audio effect is different The audio soundtrack can be heard in up to 8 from stereo audio effect. -
Page 7: Dvd Player Overview
DVD player overview TFT display screen Latch Remote sensor OPEN button Charge indicator Power Indicator CD door SET UP button ENTER button STOP button VOL+/- button Navigation (Left) SKIP /SEARCH SKIP /SEARCH SETUP ENTER STOP OPEN/ CLOSE REMOTE Navigation (Up) POWER 3 4 5 6 8 9 10... -
Page 8: Remote Control Function
Remote control function (In alphabetical order) Numeric buttons (1-9, 0, 10+)—Input track numbers. Press the “10+” button first if you want to input numbers more than ten. For example: to input track 13, press the “10+” button first and then the “3” button. To input track 20, press the “10+” button twice and then the “0”... -
Page 9: Remote Control Preparation
Remote control unit preparation Battery installation Insert the batteries while observing the correct (+) and (-) polarities as illustrated at right. Service life of batteries The batteries normally last for about one year although this depends on how often, and for what operations, the remote control unit is used. -
Page 10: System Connection
System connection Before connecting, make sure to turn off the power of all apparatus. Connect the player’s analog output jacks to your TV’S input jacks. Insert the plugs fully into the jacks. Loose connection may produce intermittent problems. Note: This picture is only for your reference; all the functions should be based on the real unit machine. INPUT HP-OUT AV OUT... -
Page 11: Using The Built-In Battery Or Ac Adapter
- t l There is a built-in rechargeable battery in the player. You can operate your player by it. If the low power symbols flashes in Press “STOP ” the display, or the display screen is blank when the Power For your convenience: switch is in “on”... -
Page 12: Slow-Motion Play (Dvd)
On the remote control unit When playing VCD2.0/3.0 with PBC, use PBC button the player Press the “SLOW” button during playback. will show Play the disc at a 1/2 of normal speed at first, Each time the button is pressed, the play speed becomes slower (1/2, 1/3, 1/4, 1/5, 1/6, 1/7). -
Page 13: On Screen Display Information
On Screen Display information Examples: Track 3, press “3” When the player is under operation, press the “OSD” button Track 12, press “10+” then “2” continuously on the remote control, the screen will display Track 21, press “10+” twice then “1” sequent parts of information, all information and clear information. -
Page 14: Changing Subtitle Language (Dvd Only)
t i t Kodak Picture CD/JPEG CD It is possible to change the subtitle language to a different If Kodak Picture CD is inserted, slide show begins language from the one selected at the initial settings. (This automatically. operation works only with discs on which multiple subtitle languages are recorded.) For JPEG picture CD, select the folder you want to play 1. -
Page 15: System Setup
Initial Settings Once the initial programming is entered it is stored in memory until changed, the player can always be operated under the same conditions. The settings will be retained in the memory until the settings are changed even after setting the player to the standby mode. Common procedure for initial settings 1. -
Page 16: Language Setup
2. LANGUAGE SETUP OSD LANG AUDIO LANG SUBTITLE LANG MENU LANG EXIT SETUP 2.1 OSD LANG- to select the ON-SCREEN DISPLAY language. English is the defaulted language in the factory default. 2.2 AUDIO LANG- to select the preferred Audio language. English is the defaulted language in the factory default. 2.3 SUBTITLE LANG- to select the preferred Subtitle language. -
Page 17: Definitions Of Terms
Definition of terms Specifications Angle Some DVD discs are recorded onto scenes which have been simultaneously shot from a number of different angles (the same Power scene is shot from the front, from the left side, from the fight side, Requirements: AC110~240V-DC IN 12V etc.). -
Page 18: Troubleshooting
Troubleshooting Before requesting service for this player, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or adjustments on your part may eliminate the problem and restore proper operation. Play fails to start even when “PLAY” is Condensation has formed: wait about 1 to 2 hours to allow the player to dry out. -
Page 19: Disc Handling And Maintenance
Disc handling and maintenance Handling precautions Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints, dirt and scratches can cause skipping and distortion. Do not write on the label side with a ballpoint pen or other writing utensils. Do not use record cleaning sprays, benzene, thinner, static electricity prevention liquids or bend the disc. -
Page 20: Warranty
Warranty Card This product is guaranteed against faulty materials and workmanship for a period of twelve months from the date of purchase with proof of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts or refund when the product is returned freight prepaid to the retailer with proof of purchase.
