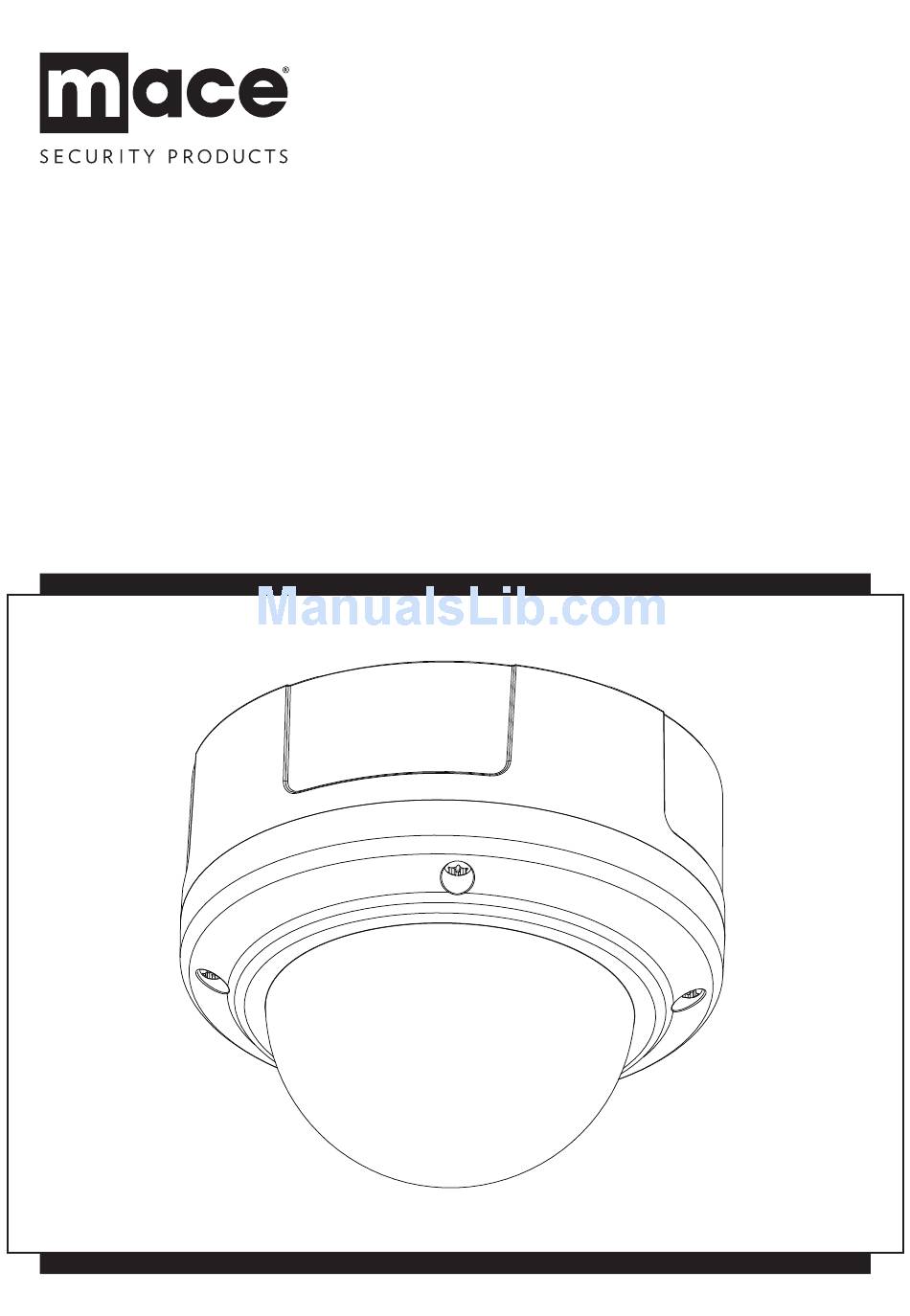

Page 1: User Guide
True Day/Night Vandal ™ Resistant Color Dome Camera Thank you for purchasing a MacePro™ MPC-VD-0650 Camera. Please read the instructions completely before installation. Please consult a legal expert on the proper use of this equipment in accordance with the law. - Page 2 2 — Mace Security Products, Inc. ®...
-
Page 3: Fcc Statement
FCC STATEMENT WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. * Federal Communications Commission (FCC) Statement WARNING This Equipment has been tested and found to comply with the limits for a Class B digital device,... -
Page 4: Installation
POWER AND VIDEO OUTPUT JACK A center pin positive barrel connector is available for AC or DC voltage (12vdc or 24vac). A BNC connector provides an analog video output. ZOOM Adjust varifocal lens for correct depth of field prior to closing dome housing. FOCUS Adjust focus prior to closing dome housing. - Page 5 DIMENSIONS 144.3...
- Page 6 SPECIFICATIONS | MPC-VD-0650 Image Sensor 1/3" SONY CCD Effective Pixels NTSC: 768(H) x 494(V); PAL: 752(H) x 582(V) Resolution 600 TV lines (Color) Scanning System NTSC: 525 Lines / 60 Fields; PAL: 625 Lines / 50 Fields S/N Ratio More than 48 dB (AGC OFF) Electronic Shutter Auto 1/60 (1/50) ~ 1/100,000 sec.
- Page 7 Mace Security Products, Inc. — ®...
- Page 8 5101 NW 21st Ave, Suite 210 • Fort Lauderdale, FL 33309 www.mace.com • (877) 585-6223 0710A...
