Page 1: User Guide

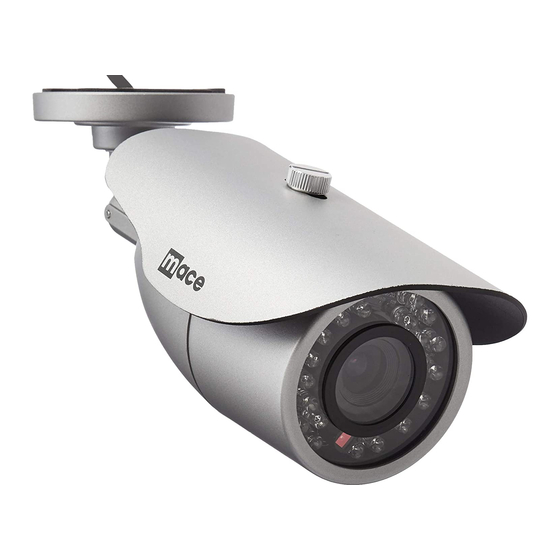

User Guide MaceView IR Vandal-Resistant ™ Bullet Camera Thank you for purchasing a MaceView™ MVC-IRVB-49 Camera. Please read the instructions completely before installation. Please consult a legal expert on the proper use of this equipment in accordance with the law. MVC-IRVB-49... - Page 2 2 — Mace Security Products, Inc. ®...
-
Page 3: Fcc Statement
FCC STATEMENT WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. * Federal Communications Commission (FCC) Statement WARNING This Equipment has been tested and found to comply with the limits for a Class B digital device,... - Page 4 FUNCTIONS The camera includes auto white balance mode (AWB) and color temperature. The range is 2400°K~9600°K 98.7 SENSOR Auto Cell Device Sensor, the IR LED automatically turns on when exterior illumination drops below pre-set levels. IR LED will not activate when exterior illumination is above pre-set levels, to reduce power consumption.
-
Page 5: Installation
POWER AND VIDEO OUTPUT JACK DC JACK is for power in. 12vdc required. (not supplied) ZOOM Adjust varifocal lens if object is out of focus. FOCUS Focus adjustment available if object is out of focus. INSTALLATION 1. Attach camera to bracket. 2. - Page 6 SPECIFICATIONS | MVC-IRVB-49 Image Sensor 1/3" SONY CCD Effective Pixels NTSC: 768(H) x 494(V) ; PAL: 752(H) x 582(V) Resolution 480 TV lines (Color) Scanning System NTSC: 525 lines / 60 fields; PAL: 625 lines / 50 fields S/N Ratio...
- Page 7 Mace Security Products, Inc. — ®...
- Page 8 5101 NW 21st Ave, Suite 210 • Fort Lauderdale, FL 33309 www.mace.com • (877) 585-6223 0710A...
