Summary of Contents for Mace MacePro MPC-BOX
-

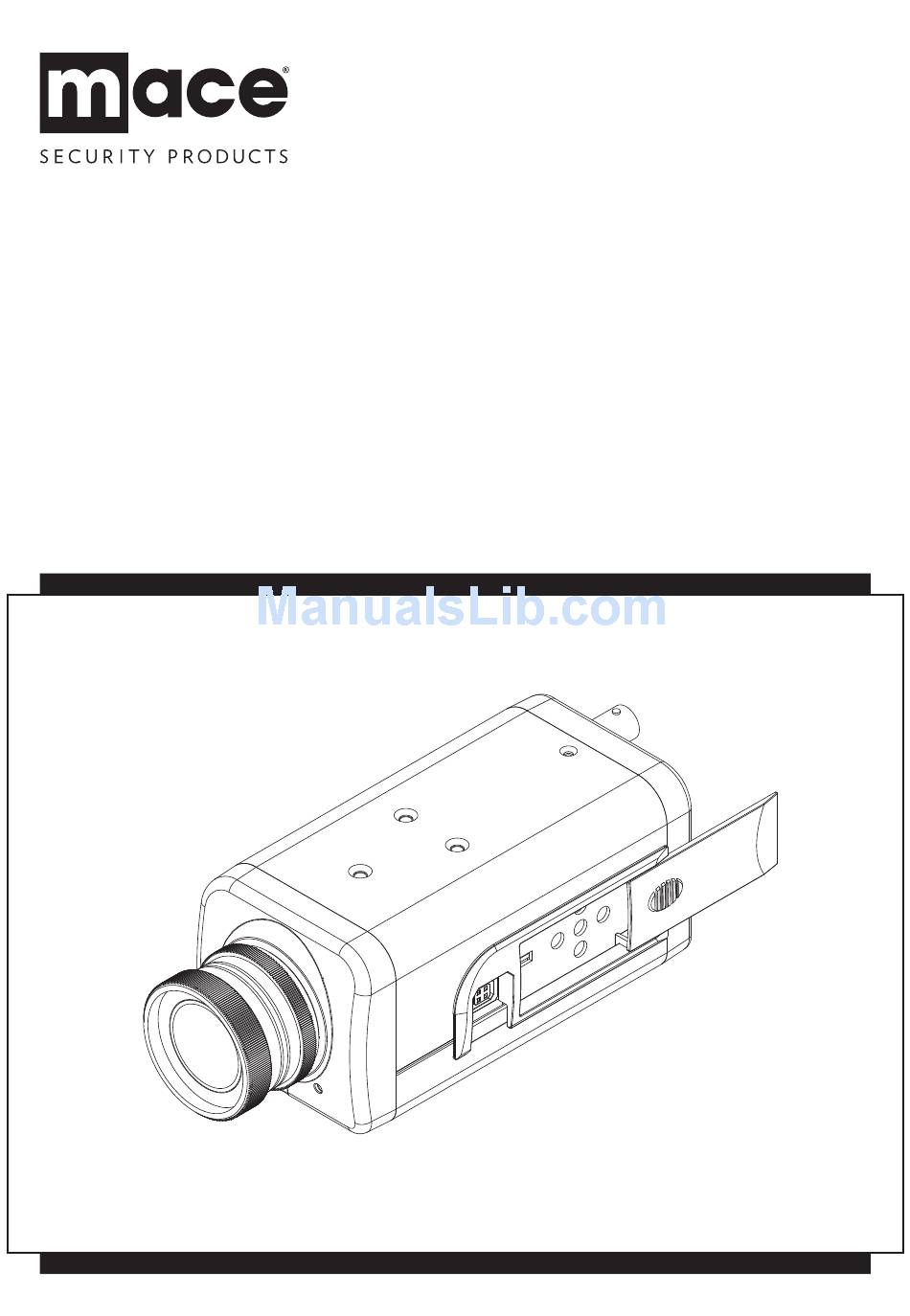

Page 1: User Guide
User Guide MacePro True Day/Night WDR ™ Low-Light Box Camera Thank you for purchasing a MacePro™ MPC-BOX Camera. Please read the instructions completely before installation. Please consult a legal expert on the proper use of this equipment in accordance with the law. MPC-BOX... - Page 2 2 — Mace Security Products, Inc. ®...
-
Page 3: Fcc Statement
FCC STATEMENT WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. * Federal Communications Commission (FCC) Statement WARNING This Equipment has been tested and found to comply with the limits for a Class B digital device,... - Page 4 OSD MENU 1. LENS MENU: SELECT DC LENS MODEL...
-
Page 5: Exposure Menu
2. EXPOSURE MENU You can adjust electronic shutter speed, auto gain control, sensitivity-up level, back light compensation (BLC), Highlight Suppression (HSBLC) and Digital WDR. -
Page 6: White Balance Menu
3. WHITE BALANCE MENU You can adjust white balance. Use ATW for a smaller light range or AWB for a larger light range. 4. DAY NIGHT MENU The threshold for the change from day to night is user selectable. You can also lock the camera into night mode. -
Page 7: Dnr Menu
5. 3DNR MENU You can adjust 3-Digital Noise Reduction level to reduce noise when AGC is higher (low light). -
Page 8: Special Menu
6. SPECIAL MENU You can setup Camera title, Digital effect (Freeze, Mirror, V-FLIP, Rotate), Gamma ratio, Negative image effect, Motion alarm / Area adjust, Privacy mask Area adjust and Language. -
Page 9: Adjust Menu
7. ADJUST MENU You can adjust camera sharpness and color parameter. 8. RESET MENU You can reset all camera setting back to factory default. 9. EXIT MENU Exit OSD menu... - Page 10 DIMENSIONS 63.9 133.4 59.0...
- Page 11 SPECIFICATIONS | MPC-BOX Image Sensor 1/3" SONY CCD Effective Pixels NTSC: 768(H) x 494(V); PAL:752(H) x 582(V) Resolution 600 TV lines (Color) Scanning System NTSC: 525 Lines / 60 Fields; PAL: 625 Lines / 50 Fields S/N Ratio More than 50 dB (AGC OFF) Electronic Shutter Auto 1/60 (1/50) ~ 1/100,000 sec / Flk Minimum Illumination...
- Page 12 5101 NW 21st Ave, Suite 210 • Fort Lauderdale, FL 33309 www.mace.com • (877) 585-6223 0710B...
