en | External connections
6.5

Low impedance loudspeakers

Connect low impedance loudspeakers to the 8 ohm/0 terminals. This output can deliver the
rated output power into an 8 ohm load. Connect multiple loudspeakers in a series/parallel-
arrangement to make the combined impedance 8 ohm or higher. Check the loudspeaker
polarity for in‑phase connection.

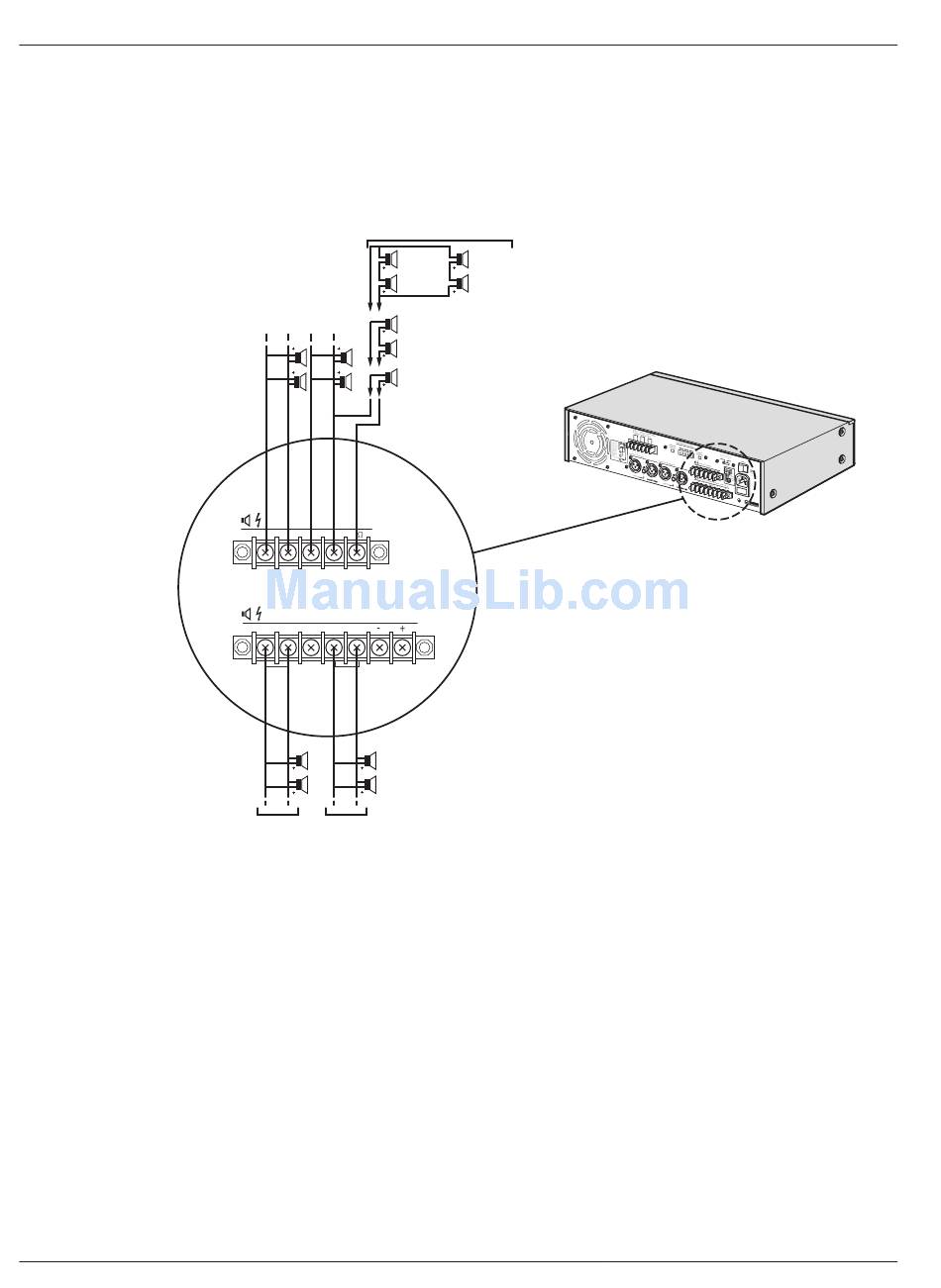

Figure 6.4: Priority input and control terminals
2014.01 | V1.1 | LBB193x/x0
