EMPIRE
EMPIRE
Comfort Systems
Vented/Vent-Free Burner and Logs

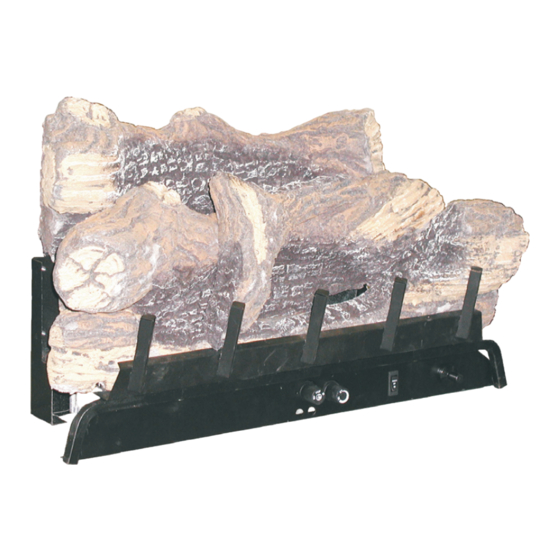

5 Log Set Shown
CERAMIC FIBER LOGS
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
wARNING: If the information in this manual are not
followed exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— wHAT TO DO IF yOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a neigh-
bor's phone. Follow the gas supplier's instruc-
tions.
•
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
INSTALLATION INSTRUCTIONS
AND OwNER'S MANUAL
UNVENTED GAS LOG HEATER
MODELS
VFDR18LB10N-3
VFDR18LBN-2
VFDR24LBN-2
VFDR30LBN-2
VFDT18LBN-2
VFDT24LBN-2
VFDT30LBN-2
VFDM18LBN-2
VFDM24LBN-2
VFDM30LBN-2
VENTED DECORATIVE APPLIANCE
MODELS
VFDR18LB10N-3
VFDR18LBN-2
VFDR24LBN-2
VFDR30LBN-2
VFDM18LBN-2
VFDM24LBN-2
VFDM30LBN-2
This is an unvented gas-fired heater. It uses air (oxy-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to page 9.
wARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
wATER VAPOR: A By-PRODUCT OF UN-VENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one (1)
ounce (30ml) of water for every 1,000 BTU's (.3KW's)
of gas input per hour. Refer to page 6.
VFDR18LB10P-3
VFDR18LBP-2
VFDR24LBP-2
VFDR30LBP-2
VFDT18LBP-2
VFDT24LBP-2
VFDT30LBP-2
VFDM18LBP-2
VFDM24LBP-2
VFDM30LBP-2
VFDR18LB10P-3
VFDR18LBP-2
VFDR24LBP-2
VFDR30LBP-2
VFDM18LBP-2
VFDM24LBP-2
VFDM30LBP-2
Page 1
