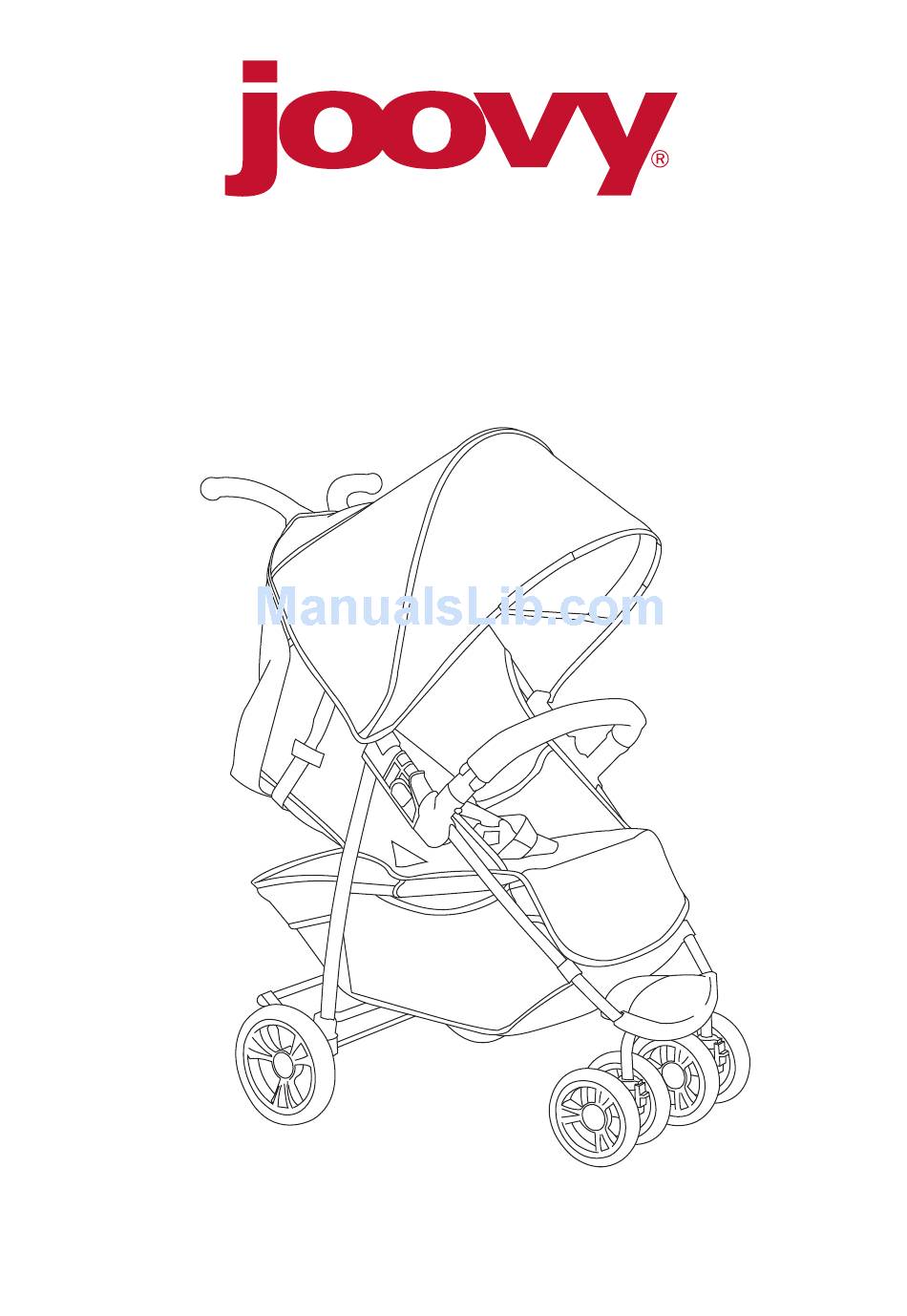

- Page 1 Scooter Instruction Manual 33X Series Joovy • 2919 Canton Street • (877) 456-5049 • Fax: (214) 761-1774 E-mail: customerservice@joovy.com • Web Site: www.joovy.com...
- Page 2 WARNINGS Please read this instruction manual completely before using this stroller. Keep these instructions for future reference. • Failure to follow these instructions could result in serious injury or death. • Never leave child unattended. • Avoid serious injury from falling or sliding out. •...
-
Page 3: Unpacking The Product
Assembling and Using your Stroller To ensure safe operation of your stroller, please follow these instructions carefully. Unpacking the Product • Carefully remove stroller and all parts from the box and plastic bag. • Remove any cardboard packing materials from the stroller. - Page 4 Installing the Rear Wheel Axle and Brake Set and Rear Wheels • In a clean, dry place rest the stroller upside down with the rear legs facing upwards. • Locate the rear axle and brake set and slide it onto the rear legs with the link brake facing the rear of the stroller.
-
Page 5: Front Wheel Locks
Figure 9 Figure 10 WARNING Always make sure the wheel brakes are engaged when the stroller is not being pushed so that the stroller will not roll away. Never leave stroller unattended, especially on a hill or incline, as the stroller may tip over or slide. -
Page 6: Seatback Positioning
Seatback Positioning The seatback can be adjusted to any position from fully upright to reclining. The fully upright position should only be used for a child that is at least 6 months old. • Engage the rear wheel brakes. • Locate the recline mechanism on the backside of the seat. -
Page 7: Installing/Removing Bumper Bar
Installing/Removing the Bumper Bar • Remove the two safety caps from the frame mount points by pressing the release button and pulling each cap off. See Figure 17. • Locate the bumper bar and orient it with the male fitting pointed towards the seat unit and the shiny round rivet head facing upward. - Page 8 Installing, Operating and Removing the Canopy • Stand behind the stroller with the stroller in the unfolded position. • Open the zippers on both sides of the top of the canopy near the center. • Fit the handles through the openings created by the zippers and rest the canopy on the frame with the rigid Figure 20 part of the canopy in the front and the rear apron under...
-
Page 9: Securing The Child
Installing the Cup Holder • Orient the cup holder with the plastic ring facing upward and the grooves in the plastic facing the handles. • Slide the grooves on the back of the cup holder onto the fittings between the handles until the cup holder snaps into place. - Page 10 Using the Stroller as an Infant Car Seat Carrier SILVER GUIDE NOTE: The stroller can be used as an infant car seat carrier with the canopy on or off. • If you remove the canopy and apron from the stroller, store them in a clean, dry place for later use.
-
Page 11: Important Note
• Graco® Safe Seat™ • Graco® Snug Rider™ Series For the most updated list of compatible infant car seats, please either check our website www.joovy.com or call our Customer Service Department at (877) 456-5049. Storage Basket The maximum weight that can be carried in the storage basket is 5 pounds. Excessive weight may result in a hazardous unstable condition. -
Page 12: Maintenance
Any missing, broken, or worn components should be replaced immediately, and the stroller should not be used until they are replaced. Only original manufacturer’s components should be used. If needed, please contact Joovy at our toll-free phone number. Cleaning The fabric material on this stroller can be cleaned using mild household soap or detergent and warm water on a sponge or clean cloth. - Page 13 Look for these other Joovy products Page 12 Scooter Instruction Manual...
- Page 14 Page 13 Scooter Instruction Manual...
- Page 15 Page 14 Scooter Instruction Manual...
- Page 16 Joovy • 2919 Canton Street • (877) 456-5049 • Fax: (214) 761-1774 E-mail: customerservice@joovy.com • Web Site: www.joovy.com ©Joovy 2010 • Document Version 030810...
