Kingdy RP-4N Series User Manual

Rack mount touch panel pc

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Rack Mount Touch Panel PC

RP-4N Series

User Manual

Table of Contents

Need help?

Do you have a question about the RP-4N Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kingdy RP-4N Series

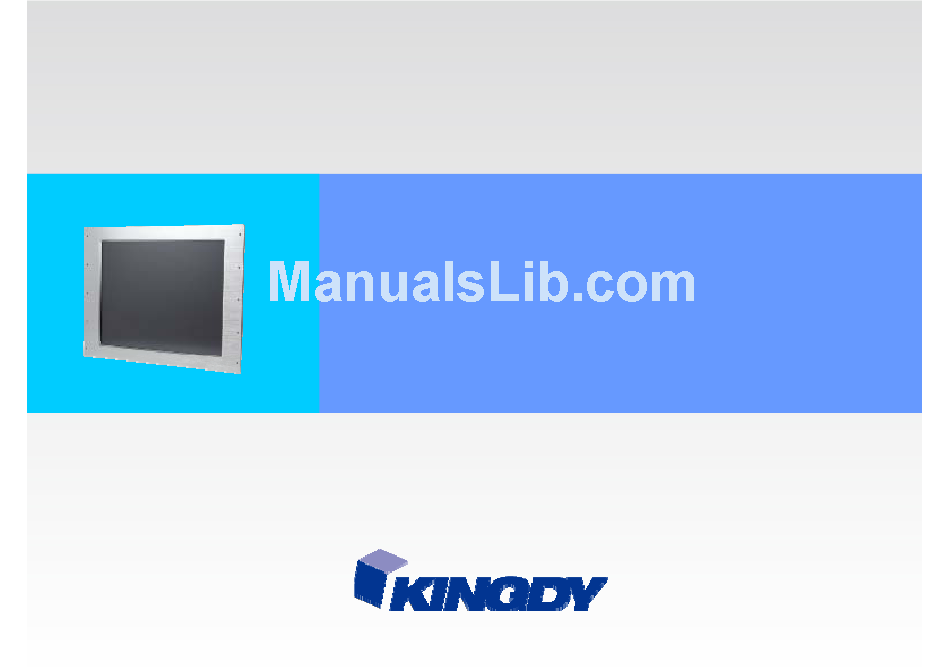

Page 1 Rack Mount Touch Panel PC RP-4N Series User Manual...
Page 2: Table Of Contents
Introduction …………………………………………………………………………………………………… • Features …………………………………………………………………………………………………...…. • Motherboard Specification ……………………………………...………………………………………….. • System Specification ………………………..……………………………………………………………… • Mounting Installation …………………………………………………………………………...…………… • Bios setup ………………………………………………………………………………...……………….…. • Driver Installation …………………………………………………………………..…………………….…. • Contact Information ……………………………………………………………………..……………….…. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 3: Package Contents
• 4 x screw ( M3 x 4 ) for 2.5” HDD or SSD ( If customers order 2.5” HDD or SSD from our side, we don’t offer 4 screws ) • 1 x SATA power cable • 1 x SATA power Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 5: Fcc & Ce Statement
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 6: Introduction
The fanless design is an ideal solution for high-perform ance c omputing and advanced applications. It offers several options in panel sizes from 15" to 19". With RAID data backup function, RP-4N Series makes users free from data loss threats.
Page 7: Features
High quality 6mm thickness silver rack mount anodic aluminum front bezel 2 x GLAN Up to 5 x COM 4 x USB RAID 0/1/5/10 1024 x 768 dpi (15”) 1280 x 1024 dpi (17” & 19”) Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 8: Motherboard Specification
- 1 x Mic-in, 1 x Line-in, 1 x Line-out Power DC 19V ~ 24V input Watchdog Timer Output System reset, Programmable 1 ~ 255 sec/min Operating temperature: 0°C ~ 60°C Environment Storage temperature: -20°C ~ 85°C Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 9: System Specification
0% - 95% non-condensing Win XP Pro, Win 7 Pro, Embedded XP, Embedded 7 Optional Items External DVD-RW driver, None touch screen, CPU, Memory, Storage devices, WiFi, OS, Riser card Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 10: Mounting Installation
Screw Holes for Screw Rack Mount Mounting Installation Panel PC Screws Screw number may vary depending upon the panel size ······ screw the rack mount panel PC to the rack cabinet Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 11: Bios Setup
23. Minute displays minutes from 00 to 59. Second Enables or disables the boot option for legacy mass displays seconds from 00 to 59. storage devices with option ROM. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 12 Enable this field to use the PME signal to wake up the system. Wake system with fixed time Enable or disable system wake on alarm event. When enabled, system will wake on the hr::min::sec specified. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 13 If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or less than 3. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 14 EHCI driver. Legacy IDE This option configures the Serial A TA drives Device reset time-out as Legacy IDE storage devices. Selects the USB mass storage device start unit command timeout. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 15 Set this field to Enabled to allow the system to alert you returns of a chassis intrusion event. Watchdog This field is used to enable or disable the Watchdog Timer function. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 16 PC Health Status Configuration This section displays the SIO hardware health monitor. Serial Port Enables or disables the serial port. Change Settings Selects the IO/IRQ setting of the I/O device. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 22 NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys. Quiet Boot Enables or disables the quiet boot function. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 23 Save Changes Save the changes done so far to any of the setup options. Discard Changes Discard the changes done so far to any of the setup options. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 24 To restore user default to all the setup options, select then press <Enter>. this field and then press <Enter>. A dialog box will appear. Select Yes to restore user default. Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
Page 25: Driver Installation
Driver Installation The RP-4N Series comes with an AutoRun CD-ROM that Step 3 –Install LAN Driver contains all drivers and utilities that can help you to 1. Click on the STEP3-LAN folder and select the OS install the driver automatically.
Page 26: Contact Information
Any questions, please contact your local dealer or contact us via the following means: Add: 10F, No. 2, Jian 8th Rd., Zhonghe Dist., New Taipei City 23511, Taiwan Tel: +886-2-6621-8811 Fax: +886-2-8226-1518 Sales Email: sales@kingdy.com.tw Technical Support Email: tech@kingdy.com.tw Website: www.kingdy.biz Copyright © 2013 Kingdy Technology Inc. All Rights Reserved. RP-4N Series...
