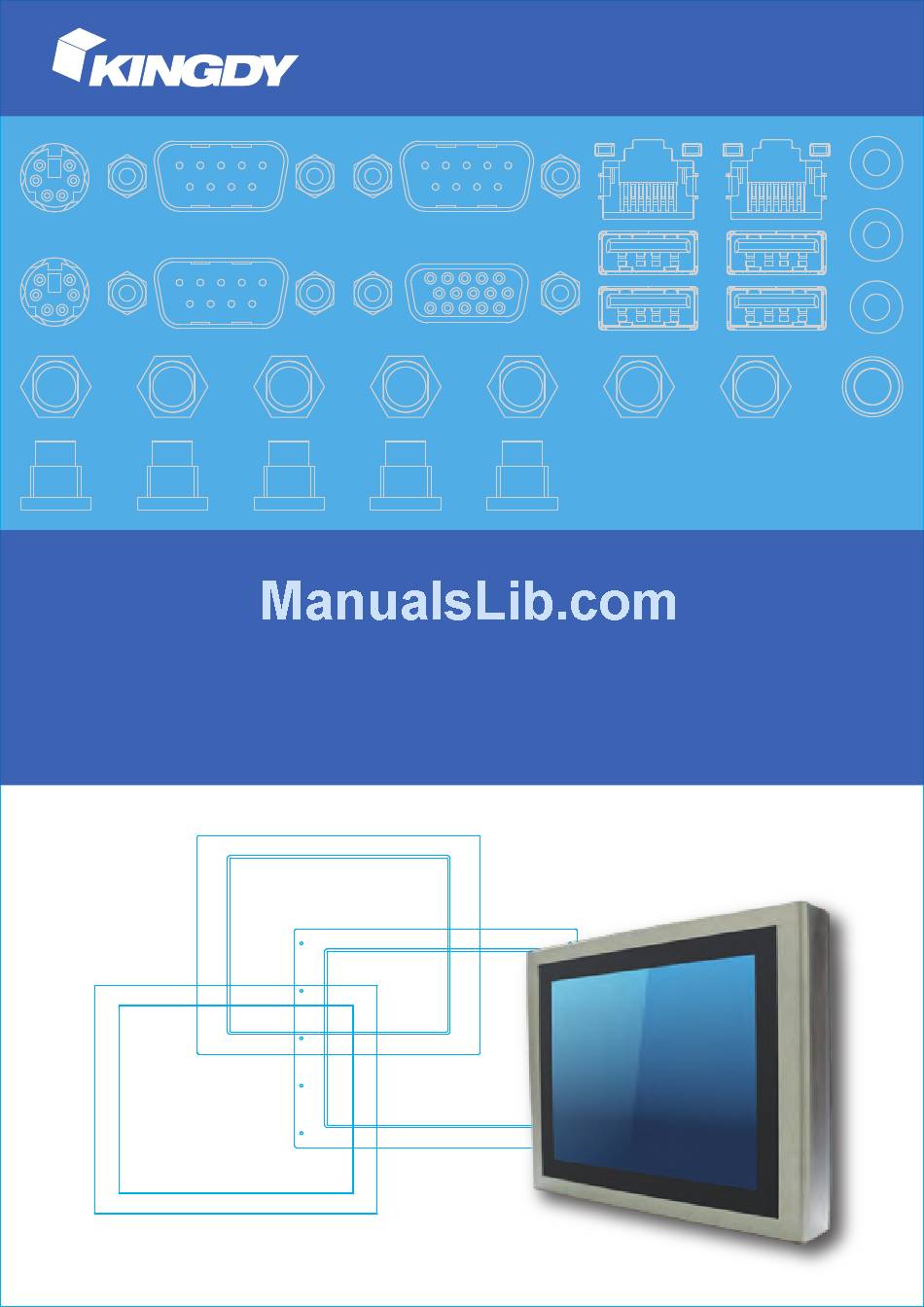

  • Page 1 User Manual IP Series Full IP65 Multi Touch Panel PC...

  • Page 2: Table Of Contents

    Contents Chapter 1 General Information Package ................1-01 Safety Instructions ..............1-02 FCC & CE Statement ............1-03 Product Introduction ............1-04 Mainboard & System Specification IP-0L Series ..............1-05 IP-2L Series ..............1-06 IP-7L Series ..............1-07 IP-8L Series ..............1-08 IP-9L Series ..............1-09 IP-AN Series ..............1-10 IP-BL Series ..............1-11 Chapter 2...

  • Page 3: Package

    General Information Package Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. ● 1 x Industrial Touch Panel PC ● 1 x DC in Power Adapter ●...

  • Page 4: Safety Instructions

    General Information Safety Instructions Read Instructions: All the safety and operating instructions should be read before the equipment is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Cleaning: Unplug this equipment from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

  • Page 5: Fcc & Ce Statement

    General Information FCC & CE Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received including interference that may cause undesired operation. The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking.

  • Page 6: Product Introduction

    General Information Product Introduction Kingdy's IP Series is a full IP65 multi touch panel PC featuring the following protection designs and designed for sophisticated human-machine interaction in the most intuitive way. ● Dustproof / Waterproof full IP65 chassis, connector and power adaptor...
  • Page 7 General Information Mainboard & System Specification System Specification of IP-0L Series Intel Atom N270 1.6GHz Chipset Intel 945 GSE & ICH7M Memory 1 x DDR II SODIMM up to 2 GB Power Supply Full IP65 DC in 12V ~ 24V external power adapter I/O Ports (Default) 1 x RS232, 1 x RS232/422/485, 1 x GLAN, 3 x USB, 2 x SATA socket, 1 x IDE socket I/O Ports (Optional)

  • Page 8: Mainboard & System Specification

    General Information Mainboard & System Specification System Specification of IP-2L Series Intel Dual Core Atom D2550 1.86GHz Chipset Intel NM10 Memory 1 x DDR III SODIMM up to 4 GB Power Supply Full IP65 DC in 12V external power adapter Full IP65 DC in 9V ~ 36V external power adapter 2 x RS232, 1 x GLAN (10.4"...

  • Page 9: Ip-7L Series

    General Information Mainboard & System Specification System Specification of IP-7L Series Intel Dual Core Atom N2800 1.86GHz Chipset Intel NM10 Memory 1 x DDR III SODIMM up to 4 GB Power Supply Full IP65 DC in 12V external power adapter 2 x RS232, 1 x GLAN (10.4"...

  • Page 10: Ip-8L Series

    General Information Mainboard & System Specification System Specification of IP-8L Series Intel Dual Core Atom N2600 1.6GHz Chipset Intel NM10 Memory 1 x DDR III SODIMM up to 2 GB Full IP65 DC in 9V ~ 36V external power adapter Power Supply Full IP65 DC in 12V external power adapter 2 x RS232, 1 x GLAN (10.4"...

  • Page 11: Ip-9L Series

    General Information Mainboard & System Specification System Specification of IP-9L Series AMD T40N 1.0GHz Chipset AMD A50M Memory 1 x DDR III SODIMM up to 8 GB Power Supply Full IP65 DC in 12V external power adapter I/O Ports (Default) 2 x RS232/422/485, 1 x GLAN (10.4"...

  • Page 12: Ip-An Series

    General Information Mainboard & System Specification System Specification of IP-AN Series Intel Core i5 1.8GHz (17" ~ 21.5") / Core i5 Turbo up to 2.7GHz (15" ~ 21.5") / Celeron 827E (17" ~ 21.5") Chipset Intel HM76 Express Memory 1 x DDR III SODIMM up to 8 GB Power Supply Full IP65 DC in 12V / 19V external power adapter I/O Ports (Default)

  • Page 13: Ip-Bl Series

    General Information Mainboard & System Specification System Specification of IP-BL Series AMD T56N 1.65GHz Chipset AMD A50M Memory 1 x DDR III SODIMM up to 8 GB Power Supply Full IP65 DC in 12V external power adapter I/O Ports (Default) 2 x RS232/422/485, 2 x GLAN, 2 x USB, 1 x SATA socket I/O Ports (Optional) Any combination of up to 2 x RS232/422/485, 2 x GLAN, 4 x USB but totally no more than 6...

  • Page 14: Vesa Mount

    VESA Mounting Installation Panel PC (Back Side) Mount Wall or Object Screws VESA Mounting Plate VESA Mounting Bracket Screw Holes for VESA Mounting Installation Step 1: screw the VESA mounting plate to the Panel PC Step 2: screw the VESA mounting bracket to the front of a wall or the front / back of an object dependingly Step 3: slide the VESA mounting plate onto the VESA mounting bracket 2-01...

  • Page 15: Bios Setup

    Bios Setup Main The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Set the Date. Use Tab to BIOS Information switch between Data BIOS Vendor...

  • Page 16: Advanced

    Bios Setup Advanced The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
  • Page 17 Bios Setup Advanced PCI Subsystem Settings This section is used to configure the PCI subsystem settings. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced PCI Option ROM Handling In case of multiple option ROMs (Legacy and EFI [EFI Compatible ROM] PCI ROM Priority Compatible), specifi...
  • Page 18 Bios Setup Advanced ACPI Power Management Configuration This section is used to configure the ACPI Power Management. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced ACPI Power Management Confi guration Enables or Disables BIOS ACPI Auto Confi guration. [Disable] Enable ACPI Auto Confi...
  • Page 19 Bios Setup Advanced Trusted Computing (optional) This section configures settings relevant to Trusted Computing innovations. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Enables or Disables Confi guration BIOS support for security TPM Support [Disabled] device. O.S. will not show Current Status Information Security Device.

  • Page 20: Cpu Configuration

    Bios Setup Advanced CPU Configuration This section is used to configure the CPU. It will also display the detected CPU information. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced CPU Confi guration Disabled for Windows XP Node0: AMD G-T56N Processor Dual Core Running @ 1678 MHz 1350 mV Max Speed: 1650 MHz Intended Speed: 1650 MHz...

  • Page 21: Ide Configuration

    Bios Setup Advanced IDE Configuration This section is used to configure IDE functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced IDE Confi guration Enable or Disable Serial OnChip SATA Channel [Enabled] OnChip SATA Type [IDE] SATA Port0 ST500DM002-1BD (500.1 →...

  • Page 22: Usb Configuration

    Bios Setup Advanced USB Configuration This section is used to configure USB. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Enables Legacy USB USB Confi guration support. AUTO option disables legacy support if USB Devices: no USB devices are 1 Drivers, 1 Keyboard, 1 mouse connected.

  • Page 23: Super Io Configuration

    Bios Setup Advanced Super IO Configuration This section is used to configure the serial port functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Super IO Confi guration Set Parameters of Serial Port 0 (COMA) Super IO Chip Winbond W83627DHG ...
  • Page 24 Bios Setup Advanced Serial Port 0 Configuration to Serial Port 1 Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port 0 Confi guration Select an Optimal Setting for Super IO device Serial Port [Enabled] IO=3F8h; IRQ=4; Device Settings [Auto] Change Settings...

  • Page 25: Pc Health Status

    Bios Setup Advanced PC Health Status This section displays the SIO hardware health monitor. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced PC Health Status Smart Fan Function SYSTIN Temperature : +32 C CPUTIN Temperature : +40 C System FAN Speed : N/A CPU FAN Speed...
  • Page 26 Bios Setup Advanced JMB36X ATA Controller Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced CF Card Not Present Select an operative mode for ATA con- JMB 368 ATA Controller [IDE Mode] troller. → ←: Select Screen ↑↓: Select Item Enter: Select...

  • Page 27: Chipset

    Bios Setup Chipset Configures relevant chipset functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit North Parameters  North Bridge  North Bridge LVDS Confi g Select  South Bridge →...
  • Page 28 Bios Setup Chipset North Bridge Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset North Bridge Confi guration PCI Express Coniguration settings. Memory Information Memory Clock: 533 MHz Total Memory: 2032 MB (DDR3)  GFX Confi guration ...
  • Page 29 Bios Setup Chipset GFX Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset GFX Confi guration Select primary device that BIOS will use for output. Primary Video Device [IGD Video] NB GPP Core Confi g [GPP_Core_x4 x4] →...
  • Page 30 Bios Setup Chipset Node 0 Information Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Node0 Information Starting Address: 0 KB Ending Address: 2097151KB DIMM0: Size = 2048 MB, speed = 533MHz → ←: Select Screen ↑↓: Select Item Enter: Select +/ -: Change Opt.
  • Page 31 Bios Setup Chipset North Bridge LVDS Config Select Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Specify INT15 options for LVDS NB PCIE Connect Type( HDMI [Enable] display device) LVDS [Disable] → ←: Select Screen ↑↓: Select Item Enter: Select +/ -: Change Opt.
  • Page 32 Bios Setup Chipset South Bridge Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset SB CIM Version : 1.1.1.2 Options for SB USB Confi guration.  SB USB Confi guration  SB HD Azalia Confi guration → ←: Select Screen ↑↓: Select Item...
  • Page 33 Bios Setup Chipset SB HD Azalia configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset HD Audio Azalia Device [Enabled] Enable or Disable Audio Azalia Device → ←: Select Screen ↑↓: Select Item Enter: Select +/ -: Change Opt.

  • Page 34: Boot

    Bios Setup Boot Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Number of seconds to Boot Confi guration Setup Prompt Timeout wait for setup activation [On] Bootup NumLock State key. 65535(0xFFFF) means [Disabled] indefi...

  • Page 35: Security

    Bios Setup Security Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Administrator Password. If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 36: Save & Exit

    Bios Setup Save & Exit Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Save Changes and Reset Reset the system after Discard Changes and Reset saving the changes. Save Options Save Changes Discard Changes Restore Defaults...

  • Page 37: Updating The Bios

    Bios Setup Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS.EXE. Please contact technical support or your sales representative for the files. To execute the utility, type: A:> AFUDOS BIOS_File_Name /b /p /n then press <Enter>.

  • Page 38: Driver Installation

    Driver Installation The device comes with an AutoRun CD-ROM that contains all drivers and utilities that can help you to install the driver automatically. Insert the driver CD, the driver CD-title will auto start and show the installation guide. If not, please follow the sequence below to install the drivers. Step 1 –...
