Summary of Contents for Kingdy SP/HP-NL/NN

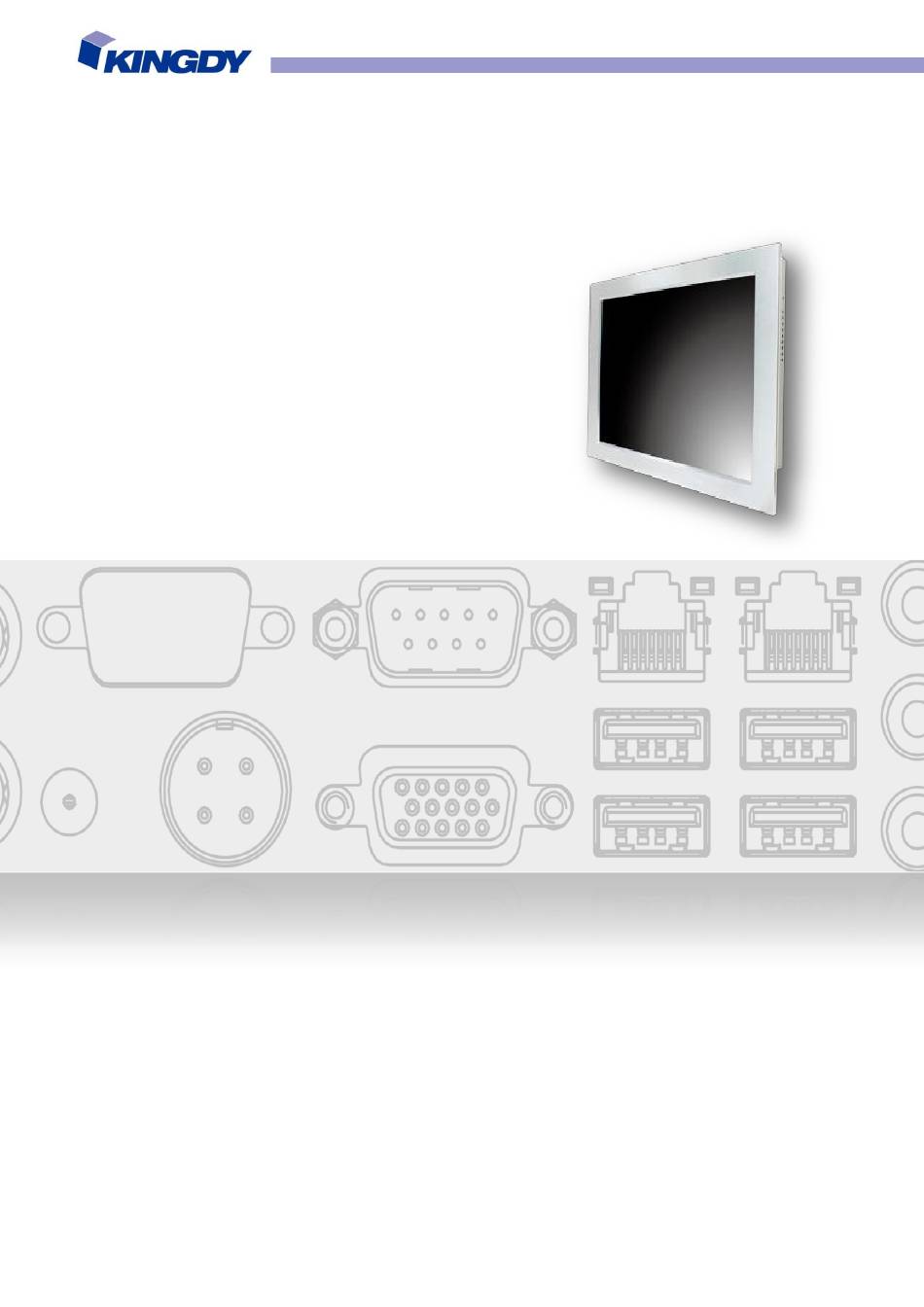

  • Page 1 SP/HP-NL/NN Aluminum Front Bezel Panel PCs...
  • Page 2: Table Of Contents

    Index Package Contents ............................3 Safety Instructions ............................4 Regulatory Compliance Statements ......................5 Introduction ............................... 6 Features ................................7 System Specification ............................8 Panel Specification ............................9 SP-NL/NN ..............................9 HP-NL/NN ............................... 11 Screw Mounting Installation ......................... 13 VESA Mounting Installation ......................... 14 Clip Mounting Installation ..........................
  • Page 3: Package Contents

    Package Contents Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product: 1 x Industrial Touch Panel PC • 1 x DC in Power adapter •...
  • Page 4: Safety Instructions

    Safety Instructions 1. Read Instructions: All the safety and operating instructions should be read before the equipment is operated. 2. Retain Instructions: The safety and operating instructions should be retained for future reference. 3. Cleaning: Unplug this equipment from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
  • Page 5: Regulatory Compliance Statements

    Regulatory Compliance Statements This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
  • Page 6: Introduction

    Introduction Brained with Intel 6 Intel i3/i5/i7, SP/HP-NL/NN Series is a mid-level device and intended for manufacturers providing a cost-effective solution to their automation, monitoring, control or data processing systems. Equipped with Full-size Mini PCIe (one w/ m SATA) , it provides you possibility to expand more applications.
  • Page 7: Features

    Features ● 6th Gen Intel® Core™ Celeron i3/i5/i7 CPU ● LCD touch panel from 8.4" to 21.5" ● High Brightness: 2000/1600/1000/800 nit for HP ● Widescreen solution for 15.6, 17.3,18.5 & 21.5" for SP ● Widescreen solution for 18.5”& 21.5" for HP ●...
  • Page 8: System Specification

    System Specification SP/HP-NLXXRS SP/HP-NNXXRF SP/HP-NNXXRW Model Number 6th Gen Intel® Core™ Celeron 3955U 6th Gen Intel® Core™ Celeron 3955U i5-6300U/i7-6600U i3-6100U/i5-6300U 1 x 204-pin DDR3L 1600MHz SODIMM Memory 2 x 204-pin DDR3L 1600MHz SODIMM up to 16 GB up to 8 GB H/W Monitor 256-Level Watchdog Timer 12.1”,15”,15.6,17”,17.3”,...
  • Page 9: Panel Specification

    Panel Specification SP-NL/NN SP-NLR08RS SP-NLL10RS SP-NLS10RS Model Name Size / Aspect Ratio 8.4" TFT (4:3) 10.4" TFT (4:3) 10.4" TFT (4:3) Backlight Resolution 800 x 600 800 x 600 1024 x 768 16.2M Colors 16.2 M 16.2 M Display Luminance (cd/m2) Contrast Ratio 600:1 500 : 1...
  • Page 10 SP-NNS15RF SP-NNL17RF SP-NND17RF SP-NND18RF Model Number 15~36V SP-NNS15RW SP-NNL17RW SP-NND17RW SP-NND18RW Size / Aspect Ratio 15.6" TFT (16:9) 17" TFT (4:3) 17.3" TFT (16:9) 18.5" TFT (16:9) Backlight Resolution 1920 x 1080 1280 x 1024 1920 x 1080 1366 x 768 16.7 M Colors 16.2M...
  • Page 11: Hp-Nl/Nn

    HP-NL/NN Model Name HP-NLL08RS HP-NLD10RS HP-NLS10RS Size / AHPect Ratio 8.4" TFT (4:3) 10.4" TFT (4:3) 10.4" TFT (4:3) Backlight Resolution 800 x 600 800 x 600 1024 x 768 Colors 16.2 M 16.2M 16.2 M Display Luminance (cd/m2) 1600 2000 1600 1000...
  • Page 12 HP-NNL17RF HP-NND18RF 15~36V HP-NNL17RW HP-NND18RW Size / Aspect Ratio 17" TFT (4:3) 18.5" TFT (16:9) Backlight Resolution 1280 x 1024 1366 x 768 Colors 16.7 M 16.7 M Luminance (cd/m2) 1600 1000 1000 Display Contrast Ratio 1000:1 1250:1 Viewing AnNLe 170/170 160/160 160/160...
  • Page 13: Screw Mounting Installation

    Screw Mounting Installation Front Side of the Mounting Wall Back Side of the Mounting Wall Mount Wall (Back Side) Mount Wall (Front Side) Cut Out Panel Mount PC (Back Side) Panel Mount PC (Front Side) Screw Holes for Screw Mounting Installation Align the bottom of panel housing with the bottom edge of the cut out...
  • Page 14: Vesa Mounting Installation

    VESA Mounting Installation Panel PC Mount Wall or Object (Back Side) Screws Screw Holes for VESA VESA Mounting Bracket VESA Mounting Bracket Mounting Installation ······ Sep 1: screw the VESA mounting plate to the Panel PC ······ Step2: screw the VESA mounting bracket to the front of a wall or the front / back of an object dependingly ······...
  • Page 15: Clip Mounting Installation

    Clip Mounting Installation ※ Before Installing, make sure the number of clips are correct. 8.4", 10.4", 12.1" are 8pcs; 15", 17", 19". 15.6", 17.3"18.5”,21.5" are 10pcs Back Side of the Mounting Wall Front Side of the Mounting Wall Cut Out Step 1: Insert the panel pc in the cut out.
  • Page 16: Bios Setup

    BIOS Setup Main The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. System Time The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m.
  • Page 17: Advanced

    Advanced ACPI Settings This section is used to configure the system ACPI parameters. Wake on LAN This field use to enable or disable the LAN signal to wake up the system. State After G3 This field is to specify what state to go when power is re-applied after a power failure (G3 state). S0 State The system working state.
  • Page 18 CPU Configuration This section is used to configure the CPU. Intel(R) SpeedStep(tm) This field is used to enable or disable the Intel Enhanced SpeedStep Technology. Turbo Mode Enable or disable the turbo mode.
  • Page 19 Video Configuration This section configures the video settings. Internal Graphics Keep IGFX enabled or disabled based on the setup options. Always Enabled PEG Enable or disable the PEG function.
  • Page 20 Boot display Set the display device combination. Backlight Control Select the Normal/Inverted. Panel Color Depth Select the LFP panel color depth: 18 bit, 24 bit, 36 bit, and 48 bit. LVDS Mode Select the PWM/DC Mode. Note: In order to control "Primary Display" & "Boot Display", you need to go to Boot tab and select different "Boot Type" Boot Type : Legacy Boot Type ->...
  • Page 21 LCD Panel Type Select the LCD panel type.
  • Page 22 Audio Configuration This section is used to configure the audio settings. HD Audio Control the detection of the HD-Audio device. Disabled HDA will be unconditionally disabled. Enabled HDA will be unconditionally enabled. Auto HDA will be enabled if present, disabled otherwise.
  • Page 23 SATA Configuration This section is designed to select the SATA controller and the type of hard disk drive which are Installed in your system unit. SATA Controller(s) This field is used to enable or disable Serial ATA devices. SATA Mode Selection The mode selection determines how the SATA controller(s) operates.
  • Page 24 USB Configuration This section is used to configure the parameters of the USB device. USB BIOS Support Disabled Disable USB keyboard/mouse/storage support. Enabled Enable USB keyboard/mouse/storage support under UEFI and DOS environment.
  • Page 25 PCI Express Configuration This section configures settings relevant to PCI Express root ports.
  • Page 26 PCI Express Root Port This field is used to enable or disable the PCI Express Root Port. PCIe Speed Select the speed of the PCI Express Root Port: Auto, Gen1, Gen2 or Gen3...
  • Page 27 ME Configuration This section configures settings relevant to flash ME region. Me Fw Image Re-Flash This field is used to enable or disable the flash ME region. Active Management Technology Support The section allows users to enable or disable the Intel® Active Management Technology (Intel®...
  • Page 28 SIO NUVOTON6106D This section configures the system super I/O chip parameters. SYS/CPU Smart Fan/Fan 2 Control Enable or disable the system/CPU smart fan/fan 2. Boundary 1 to Boundary 4 Set the boundary temperature. The range is from 0-127 Fan Speed Count 1 to Fan Speed Count 4 Set the fan speed.
  • Page 29 Serial Port 1 to Serial Port 4 Configure the settings to use the serial port. Disable No configuration Enable User configuration.
  • Page 30 Enable or disable the watchdog function. A counter will appear if you select to enable WDT. Input any value between 1 to 255. Note: Case Open SYS Smart Fan, Fan2 and CPU Smart Fan Control can be switched to <Disable>. When they Enable or disable the case open.
  • Page 31 PC Health Status This field only displays the PC health status.
  • Page 32: Security

    Security TPM Availability Set the TPM availability. TPM Operation Enable or disable the storage and endorsement hierarchy. This option will automatically return to No-Operation. Clear TPM Remove all TPM context associated with a specific owner. Set Supervisor Password Set the supervisor’s password and the length of the password must be greater than one character. Set All Hdd Password Set all HDD password and suggest the length of password greater than one character.
  • Page 33 Storage Password Setup Page Storage Password Setup Page This option allowes you to set up storage password. ST3160318AS (Device Name) This option allowes you to go to Storage Password List Help.
  • Page 34 Security Mode Description Lock: HDD security status is enable and lock. Unlock: HDD security status is enable and lock. Change: HDD security status is unlock and user changes to the new password. Disable: Remove HDD password from device. No Access: HDD Secutiry status is not enabled when entering SCU Set Storage Password Set all HDD password and suggest the length of password greater than one character.
  • Page 35: Boot

    Boot Numlock Select the power-on state for numlock. Boot Type Select the boot type. The options are Dual Boot Type, Legacy Boot Type or UEFI Boot Type. If you select “Dual Boot” or “UEFI Boot”, the “Network Stack”, PXE Boot Capability” and “USB Boot”...
  • Page 36 Normal Boot Menu Normal Based on the boot normal priority, it determines the EFI device first or the legacy device first. Advance All boot devices follow the user’s selection sequence. Boot Type Order Select the priority of boot type: Normal Boot or Advance Boot.
  • Page 37 Legacy This section is used to set legacy boot order. Normal Boot Menu Normal Based on the boot normal priority, it determines the EFI device first or the legacy device first. Advance All boot devices follow the user’s selection sequence. Use + and - keys to arrange the priority of the listed Boot devices.
  • Page 38 Boot Type Order Use + and - keys to arrange the sequence of storage devices that the system’s hardware checks for the operating system’s boot files. The first device in the order list has the first boot priority. For example, to boot from a floppy drive instead of a hard drive, place the floppy drive ahead of the hard drive in priority.
  • Page 39: Exit

    Exit Exit Saving Changes Select this field and then press <Enter> to exit the system setup and save your changes. Load Optimal Defaults Select this field and then press <Enter> to load optimal defaults. Discard Changes Select this field and then press <Enter>to exit the system setup without saving your changes.
  • Page 40: Updating The Bios

    Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility. Please contact technical support or your sales representative for the files and specific instructions about how to update BIOS with the flash utility. When you download the given BIOS file, you may find a BIOS flash utility attached with the BIOS file.
  • Page 41 HW Support The HW Utility icon will appear on the desktop. Double-click the icon to open the utility. Information Health...
  • Page 42 HW Health Set Watch Dog...
  • Page 44 Inspiring a reliable solution Technical Support E-mail : tech@kingdy.com.tw...
