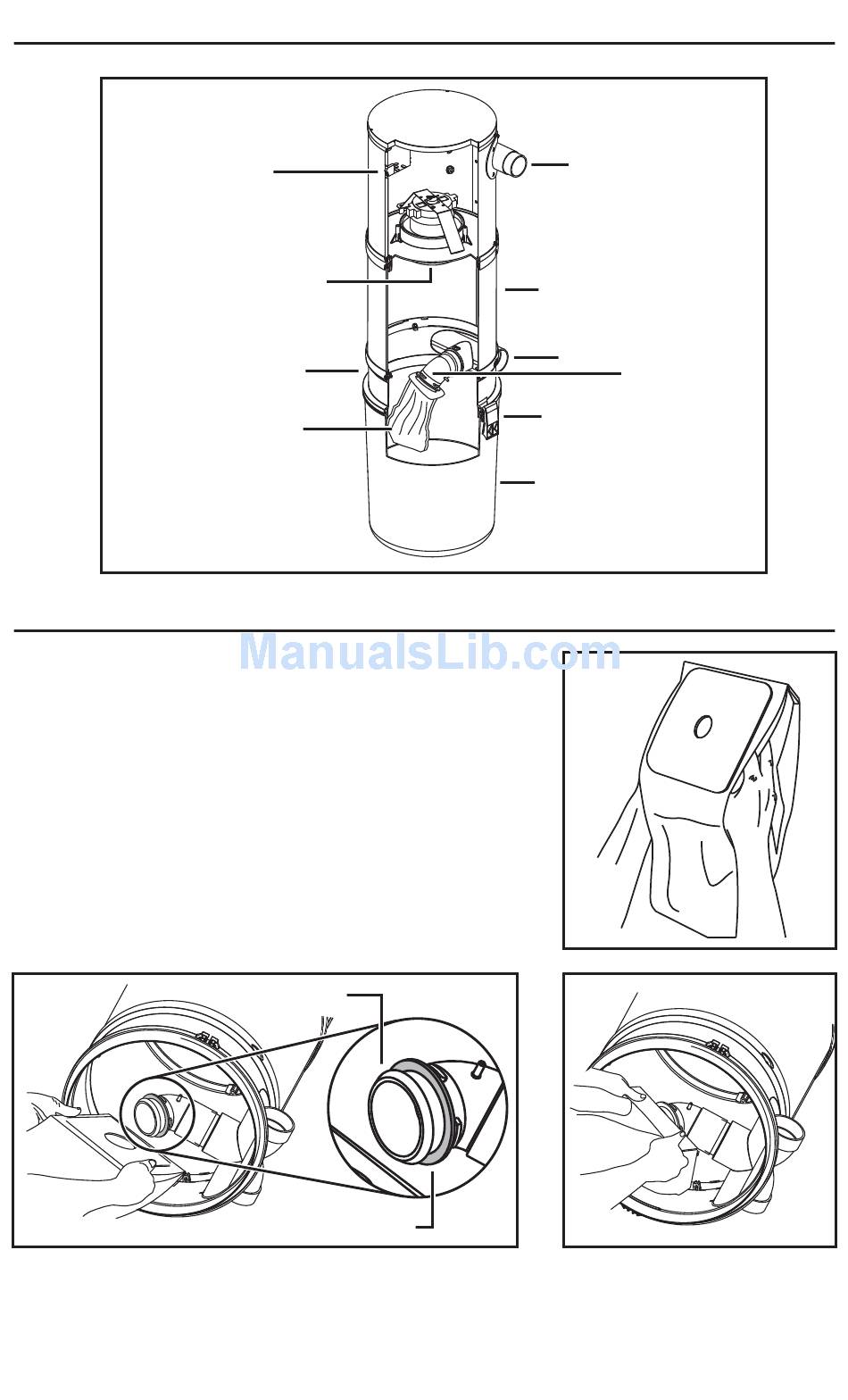

4. DETAILED VIEW

R
OCKER SWITCH
S
I
NLET CHAMBER
D
ISPOSABLE BAG

5. BAG REPLACEMENT

1. To remove the disposable bag, release both latches
on sides of the unit by pulling out and then
pushing up. Remove the pail from unit. Grasp the
edges of the bag collar and pull down. The bag will
slide off easily. Do not pull on the bag.
2. Unfold new bag.
3. Grasp collar where indicated on the bag and insert
over bag adapter. Be careful not to tear the bag.
Ensure the collar is positioned between the taper
ring and the bag stopper on the bag adapter (see
illustration below). Put the pail back in its place.
AO0024
NOTE: A set of 3 replacement bags (model 391C) may be purchased from your
local Broan-NuTone Sales Outlet. To locate your nearest Broan-NuTone
Sales Outlet, call toll free 1-888-882-7626.
ECONDARY FILTER
T
APER RING
B
AG STOPPER
AL0003
- 4 -
E
XHAUST OUTLET
V
ACUUM CHAMBER
I
NLET
B
AG ADAPTER
L
ATCH
D
EBRIS PAIL
AA0004
AO0025
