Coopers of Stortford 9081 Instructions Manual

2-in-1 extendable reach petrol chainsaw and hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

2-in-1 Extendable Reach Petrol Chainsaw
and Hedge Trimmer
WARNING
read carefully to understand the proper use of your unit.
Before using our product please
9081
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9081 and is the answer not in the manual?

Questions and answers

Related Manuals for Coopers of Stortford 9081

Summary of Contents for Coopers of Stortford 9081

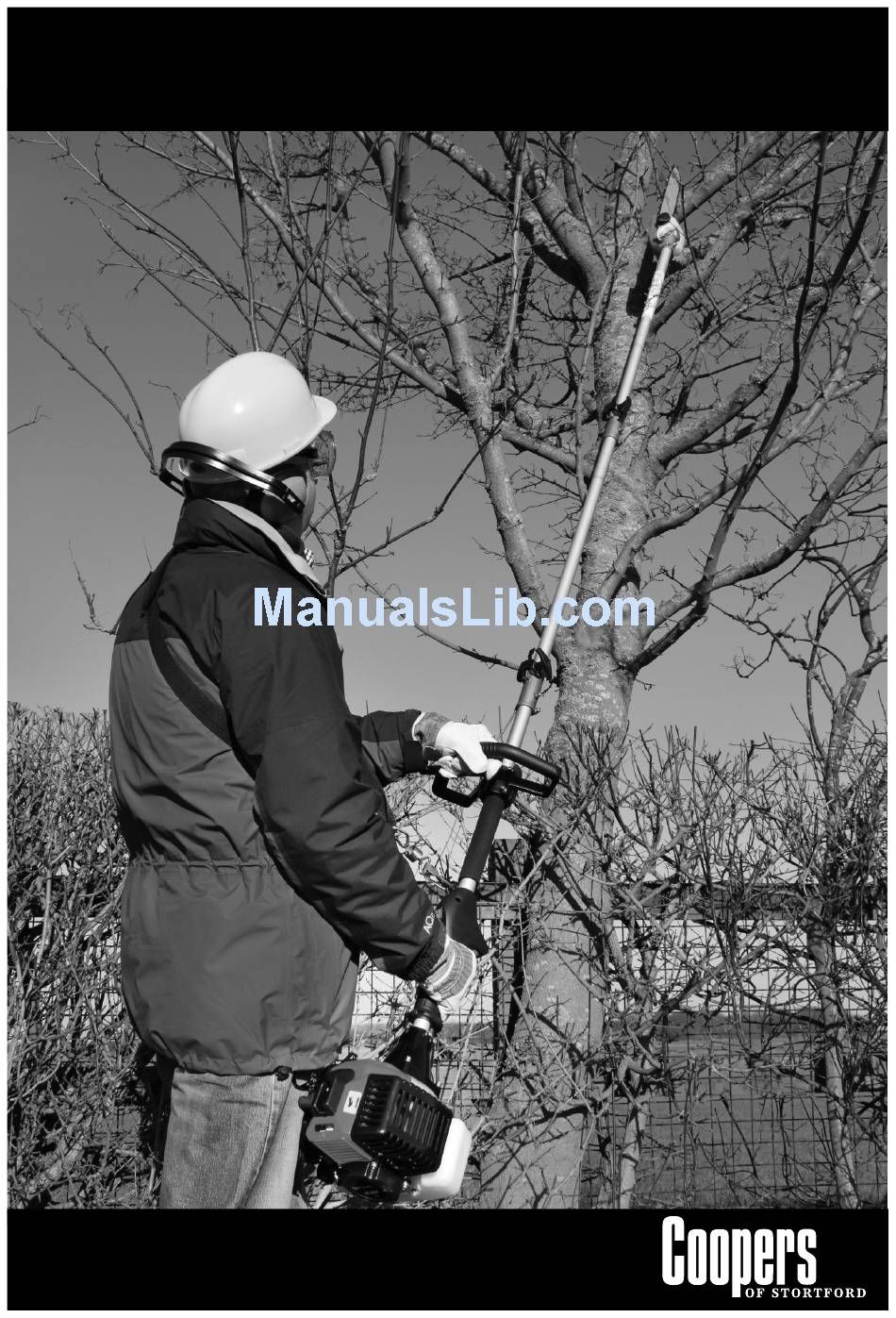

  • Page 1 2-in-1 Extendable Reach Petrol Chainsaw and Hedge Trimmer Instructions 9081 WARNING Before using our product please read carefully to understand the proper use of your unit.

  • Page 2: Table Of Contents

    Contents Parts location Specifications Exploded diagrams 5 - 8 Warning labels on the machine Symbols on the machine Warnings for safe operation 10 - 14 Assembling hedge trimmer and chainsaw 15 - 16 Fuel Operation 18 - 25 Maintenance 26 - 32 Storage and transportation Cleaning and maitenance before storage Troubleshooting guide...

  • Page 3: Parts Location

    Parts location 1. Fuel cap 20. Hedge trimmer gear case 2. Recoil starter 21. Chainsaw cover 3. Primer bulb 22. Chainsaw guide bar 4. Air filter cover 23. Chainsaw chain 5. Control handle 24. Chainsaw chain/guide bar safety cover 6. Ignition switch 25.

  • Page 4: Specifications

    Specifications Engine type Air Cooled 2-stroke petrol Displacement 32.5cc Max. output 1.27Hp (0.95kW) at 7000/min (rpm) Idle speed 3000+-200/min (rpm) Fuel Mixture (Petrol 25: Oil 1) Carburetor Diaphragm type Spark plug Fuel tank capacity 0.85L Sound pressure level 108dB(A) Sound power level 114dB(A) Vibration tool value 10.1m/s...

  • Page 5: Exploded Diagrams

    Exploded diagrams IGNITION...
  • Page 6 Exploded diagrams CHAINSAW...
  • Page 7 Exploded diagrams HEDGE TRIMMER...
  • Page 8 Exploded diagrams ENGINE...

  • Page 9: Warning Labels On The Machine

    Warning labels on the machine 1) Read instructions before operating this machine. Important (2) Wear head, eye and ear protection. If the warning label peels off or becomes soiled and impossible to read, you should contact the dealer (3) Warning/Attention from which you purchased the product to order new (4) Keep all children, bystanders and helpers labels and affix them in the required location(s).

  • Page 10: Warnings For Safe Operation

    Warnings for safe operation • Chainsaws and hedge trimmers are potentially • Never force the chainsaw or hedge trimmer - it will do dangerous tools. Professional training is the job better and safer when used correctly. recommended before first use. •...
  • Page 11 Warnings for safe operation • Do NOT operate when you are tired, ill or under RESIDUAL RISKS the influence of alcohol or drugs. Despite the above warnings and due to the nature of • Using this unit can be strenuous. Remember to take the product, there remains a residual risk, which regular breaks.
  • Page 12 Warnings for safe operation Vibration Warning! Warning! Hearing protection. Prolonged use of chainsaws or hedge trimmers or any It is recommended that safety ear/hearing protection other machine that vibrates in use, may produce a is worn at all times when operating this unit. Engine medical condition called “white finger disease”, noise may damage your hearing.
  • Page 13 Warnings for safe operation BEFORE STARTING THE ENGINE 1. The area within a perimeter of 50ft (15m) of the person using the product should be considered a hazardous area into which no one should enter. If necessary yellow warning rope or warning signs should be placed around the perimeter of the area.

  • Page 14: Warnings For Safe Operation

    Warnings for safe operation USING THE PRODUCT IMPORTANT Cut only materials recommended by the manufacture, and use only for tasks explained in the manual. 1. Grip the handles firmly with both hands using your whole hand. Place your feet slightly apart (slightly further apart than the width of your shoulders) so that your weight is distributed evenly across both legs, and always be sure to maintain a steady, even posture...

  • Page 15: Assembling Hedge Trimmer And Chainsaw

    Assembling the hedge trimmer and chainsaw OPTIONAL EXTENSION POLE/CHAINSAW HEDGE TRIMMER ATTACHMENTS 1. Insert the optional extension pole, chainsaw or hedge trimmer attachment into to the main drive shaft and tighten the quick fit connector securely. (a) Quick fit connector (b) Positioning hole (c) Split connector IMPORTANT...
  • Page 16 Assembling the hedge trimmer and chainsaw CHAINSAW PARTS LOCATION (1) Guide bar (2) Saw chain (3) Gear case (4) Sprocket (5) Chain tension adjust screw (6) Nut (7) Chain tensioner nut (8) Chain cover Install the guide bar and the saw chain on the gear case as follows. WARNING The chain has very sharp edges.

  • Page 17: Fuel

    Fuel FUEL HOW TO MIX FUEL Use caution when handling • Petrol is flammable. fuel 1. Measure out the quantities of petrol and oil to be mixed. • Always turn off the engine and 2. Put some of the petrol into the clean, allow to cool fully before approved fuel container supplied.

  • Page 18: Operation

    Operation 1. Rest the unit on a flat, firm surface (A) - keep the cutting head off the ground and clear of any surrounding objects. Stand clear of the cutting head. 2. Pour the mixed fuel into the fuel tank (as per fuel mixing instructions) and tighten fuel cap securely.
  • Page 19 Operation 3. Move the choke lever to the ‘START’ position (D) (cold start) please note, if the engine is already warm this is not required. 4. Press the ignition switch to the ‘ON’ position (E). 5. Hold down the throttle trigger with one hand and with the other hand firmly pull the recoil starter to start the engine.
  • Page 20 Operation NOTE 1. When restarting the engine immediately after stopping it, leave the choke open. 2. Overchoking can make the engine hard to start due to excess fuel. If the engine fails to start after several attempts, open the choke and repeat pulling the recoil starter cable, or remove the spark plug and dry it.
  • Page 21 Operation - chainsaw CHECKING OIL SUPPLY After starting the engine, run the chain at medium speed and see if chain oil is scattered off as shown opposite. (1) Chain oil NOTE The oil reservoir has a capacity sufficient to provide about 40 minutes of cutting time (when set to deliver the minimum flow rate, or about as long as you'll get from a tank of fuel).
  • Page 22 Operation - chainsaw TO PRUNE BRANCHES FROM A TREE Do not cut any branch larger than 30cm thick. This item is not designed to fell large trees, it is for pruning. Cut lower branches first and work up the trunk. Prune heavy branches in several sections to reduce the weight of the branch and strain on the saw.
  • Page 23 Operation KICKBACK SAFETY PRECAUTIONS - CHAINSAW WARNING Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator.
  • Page 24 Operation WARNING BUCKING AND LIMBING Bucking is cutting a fallen log into It is recommended to smaller lengths. Limbing is the first practice sawing removal of branches from a fallen easy logs. This also tree. helps you get accustomed to your WARNING unit.

  • Page 25: Operation

    Operation BUCKING TECHNIQUES Log supported along entire length. Cut up from beneath the buck being careful not to cut into the ground. Log supported on one end, proceed First, make an insertion from beneath, as if using a saw horse. cutting up 1/3 of the buck diameter to avoid splintering.

  • Page 26: Maintenance

    Maintenance Maintenance, replacement, or repair of the emission control device and systems may be performed by a qualified garden machinery maintenance engineer. MAINTENANCE CHART every every every system/component procedure before before hours hours note after after after fuel leaks, fuel spillage wipe out fuel tank, air filter, fuel filter inspect/clean...
  • Page 27 Maintenance AIR FILTER The air filter, if clogged, will reduce the engine performance. Air filter Check and clean the filter element in warm, soapy water as required. Dry completely before installing. If the element is broken or shrunk, replace with a new one. FUEL FILTER When the engine runs short of fuel supply, check the fuel cap and the fuel filter for blockage (see image opposite).
  • Page 28 Maintenance INTAKE AIR COOLING VENT WARNING Never touch the cylinder, muffler, or spark plugs with your bare hands immediately after stopping the engine. The engine can become very hot when in operation, and doing so could result in severe burns. When checking the machine to make sure that it is cool to touch before using it, remove any wood chips or leaves which have attached themselves to the unit.
  • Page 29 Maintenance HEDGE TRIMMER BLADES When refilling the tank or resting, it is often a good idea to use the time to oil the cutting blades. If a gap exists between the upper and lower blades, follow the procedure below to adjust them so that they fit more closely together.
  • Page 30 Maintenance CHAINSAW ATTACHMENT OILING PORT Dismount the guide bar and check the oiling port for clogging (1) Oiling port GUIDE BAR Remove sawdust in the bar groove (1) and the sprocket (2). The guide bar groove should always be square. Check for wear of the groove.
  • Page 31 Maintenance SPROCKET Check for extensive wear, and replace it when the teeth are worn over 0.3mm. (1) Sprocket WARNING SAW CHAIN It is very important for smooth and safe operation to keep the saw chain sharp. • Your cutters need to be sharpened when: •...

  • Page 32: Storage And Transportation

    Maintenance After every cutter has been set, check the depth gauge and file it to the proper level as illustrated. WARNING Be sure to round off the front edge to reduce the chance of kickback or tie- strap breakage. (1) Appropriate gauge checker (2) Make the shoulder round (3) Depth gauge standard Make sure every cutter has the same length and edge angles as illustrated...

  • Page 33: Cleaning And Maintenance

    Cleaning and maintenance of the chainsaw / hedge trimmer before storage Extending the length of your chainsaw / hedge • Oil the chainsaw - Since you will be storing the trimmer can be increased with proper and regular chainsaw for a while, you will want to protect all maintenance.

  • Page 34: Troubleshooting Guide

    Troubleshooting Guide Case1. Starting failure Check fuel for water Replace with proper fuel. or sub-standard mixture. Remove and dry the spark plug. Check for engine flooding. Try to start with choke in RUN position then if it doesn’t start remove and clean/dry spark plug - replace and follow start instructions Check the spark (no spark).

  • Page 35: Packaging Disposal

    Machinery Safety Directive 2006/42/EC hereby declare that: Pole Pruner - hedge trimmer and chainsaw set RETURNS OR FAULTS Model number: 9081 (X-DCG330) Please do not return is in conformity with the applicable requirements of the following documents this item for any Ref.
