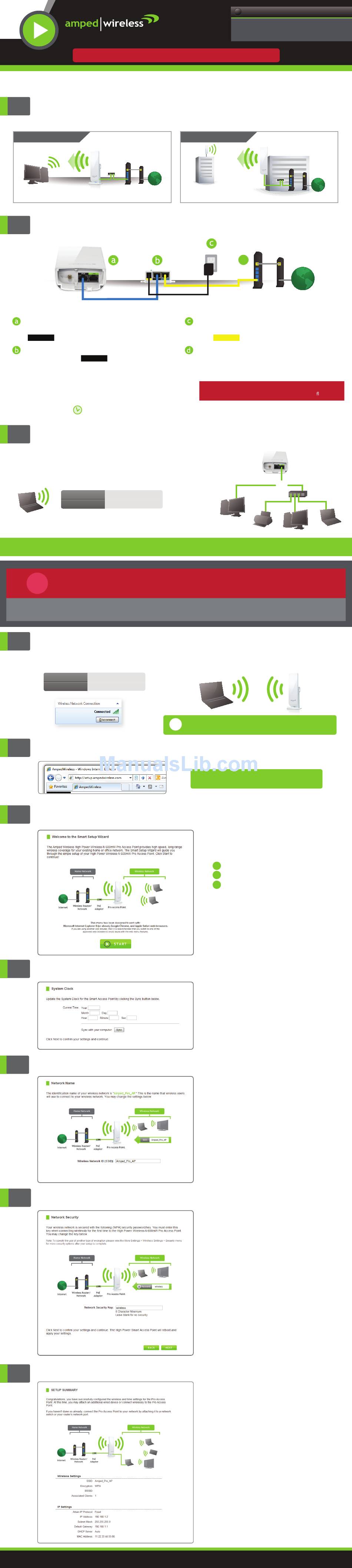

Amped Wireless AP600EX Setup Manual

SETUP GUIDE
High Power Wireless-N 600mW Pro Access Point
1
Find a location for installation
View the package insert for instructions on how to optimally position the Pro Access Point.
INDOOR SETUP
Pro Access Point
2
Connect the Pro Access Point to your Router or Network Switch
Open the lid of the Pro Access Point and check
that the PoE cable is securely fastened to the
port.
POE
Locate the PoE Adapter and connect the 30 ft
PoE cable to the
adapter.
3
Connect your Computer to the Pro Access Point

Wireless Connections:

Scan for available wireless networks on your
PC and connect to the following network:
NETWORK ID:
PASSWORD:
!
The instructions below are optional. You may now use your Pro Access Point without any additional
configurations. However, if you wish to change any settings (such as network ID and security) for the Pro
Access Point, follow the instructions below to access the configuration menu of the Access Point.
Note: If your network uses static IP address assignments, you will need to manually configure the settings for your
Pro Access Point. See the instructions on the back to access the configuration menu of the Access Point.
1
Optional Configurations: Accessing the Settings Menu
Scan for available wireless networks on your
PC and connect to the following network:
NETWORK ID:
PASSWORD:
Amped_Pro_AP
2
Open your Web Browser
3
Welcome to the Smart Setup Wizard
4
Set the System Clock Time
5
Wireless Network ID
6
Wireless Network Security
7

Setup Summary

— R E A D
Router Modem Internet
(LAN Port)
Indoor range will be limited.
PWR
port on the PoE
AP
Allow up to two (2) minutes for the Pro Access Point to
automatically configure itself to your network.
Amped_Pro_AP
wireless
C ON G R ATU LATI O N S, Y O U 'R E D O N E !
Amped_Pro_AP
wireless
F I R S T
OUTDOOR SETUP
AP NETWORK
Locate the power adapter and connect one
end to a power outlet and the other end to
the
POWER
Locate the shorter network cable and connect
one end to the port on the PoE adapter and
the other to your router's network (LAN) port,
or a network switch.
Note: If you plan to use your own network cable, ensure
that the cable is a Non-PoE cable to avoid power con ict issues.
Wired Connections:
Attach any Wired Devices
Pro Access Point using an
Ethernet cable.
! If you do not wish to connect wirelessly, you may also use a wired
connection between the Access Point (LAN Port) and your computer to
access the Settings Menu.
Enter the setup web address into your browser:
http://setup.ampedwireless.com
If the URL fails to open, then try: http://192.168.1.240
The Smart Setup Wizard will guide you
through the following settings:
1
2
3
Click Start
The System Clock is used for system logs
and setting schedules for Internet access.
Click Sync
with the time on your computer.
Click Next
The ID of your Wireless Network is:
Amped_Pro_AP
To change it, enter a new name in the SSID field.
Users connecting wirelessly to the Pro Access Point
will use this ID to identify your wireless network.
Click Next
The default Security Key (WPA) of your
wireless network is:
To change it, enter a new key in the Security Key
field. The key must be at least 8 characters long.
Click Next
The Pro Access Point will reboot. This
process may take up to 2 minutes. The
page will automatically reload after the
countdown. If it does not, you may need
to reconnect to the Access Point and
refresh the page manually.
The Setup Summary provides you with
information regarding your current settings.
If you have wired network devices, you may
attach them to the wired ports on the back
of the Pro Access Point for additional wired
connectivity.
If you have any questions during the setup process
please contact Amped Wireless support department:
Phone:
Email:
Web:
?
Need Help? Give us a call.
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
—
