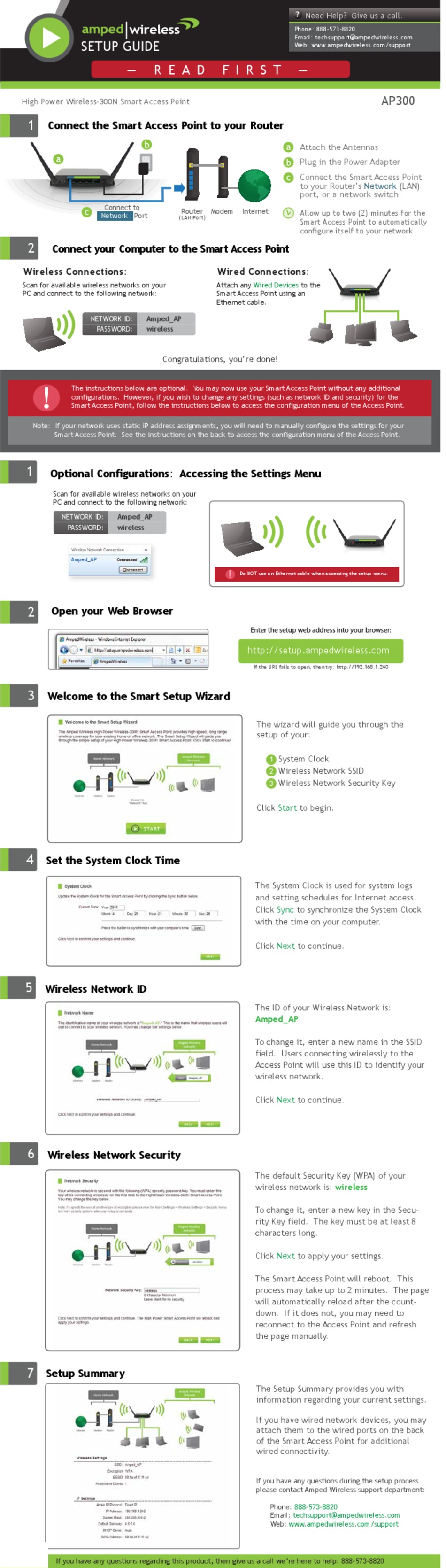

SETUP GUIDE
High Power Wireless-300N Smart Access Point
1
Connect the Smart Access Point to your Router
Network
2
Connect your Computer to the Smart Access Point

Wireless Connections:

Scan for available wireless networks on your
PC and connect to the following network:
NETWORK ID:
PASSWORD:
!
The instructions below are optional. You may now use your Smart Access Point without any additional
configurations. However, if you wish to change any settings (such as network ID and security) for the
Smart Access Point, follow the instructions below to access the configuration menu of the Access Point.
Note: If your network uses static IP address assignments, you will need to manually configure the settings for your
Smart Access Point. See the instructions on the back to access the configuration menu of the Access Point.
1
Optional Configurations: Accessing the Settings Menu
Scan for available wireless networks on your
PC and connect to the following network:
NETWORK ID:
PASSWORD:
Amped_AP
2 Open your Web Browser
3
Welcome to the Smart Setup Wizard
4
Set the System Clock Time
5
Wireless Network ID
6
Wireless Network Security
7

Setup Summary

If you have any questions regarding this product, then give us a call we're here to help: 888-573-8820
— R E A D
Connect to
Router
Port
(LAN Port)
Amped_AP
wireless
Congratulations, you're done!
Amped_AP
wireless
F I R S T
Modem Internet
Wired Connections:
Attach any Wired Devices
Smart Access Point using an
Ethernet cable.
!
Do NOT use an Ethernet cable when accessing the setup menu.
Enter the setup web address into your browser:
http://setup.ampedwireless.com
If the URL fails to open, then try: http://192.168.1.240
The wizard will guide you through the
setup of your:
1) System Clock
1
2) Wireless Network SSID
2
3) Wireless Network Security Key
3
Click Start
The System Clock is used for system logs
and setting schedules for Internet access.
Click Sync
with the time on your computer.
Click Next
The ID of your Wireless Network is:
Amped_AP
To change it, enter a new name in the SSID
field. Users connecting wirelessly to the
Access Point will use this ID to identify your
wireless network.
Click Next
The default Security Key (WPA) of your
wireless network is:
To change it, enter a new key in the Secu-
rity Key field. The key must be at least 8
characters long.
Click Next
The Smart Access Point will reboot. This
process may take up to 2 minutes. The page
will automatically reload after the count-
down. If it does not, you may need to
reconnect to the Access Point and refresh
the page manually.
The Setup Summary provides you with
information regarding your current settings.
If you have wired network devices, you may
attach them to the wired ports on the back
of the Smart Access Point for additional
wired connectivity.
If you have any questions during the setup process
please contact Amped Wireless support department:
Phone:
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
?
Need Help? Give us a call.
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
—
Attach the Antennas
Plug in the Power Adapter
Connect the Smart Access Point
to your Router's Network (LAN) Network
port, or a network switch.
Allow up to two (2) minutes for the
Smart Access Point to automatically
configure itself to your network
to the
to begin.
to synchronize the System Clock
to continue.
to continue.
wireless
to apply your settings.
888-573-8820
AP300
