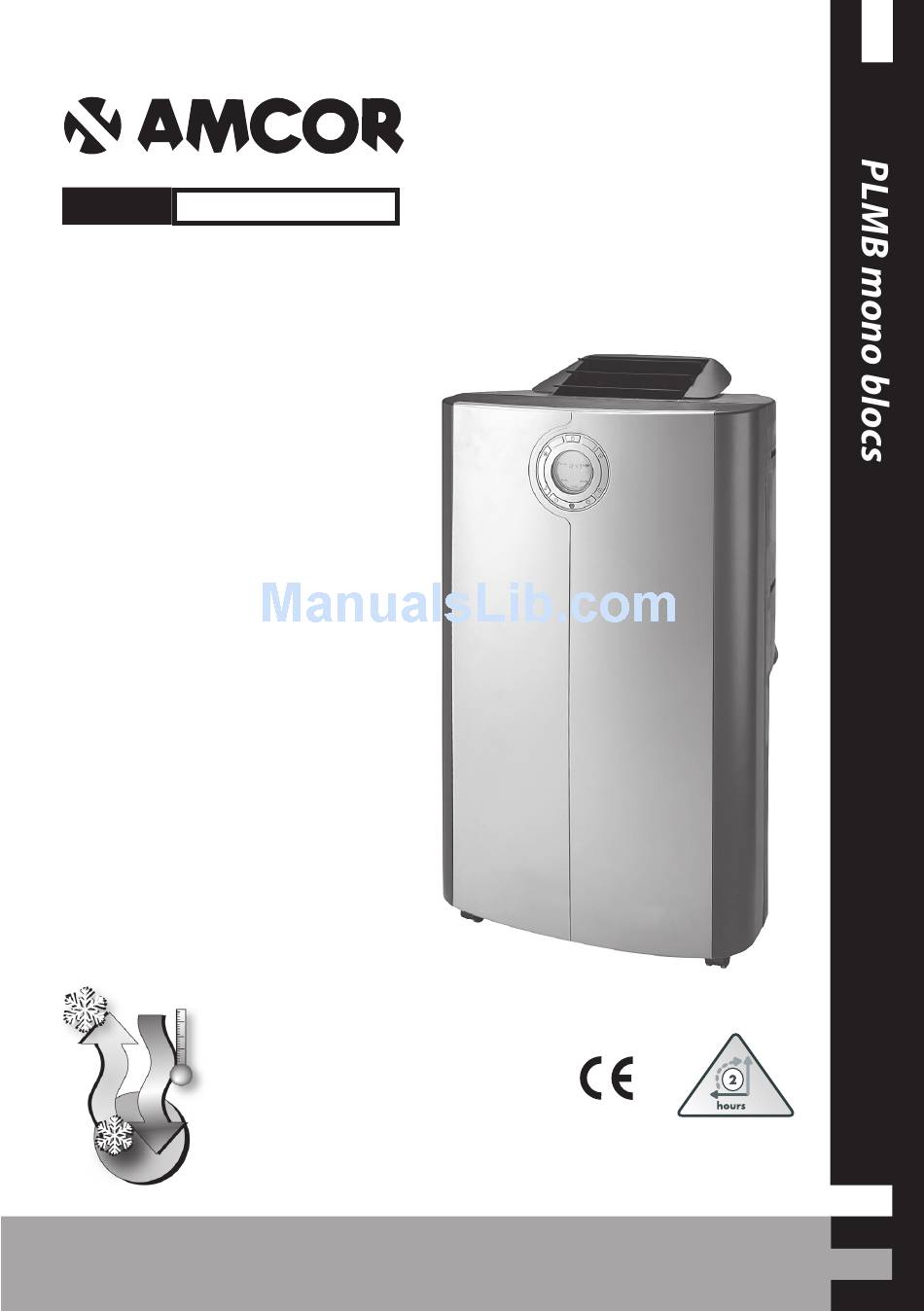

- Page 1 ENGLISH INSTRUCTION MANUAL PLMB 9KE(H)-410/12KE(H)-410/15KE(H)-410 PLUS HEATER VERSIONS...
-
Page 2: Electric Connection
THANK YOU! Thank you for choosing this innovative Amcor air conditioner. We suggest that you keep this manual in a safe place for future reference. It describes the many benefits and advanced features this unique product has to offer. Before you use your new air conditioner you should carefully read these instructions to maximise this product’s performance. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • The unit is designed for indoor operation. • Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet. • The installation must be in accordance with regulations of the country where the unit is used. - Page 4 PARTS Air outlet Control panel Upper air inlet Carrying handle Exhaust air outlet Lower air inlet Cable storage Caster wheels Drainage point with water stopper HOURS:MINUTES TE MPERATURE Water container Exhaust hose Remote control Air filters Slide bar Telescopic slide bar connector Controls Display...
-
Page 5: Installation
INSTALLATION WARNING! Before using the air conditioner it should be left in an upright position for at least 2 hours. This unit can easily be moved from one room to another. In doing so keep this in mind: – Ensure that the unit is positioned upright, on a level surface and 50 cm away from obstacles. –... - Page 6 Setting the temperature If you want to change the set temperature press to set the temperature. The 2 digit display will indicate the set temperature. Note: Reaching the set temperature depends on the room and outdoor climatic conditions. Mode switch Press the button successively until the icon representing the desired mode is appearing (=>...
-
Page 7: Air Flow
Programming the timer for OFF - when the unit is RUNNING. • Perform the standard steps as described above. The circular time scale will be on between the present time to the OFF programmed time. The flashing bar on the time scale indicates the real time and moves a segment ahead every 30 minutes until it reaches the OFF timer time, then the black segments in the circular time scale will disappear. -
Page 8: Air Filter
Sleep mode The sleep mode function adjusts the set temperature of the unit to the thermal needs of the body falling asleep as follow: • Default fan speed: LOW • Press the -button to operate the sleep mode. Press the -button again in order to cancel the sleep mode. -
Page 9: Remote Control
The old filters can be disposed in the ‘Non-biological garbage container’ . • Replacement filter packages are available directly from Amcor. • To run the unit without active carbon filter does not do any harm to the air conditioner. In this case odours and unhealthy dust are not removed from the circulated air. -
Page 10: Continuous Drainage
CONTINUOUS DRAINAGE • Switch off the unit and remove the plug from the mains. • Remove the water stopper and rubber plug. • Connect a drain tube (ø 20 mm inner dimension) onto the water outlet and extend with extra water tube if needed. •... -
Page 11: Technical Data
filter at the beginning of the new season. The old filter can be disposed of in the ‘Non-biological rubbish container. • Replacement filter packages are available from Amcor. Put the unit in Fan Only mode for a few hours to ensure that the inside becomes completely dry.
