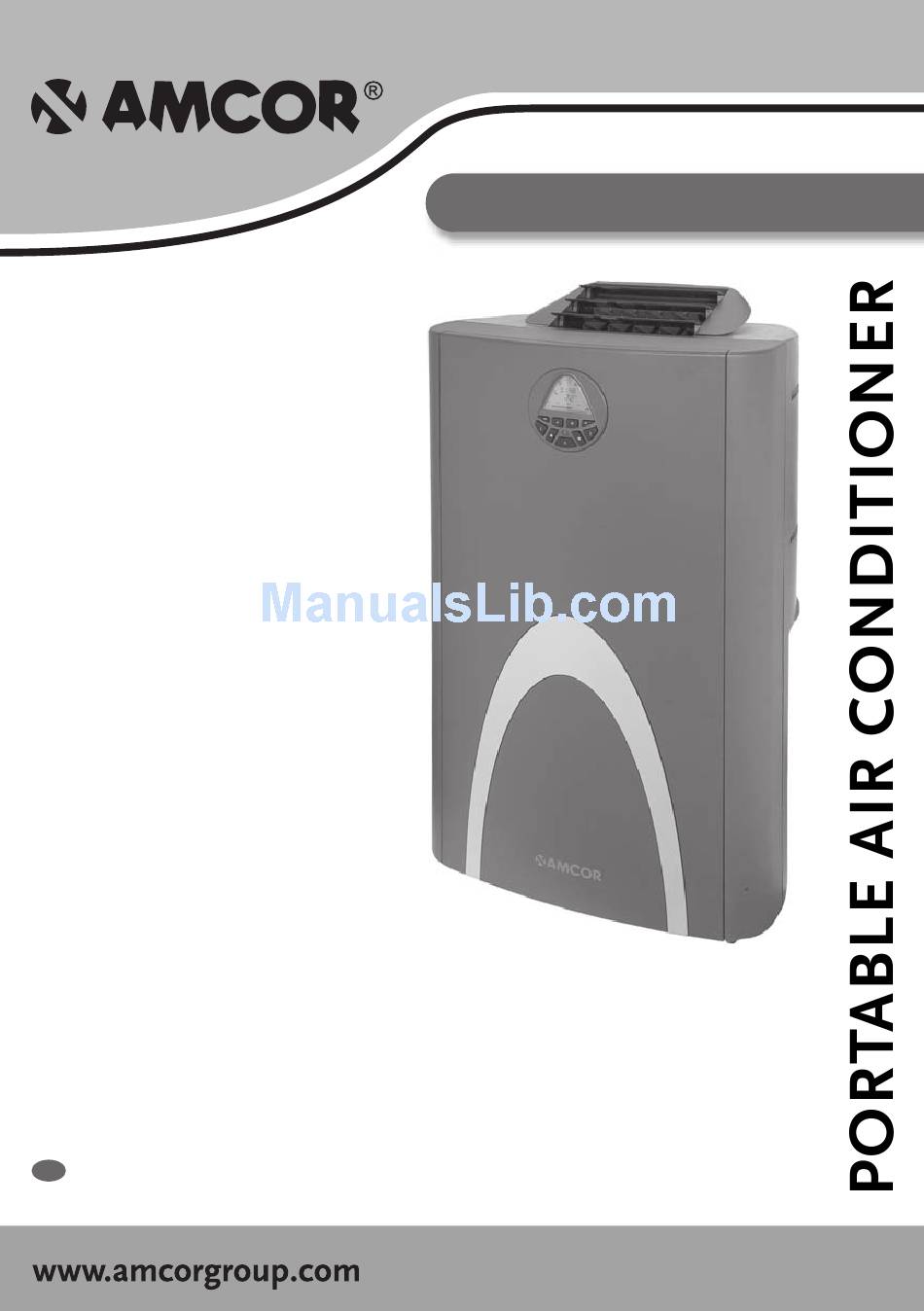

- Page 1 PVMB 9KEH-410 12KEH-410 15KEH-410 Portable air conditioner...
- Page 2 THANK YOU Thank you for choosing this innovative Amcor air conditioner. We suggest that you keep this manual in a safe place for future reference. It describes the many benefits and advanced features this unique product has to offer. Before you use your new air conditioner you should carefully read these instructions to maximise this product’s...
- Page 3 WARNING • Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges. • A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person in order to avoid a hazard. •...
- Page 4 PARTS 1. Air outlet 5. Grill housing 2. Control panel 6. Upper air inlet 3. Carrying handle 7. Exhaust air outlet 4. Caster wheels 8. Lower air inlet 9. Cable storage 10. Drainage point with water stopper Water container Exhaust hose Active carbon filter Remote control with LCD...
- Page 5 INSTALLATION WARNING! Before using the air conditioner it should be left in an upright position for at least 2 hours. This unit can easily be moved from one room to another. In doing so keep this in mind: – Ensure that the unit is positioned upright, on a level surface and 50 cm away from any obstacles.
- Page 6 CONTROL PANEL AND DISPLAY Cooling Fan speed Sleep mode Clock/timer Temperature Timer settings Heating Sleep mode Timer Swing Down Mode Sensor remote ON/OFF control...
- Page 7 OPERATION ON/OFF Press to switch the unit on, or to switch off. A buzzer will beep, and the LCD will display 12:00 o’clock as default. Setting the clock Press the -button for 3 seconds to set the clock. The 2 left digits of the 4 digits on the LCD-display will flash.
- Page 8 Programming the timer for ON - when the unit is OFF. • Perform the standard steps as described above. The linear time scale will be on between the ON programmed times until 24:00. The flashing bar on the time scale indicates the real time and moves a segment ahead every 30 minutes until it reaches the ON timer time, then the black segments in the linear time scale will disappear.
- Page 9 Air flow On the moment the air conditioner is connected to the mains, the louvres open and close and stay closed. • When the ON-button is pressed, the louvres open to maximum and return to an angle of 75° above the upper plane of the louvres housing. •...
- Page 10 REMOTE CONTROL The unit responds to all signals that are sent by the remote control. There will be a beep sound from the unit after receiving the signal. The operation of the unit by remote control, is almost identical to the operation by the control panel.
- Page 11 The old filters can be disposed in the ‘Non- biological garbage container’. • Replacement filter packages are available directly from Amcor. • To run the unit without active carbon filter does not do any harm to the air conditioner.
- Page 12 EMPTYING THE INTERNAL WATER CONTAINER Under high humidity conditions it may be necessary to empty the internal water container. When the internal water container is full the backlight on the LCD-display flashes. The unit will switch off automatically. To empty the water container do the following: •...
-
Page 13: Trouble Shooting
• The old filters can be disposed of in the ‘Non-biological rubbish container’. Replacement filter packages are available from Amcor. • Put the unit in Fan Only mode for a few hours to ensure that the inside becomes completely dry. -
Page 14: Technical Data
TECHNICAL DATA Model PVMB PVMB PVMB 9KEH-410 12KEH-410 15KEH-410 BTU/h 7500 9400 11300 Cooling capacity measured conform EN 14511 2.75 Power consumption Cooling 1.75 Heating Mains V / Hz / Ph 220 – 240 / 50 / 1 Fan speeds Thermostatic range °C 18 –... - Page 15 Tel: +972 9 9515351 Heng Li Town, Dongguan City, Fax: +972 9 9585650 Guangdong Province, China Email: amcoril@amcorgroup.com Plant One - Amcor (China) Ltd Singapore Tel: +86 769 8372 1090 Amcor Investments (Singapore) Pte Ltd Fax: +86 769 8372 1790 545 Orchard Road, Email: amcorcn@amcorgroup.com...
