Owner's
Manual
Portable Air Conditioner
Model PCMB-12000E / PCMB-12000EH
It is important
that you read
these instructions
before using your
new purchase and
we strongly recom-
mend that you keep
them in a safe place
for future reference.
Innovative AutoDrain NanoMist Technology
™
Patent Pending
www.amcorgroupusa.com
Advertisement
Table of Contents
Related Manuals for Amcor PCMB-12000E
Summary of Contents for Amcor PCMB-12000E

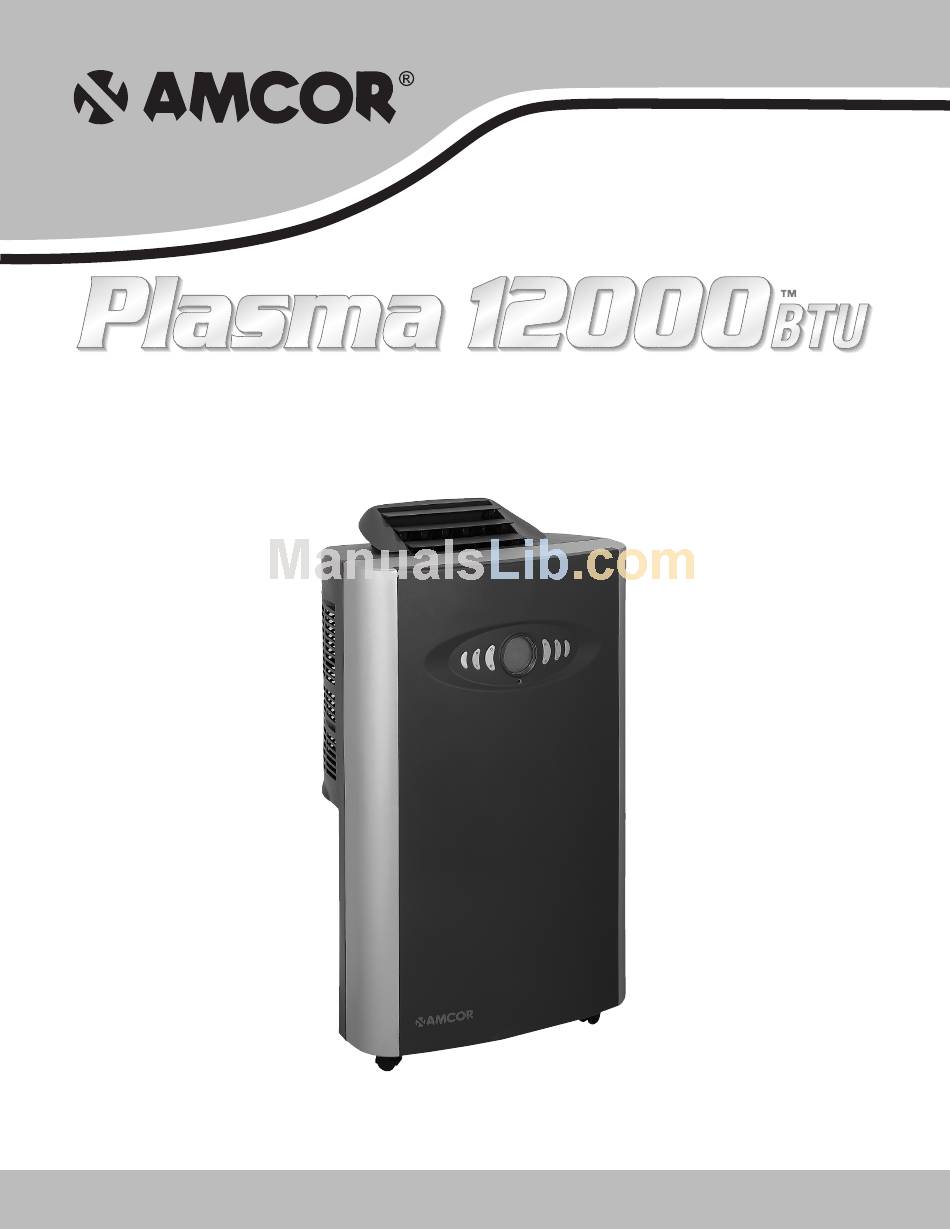

- Page 1 Owner’s Manual Portable Air Conditioner Model PCMB-12000E / PCMB-12000EH It is important that you read these instructions before using your new purchase and we strongly recom- mend that you keep them in a safe place for future reference. Innovative AutoDrain NanoMist Technology ™...
-
Page 3: Table Of Contents
Table of Contents THANK YOU ……………………………………………………………………… 2 Energy Saving Tips …………………………………………………………… 2 SPECIFICATIONS ………………………………………………………………… 3 BEFORE USE ……………………………………………………………………… 4 THE PCMB UNIT / PARTS ………………………………………………………… 5 AUTODRAIN NANOMIST TECHNOLOGY™ ASSEMBLY ……………………… 6 INSTALLATION OF THE WINDOW KIT ………………………………………… 7 Window Kit Installation ……………………………………………………… 7 INSTALLATION ……………………………………………………………………... -
Page 4: Thank You
Thank You! Thank you for purchasing an AMCOR Portable Air Conditioner. AMCOR is a leading brand in indoor air treatment. We would like you to enjoy the many benefits this unit offers, so please read this manual carefully and take full advantage of the many advanced features that your AMCOR Portable Air Conditioner offers you. -
Page 5: Specifications
Subject to modifications without prior notice. Please refer to the rating label for greater precision. Specifications PCMB-12000E 12,000 BTU/hr 1,100 W / 9.8 A 115V / 60Hz / 1 Phase 80 pints / Day Up to 400 sq. -
Page 6: Before Use
IMPORTANT! • Leave the unit in an upright position for at least 2 hours before use. • Always place the unit on an even surface. • The power cord has a built-in L.C.D.I. (Leakage Current Detection and Interruption) circuit breaker for added safety. If the power supply is interrupted, please press the reset button to reconnect the unit to the power source. -
Page 7: The Pcmb Unit / Parts
Air Filter (Pre-installed) Spiral Water Pipe with Connector Display 24:00 18:00 12:00 The PCMB Unit Air Outlet Control Panel Air Inlet Carrying Handle Exhaust Air Outlet Water Stopper / Drain Cap Castor Wheels Parts Remote Control Insulation Strip Slide Bar Connector 00:00 06:00 08:15 HOURS: MINUTES... -
Page 8: Autodrain Nanomist Technology™ Assembly
AutoDrain NanoMist Technology Attach Window Slide Bar Connector to Exhaust Hose by twisting as shown. Connect the female half of the quick connector at the end of the spiral water pipe to the male part in the hot air outlet pipe. Assemble the hot air hose on the unit. -
Page 9: Installation Of The Window Kit
AutoDrain NanoMist Technology Installation of the Window Kit In order for this unit to function properly, it must be vented to the outside. Fitting the Exhaust Hose through a window is easy. Please see below. Window Kit Installation: 1. Extend Exhaust Hose at least 6" and insert it into back of the unit, tightening into place by turning it clockwise. -
Page 10: Installation
Installation WARNING! The length of the exhaust pipe is specially designed according to the specification of this product. Do not extend it with your own hose, as this could cause the unit to malfunction... -
Page 11: Operation
IMPORTANT: The air conditioner should be left in an upright position for at least two hours A. Turning the Unit On: 1. Plug the unit into a working electrical outlet. 2. Make sure the green light on the plug is on. (If not, press the Reset button.) 3. -
Page 12: To Set The Timer
Timer The TIMER function allows you to program the time the unit turns on and turns off. TO SET THE TIMER: • Press the TIME button briefly, the 2 hour digits will flash. • Press the UP or DOWN button to adjust the hour. •... -
Page 13: Canceling The Timer Function
The unit will operate daily according to the timer setting, unless changed. After a power failure, or after the unit has been unplugged, you will have to program the timer settings again. Canceling the Timer Setting In order to cancel the timer programming press the TIME button. Sleep Mode The SLEEP MODE gradually adjusts the temperature of the unit 4 degrees upward, over a 3 hour period, to meet the needs of a body at rest. -
Page 14: Remote Control
Remote Control To Operate the Remote Control: Insert batteries by pulling down on front cover (See fig. 1). Be sure the remote is pointed at the unit at all times. 1. To Set the Clock: • Press the TIME button for 3 seconds. •... -
Page 15: Emptying The Internal Water Container
Emptying the Internal Water Container Note: There are two instances where draining the internal water container may be recommended: 1. In the unlikely event that the Container Full Light on the LCD display flashes 2. Prior to storage of unit. When the internal water container is full, the back light on the LCD display flashes. -
Page 16: Maintenance
NOTE: • Before storage be sure filters are clean and dry. • Should you need to replace filters, contact Amcor for replacement. • The screen filter must always be used. • The 3M™ High Air Flow filter should be cleaned periodically. Both filters can be vacuumed. -
Page 17: Troubleshooting
If you have any questions regarding the operation of the this product please contact AMCOR at 1-866-361-2233 To purchase Replacement Filters for this unit, contact AMCOR at 1-866-361-2233 and request model number PCMB-12000E/EH If this product is defective or not working properly, please DO NOT return to your retail store. - Page 18 Don’t forget to register your Amcor purchase online, and view our broad selection of innovative products. www.amcorgroupusa.com...
-
Page 20: Warranty
(5 Years for Compressor Only Amcor, Inc. (“Amcor”) warrants the original retail purchaser (“Purchaser”) purchasing in the United States that the Amcor product with which this warranty is enclosed is free from defects in materials and workmanship. Amcor’s sole obligation under this warranty is to replace, or at Amcor’s discretion, to repair, free of charge, all defective parts, for a period of one (1) year from date of original purchase.
