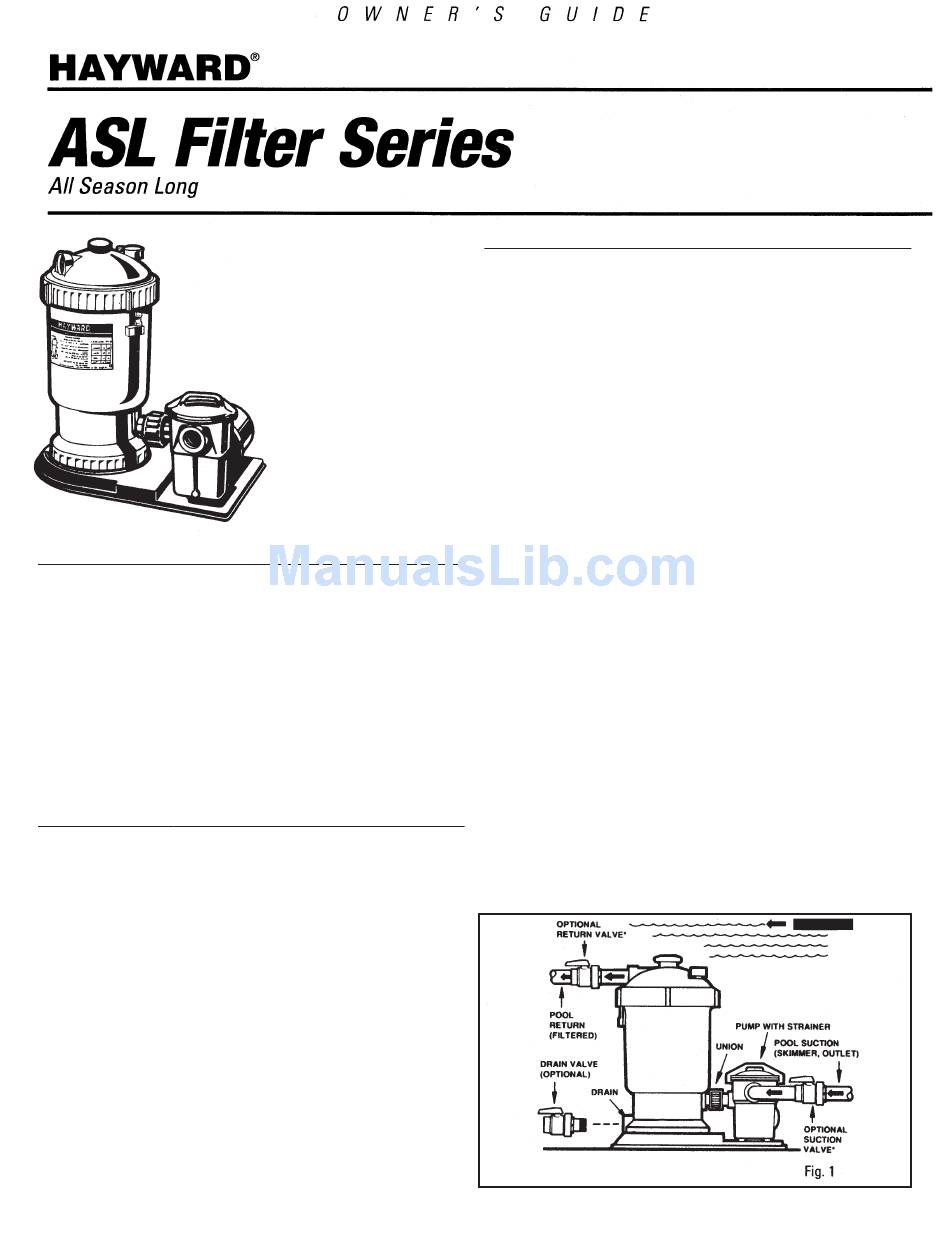

Hayward C85075XES Owner's Manual

A. FEATURES
• New glass reinforced, non-corrosive PermaGlassXL filter tank will
provide years of trouble-free operation.
• Easy-Lok™ ring design allows quick access to all internal
components.
• Unique safety latch prevents unwanted entry into the tank.
• Self-venting design automatically purges any air present in the
system.
B. SYSTEM LOCATION
1. Though the filter is designed for outdoor use, it is advisable to
protect electrical components from the weather. Select a
well-drained area, one that will not flood when it rains.
2. For best pump performance, place the system below the swimming
pool water line.
3.
Set the filter and pump on firm, level ground. Position the tank for
easy access to the internals, and pressure gauge, with at least
24"/610 mm (C85075XES) or 27"/686 mm (C125080X5S) of top
clearance. Position the filter so that it may drain by gravity.
NOTE: ANSI/NSPI-4 Article V, standard for above-ground and
on-ground pools, advises that components such as the filtration
system, pumps and heater be positioned so as to prevent their
being used as a means of access to the pool by young children.
The ASL models C85075XES
and C125080X5S are high
performance swimming pool
filters with a maximum flow
rating of 70 gallons per
minute. Manufactured from
Hayward's exclusive
PermaGlassXL™ material,
ASL is designed to provide
years of trouble-free operation.
MODELS C85075XES, C125080X5S
C. PLUMBING
1. Use 1-1/4" or 1-1/2" I.D. flexible plastic pipe, or hose, joined with
insert fittings and stainless steel clamps. If rigid PVC is used, be
sure to provide unions for easy servicing.
2. All plumbing connections on the ASL filter are 1-1/2" N.P.T. When
making connections, use plastic male-end adapters. Apply three
turns of Teflon tape or plastic pipe sealant to the male threads.
Screw the fitting into the threads hand tight; then, using a wrench,
tighten one more full turn if necessary. Adapters have varying
tolerances and overtightening with a wrench may only cause
damage to the filter.
3. Ball-type valves are recommended where needed. (See Fig. 1)
4. Securely hand tighten the union nut between the filter and pump.
Connect the pool suction plumbing between the skimmer, pool
5.
outlet, and the pump.
6. Connect the pool return (inlet) plumbing.
7. A drain plug is furnished with each filter and is all that is needed
for complete filter draining. A manual air vent valve is furnished to
aid in the bleeding of unwanted air when starting or draining the
filter.
8. All electrical connections should be made in accordance with local
codes.
9. Refer to pump instruction book for pump information.
PREFERRED FILTER LOCATION —BELOW WATER LINE
*Not furnished with filter.
