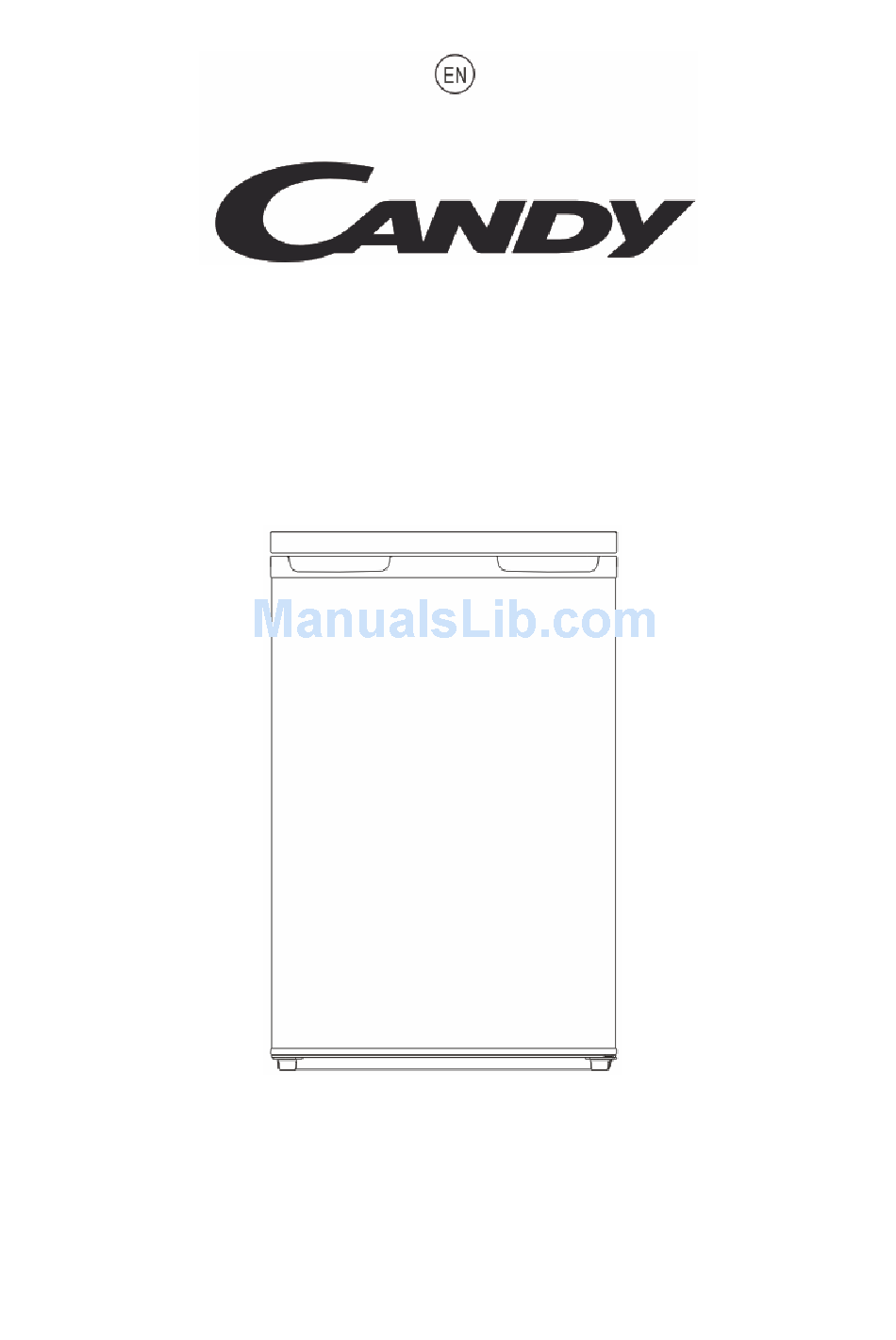

REFRIGERATOR Instruction Manual CFL 195 EE Note: Due to unceasing product modifications, your refrigerator may be slightly different from this Instruction Manual. However, all functions and using methods remain the same.
Page 2
Dear customer, Before placing your new refrigerator/freezer into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.
Contents Important Safety Instruction ---------------------------------------------------------------page 4 Remove transport packaging -------------------------------------------------------------page 6 Installation -------------------------------------------------------------------------------------page 6 Positioning -------------------------------------------------------------------------------------page 6 Description of the appliance ---------------------------------------------------------------page 7 View of the appliance ------------------------------------------------------------------------page 7 Reversing the door----------------------------------------------------------------------------page 7 Starting up and temperature regulation -------------------------------------------------page 9 Interior Accessories --------------------------------------------------------------------------page 9 Defrosting --------------------------------------------------------------------------------------page 10 Cleaning and Care ---------------------------------------------------------------------------page 11...
Important safety instructions These warnings are provided in the interests of your safety. Ensure you fully understand them before installing or using the appliance. Your safety is paramount importance. If you are unsure about the meaning of these warnings contact the Customer Care Department for assistance. Intended use This appliance is intended to be used in household and similar applications such as –...
Page 5
defrosting process, other than those recommended by the manufacturer. WARNING!— Do not damage the refrigerant circuit. WARNING!— Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING! —...
explosion! Do not store any containers with flammable materials such as spray cans, fire extinguisher refill cartridges etc in the refrigerator and/or freezer. Do not operate any electrical appliances in the refrigerator and/or freezer (e.g. electric ice cream makers, mixers etc.). Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
16~38°C 16~43°C Appliances must not be exposed to rain. Sufficient air must be allowed to circulate in the lower rear section of appliances, as poor air circulation can affect performance. Built-in appliances should be positioned away from heat sources such as heaters and direct sunlight. Description of the appliance View of the appliance 1.
Page 8
2. Unscrew and lift the lid from the rear and remove it, then lift the door and place it on a padded surface to prevent it scratched. 3. Remove the upper hinge core, transfer it to left side and tighten securely, then put it in a safe place 4.
Warning! When changing the side at which the door opens, the appliance must not be connected to the mains. Remove plug from the mains beforehand. Starting up and temperature regulation Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal lighting is switched on.
guides, above the fruit and vegetable containers, and keep it in this position. The height of the storage shelves can be adjusted: To do this, pull the storage shelf forward until it can be swiveled upwards or downwards and removed. Please do the same in reverse to insert the shelf at a different height.
Water contained in food or getting into air inside the fridge be opening doors may form a layer pf frost inside. It will weaken the refrigeration when the frost is thick. While it is more than 10mm thick, you should defrost. Defrosting in fresh food storage compartment It is automatically controlled by switching the temperature regulator on or off so that there is no need of operation of defrosting.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contain acetic acid. Do not allow such substances to come into contact with appliance parts. Do not use any abrasive cleansers. Remove the food from the refrigerator.
Page 13
Spare parts: The following spare parts can be ordered from your local Service Force Center. You can fit these yourself without any special skill or training, e.g.: butter/cheese compartment, egg holders, door racks, fruit and vegetable drawers, storage racks. A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions.
Unusual noises. Appliance is not level. Readjust the feet. The appliance is touching the wall or Move the appliance slightly. other objects. A component, e.g. a pipe, on the rear If necessary, carefully bend the of the appliance is touching another component out of the way.
Even after the compressor has been switched off, this noise can be heard for a short time. This appliance is in accordance with the following EU guidelines: 2006/95/EC and 2004/108/EC and 2009/125/EC and EC.643/2009 Disposal of the appliance It is prohibited to dispose of this appliance in domestic household waste. For disposal there are several possibilities: a) The municipality has established collection systems ,where electronic waste can be disposed of at least free of charge to the user.
