Summary of Contents for JK Audio Voice Path

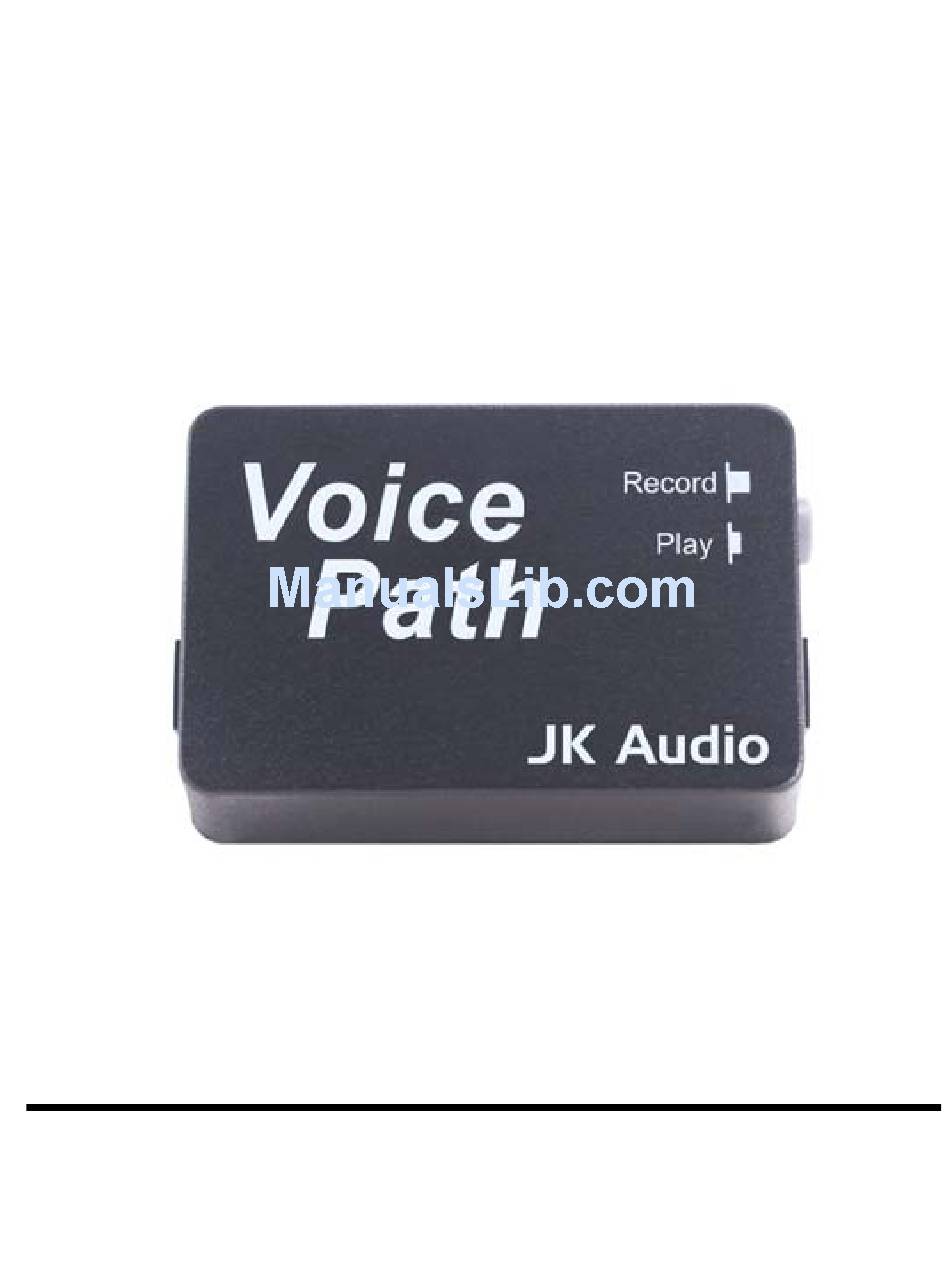

- Page 1 Voice Path Telephone Handset Audio Tap User Guide JK Audio...
- Page 2 This can be an audio CD playing in your computer’s CD ROM drive, a conversation previ- ously recorded from the VOICE PATH, or any other audio on your computer that would normally play through your computer speakers.
- Page 3 2. Using the black handset jumper cord that we have provided, connect the telephone base jack of VOICE PATH to the handset jack on the base of your telephone. 3. Plug your handset cord, and handset (or headset) into the handset jack on VOICE PATH.
- Page 4 Connection (continued) Handset Type Switch The three position switch on the back of VOICE PATH selects the type of microphone that is in the handset of your telephone. When you push in the Playback button, VOICE PATH replaces the handset microphone signal with a circuit that must match the characteristics of the handset microphone.
-
Page 5: Operation
PC cable. Recording After connecting the Voice Path as described on page 3, recording a conversation is simple. Make certain the Record / Playback button is in the “Out” position, then start your recording from your software controls. - Page 6 To continue using your computer speakers while Voice Path is connected, use a “Y” adapter on your sound card line output jack. Connect the Voice Path “To Phone” cable to one jack on the adapter and your com- puter speakers to the other. You should then follow...
- Page 7 Will the Voice Path work with this headset? If the amplifier was designed to connect to any tele- phone's handset jack then yes. The Voice Path goes between the amplifier and your telephone base. Simply connect the Voice Path modular jack marked "Phone base"...
- Page 8 Complete a call to a friend who can listen and evalu- ate the signal. You will be able to hear their com- ments during the call. • Set the gray pushbutton on the Voice Path to the in position. This disables the handset microphone and enables the audio input. •...
-
Page 9: Specifications
1500 Volts Handset and Telephone connectors: Modular 4pin/4wire handset jacks Handset Compatibility: Voice Path is designed to work with most carbon, dynamic and electret handset mi- crophone types. Not for use with cellular telephones or telephones that have a keypad in the handset. -
Page 10: Fcc Registration
FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. The FCC requires us to provide the following information: 1. Connection and use with the nationwide telephone... - Page 11 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you will be notified. If this telephone equipment is to be used with a...
-
Page 12: Warranty
Warranty The model Voice Path is covered by a 2 year warranty to be free from defective workmanship and materials. In the event that the Voice Path needs repair, you must call us to get an authorization, and then carefully pack and ship it to us.
