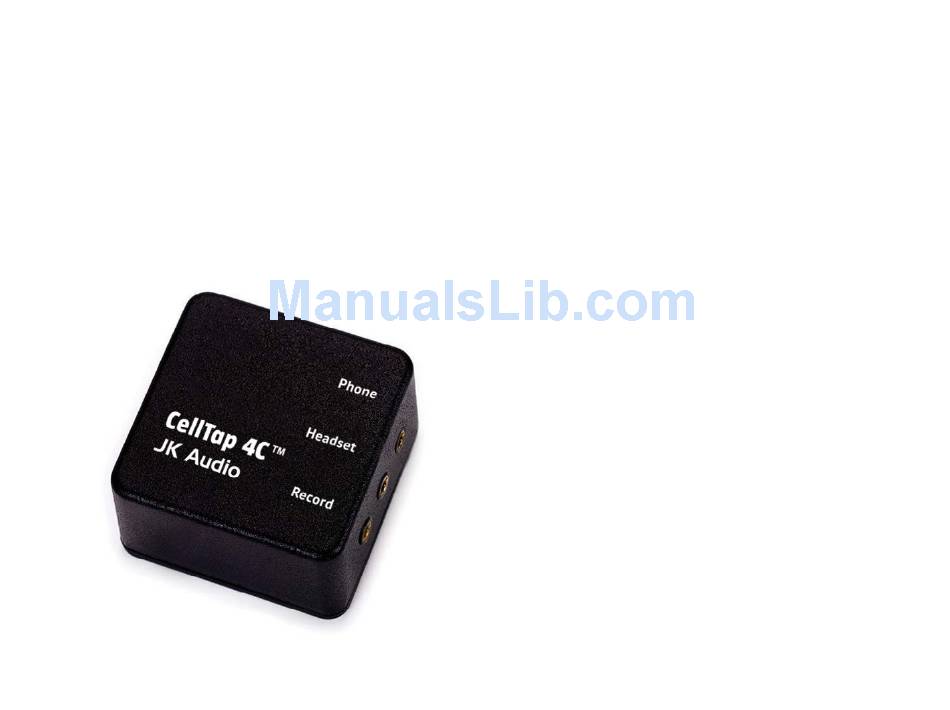

- Page 1 CellTap 4C ™ Wireless Phone Audio Tap User Guide JK Audio...
- Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the CellTap 4C is covered by a 2 year JK Audio CellTap 4C™. Please read warranty to be free from defective this guide for instructions on using it. workmanship and materials. To obtain...
- Page 3 It is also important to keep the wireless adapter cord away from any other Note: While CellTap 4C was designed to be very rugged and durable, it is not audio cords. waterproof and care should be taken to keep the unit dry.
-
Page 4: Table Of Contents
Contents Setup Overview Configuration FAQs Technical Information CellTap 4C Wireless Phone Audio Tap... - Page 5 Features Features HD Voice* Screwdriver Caller Level adjustment 3.5 mm TRRS Headset Jack Switch Selects Between Popular TRRS Configurations 3.5 mm TRRS Cable to Device Passive, no AC or Battery 3.5 mm TRS Stereo Mic Level Output Power Needed to Recorder * HD Voice.
-
Page 6: Setup
Setup Connect to your smart phone using the supplied CN150. ” ’ Connect your earbud headset. Connect to a laptop, recorder, mixer or PA system with a 3.5mm stereo cable. 00:00:00 PLAY/REC MENU CellTap 4C Wireless Phone Audio Tap... -
Page 7: Overview
Of course, audio quality is limited by the quality and placement of the microphone on the ear-bud style headset. CellTap 4C™ will not interfere with headset button controls on most devices. A headset is required for operation, as the phone will not recognize CellTap 4C without a headset connected. -
Page 8: Configuration
If the headset is not working properly, try changing the TRRS configuration. To switch the standard, disconnect all cables, open up your CellTap 4C by removing the cover, flip the switch and close it back up. The internal switch supports the... - Page 9 Configuration Caller Level Trim Pot Caller Level Trim Pot adjusts the level of Caller audio on your recordings. This adjustment lets you more closely match the level of your voice to the caller' voice. This ratio will likely remain the same after the initial adjustment. TRRS Configuration Switch Caller Level Trim Pot...
-
Page 10: Faqs
I am getting noise on cell phone? my recordings. How can I stop this? CellTap 4C has been tested with many popular brands and model phones that Some phones simply generate too use the 3.5 mm 4-conductor TRRS much Radio Frequency (RF) energy style headset. -
Page 11: Technical Information
Technical Information Specifications Output 1/8” (3.5mm) Stereo: 600 ohms, 2.4 mV RMS (-50 dBu nom.) MISC Size: 2” x 2” x 1.3” (5.1 x 5.1 x 3.3 cm) Weight: 3.5 oz Technical Information... - Page 12 CellTap 4C ™ Wireless Phone Audio Tap User Guide Version 5/12/15 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2015 JK Audio, Inc. All rights reserved. JK Audio...
