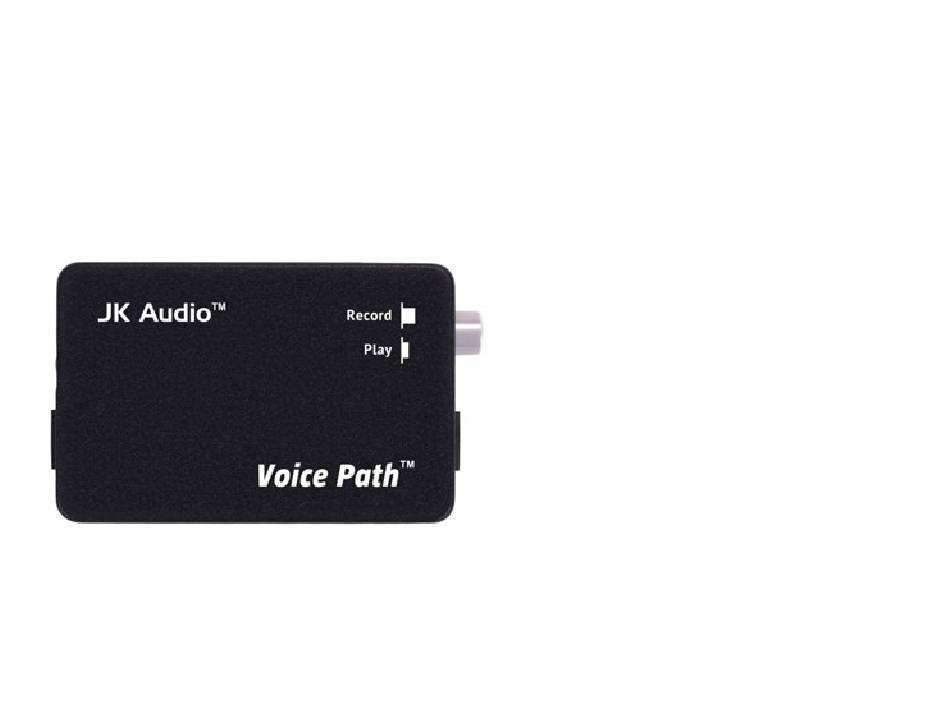

Voice Path
Telephone Handset Audio Tap
User Guide
JK Audio

Advertisement

loading
Need help?

Need help?

Do you have a question about the Voice Path and is the answer not in the manual?

Questions and answers

Summary of Contents for JK Audio Voice Path

  • Page 1 Voice Path ™ Telephone Handset Audio Tap User Guide JK Audio...
  • Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the Voice Path is covered by a 2 year JK Audio Voice Path. Please read warranty to be free from defective this guide for instructions on setting workmanship and materials. To obtain up and using your new product.
  • Page 3: Table Of Contents

    Contents Overview Setup Operation FAQs Technical Information Note: While Voice Path was designed to be very rugged and durable, it is not waterproof and care should be taken to keep the unit dry. Contents...
  • Page 4 1/8" (3.5mm) Mono Audio Input 1/8" (3.5mm) Mono Audio Output Output Level Control Switch Selects Between Carbon, Dynamic or Electret Handset Types Passive Design. No Battery or AC Required In the Box 18" Flat Handset Jumper Cable Voice Path Telephone Handset Audio Tap...
  • Page 5: Overview

    Overview Introducing Voice Path a conversation previously recorded from the Voice Path, or any other Voice Path continuously routes both audio that would normally play through sides of your conversation to the mic your computer speakers. input of your PC (or Mac) sound card.
  • Page 6 Overview Computer Voice Path Telephone Handset Audio Tap...
  • Page 7: Setup

    1. Unplug the modular handset cord from your telephone base. 2. Using the black handset jumper cord that we have provided, connect the <Phone> jack of Voice Path to the handset jack on the base of your telephone. 3. Plug your handset cord, and handset (or headset), into the <Handset> jack on Voice Path.
  • Page 8: Operation

    The three position switch on the keep in mind that there is no industry back of Voice Path selects the type standard for microphone types or of microphone that is in the handset characteristics and therefore we of your telephone.
  • Page 9 3. The level of the audio sent into microphone is disconnected while your PC can be adjusted from the Voice Path is in the Play position. back of the unit. Place a small screwdriver into the hole marked To PC Vol.
  • Page 10: Faqs

    (male) that splits into 2 stereo connect to any telephone's handset mini jacks (female). Plug the adapter jack then yes. The Voice Path goes between the amplifier and your into your sound card line output, plug your computer speakers into one telephone base.
  • Page 11 4. Set the gray pushbutton on the Voice Path to the in position. This I have a Voice Path connected disables the handset microphone between my telephone and and enables the audio input.
  • Page 12 Isolation Transformer 3.5 mm Mono Plug Output to PC Output Level Handset Jack Handset Jack from Handset to Phone Handset Mic Type Switch Isolation Transformer Signal Limiter 3.5 mm Stereo Plug Input from PC Voice Path Telephone Handset Audio Tap...
  • Page 13: Technical Information

    Technical Information Specifications Line Input 3.5 mm TRS (Left Channel Only) 10k ohms / (48" cable) 250 mV nominal Output 3.5 mm TS (Mono) 2800 ohms (48" cable) 100 mV max Misc. Isolation: 1500 VAC Handset Jack: RJ-22 Handset Type: Electret, Dynamic, Carbon Size: 3"...
  • Page 14 FCC Registration 2. Information For The Telephone Company Your new JK Audio product has been registered with the Federal Communications Upon request from your local telephone Commission (FCC). This product complies company, you are required to provide the with the standards in Part 68 of the FCC rules.
  • Page 15 FCC. Your telephone company may section of the manual. make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company. FCC Registration...
  • Page 16 Voice Path ™ Telephone Handset Audio Tap User Guide Version 3/5/19 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2019 JK Audio, Inc. All rights reserved. JK Audio...
