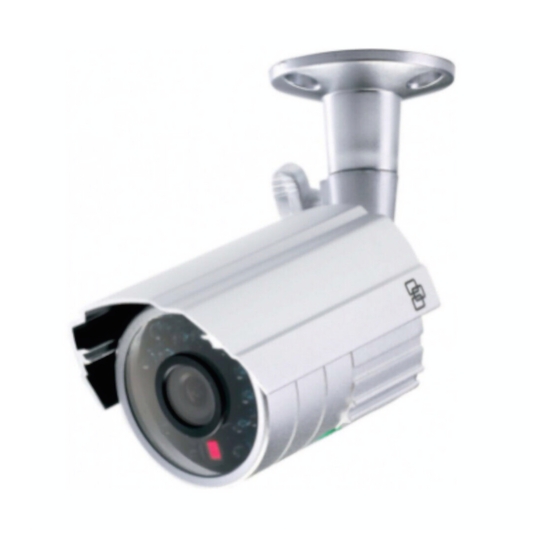

TVC-5125BE-3 Bullet IR
Camera Pocket Guide

Overview

This is the Pocket Guide for TVC-5125BE-3-P/TVC-
5125BE-3-N Bullet IR Camera. The guide describes a
standard installation.
The camera consists of the following:
• Camera with power and video output cable
• Mounting bracket
• Sunshield
Refer to the figures when performing the camera
setup procedures.
P/N 1072502A • ISS 04JUN12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVC-5125BE-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interlogix TVC-5125BE-3

Summary of Contents for Interlogix TVC-5125BE-3

  • Page 1 TVC-5125BE-3 Bullet IR Camera Pocket Guide Overview This is the Pocket Guide for TVC-5125BE-3-P/TVC- 5125BE-3-N Bullet IR Camera. The guide describes a standard installation. The camera consists of the following: • Camera with power and video output cable • Mounting bracket •...
  • Page 2 Figure 1. Parts of the camera Sunshield Video and power cables Mounting bracket...
  • Page 3 Figure 2: Camera front 18 LED IR lights Lens Light sensor...
  • Page 4 Figure 3: Mounting sticker template (mm)
  • Page 5 Figure 4: Dimensions Installation To install the camera: Using the mounting sticker as a template, place it level against the mounting surface and mark the position of the mounting holes. Following all local codes, drill and prepare the mounting holes.

  • Page 6: Specifications

    Securely fasten the mount to the mounting surface with the appropriate fasteners. If needed, seal all mounting holes so that no moisture can leak into the mounting surface. Screw the camera into the mounting bracket. Ensure that the camera is firmly attached to the bracket.

  • Page 7: Contact Information

    Dimensions (H × W × L) 55 × 50 × 65 mm (2.2 × 4.9 × 4.95 in.) Contact information For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu. Regulatory information © 2012 UTC Fire & Security. All rights reserved. Manufacturer UTC Fire & Security Americas Corporation, Inc.
  • Page 8 ACMA compliance Notice! This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Canada This Class A digital apparatus complies with Canadian ICES- 003.
