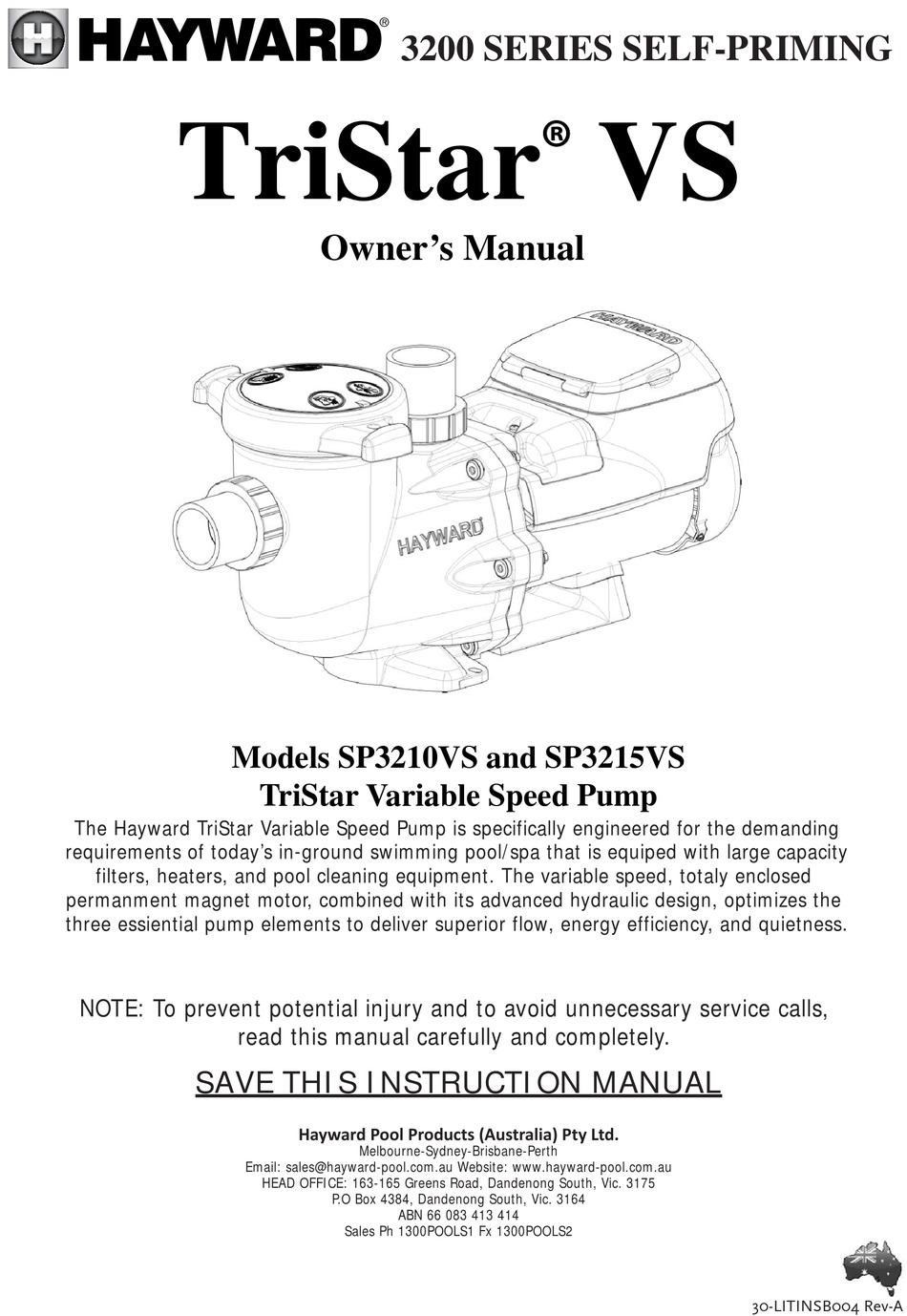

3200 SERIES SELF-PRIMING
®
TriStar VS
Owner's Manual
Models SP3210VS and SP3215VS

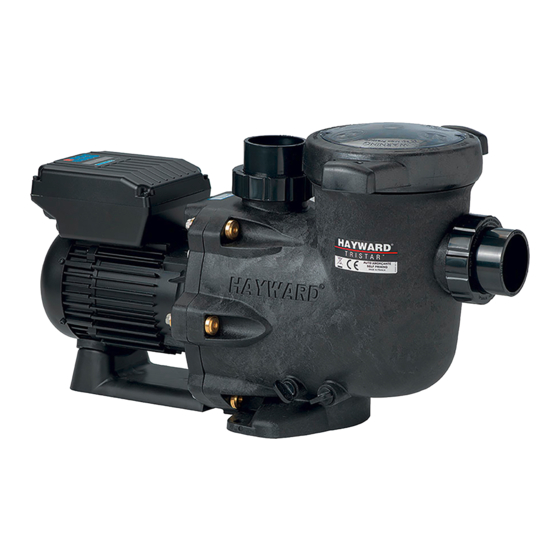

TriStar Variable Speed Pump
The Hayward TriStar Variable Speed Pump is specifically engineered for the demanding
requirements of today's in-ground swimming pool/spa that is equiped with large capacity
filters, heaters, and pool cleaning equipment. The variable speed, totaly enclosed
permanment magnet motor, combined with its advanced hydraulic design, optimizes the
three essiential pump elements to deliver superior flow, energy efficiency, and quietness.
NOTE: To prevent potential injury and to avoid unnecessary service calls,
read this manual carefully and completely.
SAVE THIS INSTRUCTION MANUAL
Hayward Pool Products (Australia) Pty Ltd.
Melbourne-Sydney-Brisbane-Perth
Email: sales@hayward-pool.com.au Website: www.hayward-pool.com.au
HEAD OFFICE: 163-165 Greens Road, Dandenong South, Vic. 3175
P.O Box 4384, Dandenong South, Vic. 3164
ABN 66 083 413 414
Sales Ph 1300POOLS1 Fx 1300POOLS2
30-LITINSB004 Rev-A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayward TriStar VS SP3210VS
Summary of Contents for Hayward TriStar VS SP3210VS
- Page 1 Models SP3210VS and SP3215VS TriStar Variable Speed Pump The Hayward TriStar Variable Speed Pump is specifically engineered for the demanding requirements of today’s in-ground swimming pool/spa that is equiped with large capacity filters, heaters, and pool cleaning equipment. The variable speed, totaly enclosed permanment magnet motor, combined with its advanced hydraulic design, optimizes the three essiential pump elements to deliver superior flow, energy efficiency, and quietness.
-
Page 2: Important Safety Instructions
All electrical wiring MUST be performed by a qualified electrical contractor, and must conform to local electrical regulations and AS/NZS 3000 Wiring Rules. Use of non-Hayward replacement parts voids warranty. ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS PRODUCT. - Page 3 - In addition to installing two or more suction outlets per pump, follow all national, state and local codes applicable. - Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS TriStar Variable Speed Pump...
-
Page 4: Product Dimensions
Introduction This manual contains information for the proper installation and operation of the Hayward TriStar Variable Speed Pump. The instructions in this manual MUST be followed precisely. Failure to install according to defined instructions will void warranty. Product Dimensions *Note: All dimensions in millimetres... -
Page 5: Electrical Specifications
• Voltage: 220 - 240 VAC ± 10% of the mean rated voltage while running, 50Hz Single Phase • Current: 5.9 amps • Power (output): 1,100 W • Speed Range: 600-3000 rpm • Ambient temperature: 0 to 40°C • Protection class: IP X5 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS TriStar Variable Speed Pump Page 5... -
Page 6: User Interface Guide
To store the changed speed for future selections, press the according speed key, i.e. V1. As long as the LED is lit again the new value is now stored in the internal memory and available permanently. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS TriStar Variable Speed Pump... - Page 7 Press the “DISP/FUNC” key until “t” is displayed on the left side of the display. On the right side of the display the power module temperature will be shown in C°. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS TriStar Variable Speed Pump...
-
Page 8: Start-Up And Operation
• Have a professional perform this test. • Ensure all Hayward pump and system components are removed from the system prior to performing the test. WARNING All suction and discharge valves MUST be OPEN, as well as the filter air relief valve (if available) on filter, when starting the circulating pump system. -
Page 9: Maintenance
• Keep the motor clean. Ensure the air vents and fan are free from obstruction to avoid damage. Do NOT use water to hose off the motor. • Occasionaly, shaft seals must be replaced due to wear or damage. Replace with genuine Hayward seal assembly kit. -
Page 10: Shaft Seal Change Instructions
• Disconnect the pump motor power cord from the power outlet before beginning the shaft seal replacement. • Only qualified personnel should attempt to replace the shaft seal. Contact your local authorized Hayward Dealer or service center if you have any questions. -
Page 11: Parts Diagram
Drain Plug with O-Ring SPX3200GA Bracket, Motor Support TriStar SPX3210VSM Motor, suit SP3210VS SPX3215VSM Motor, Suit SP3215VS SPX3200Q Adaptor - Motor Support - use on SPX3200GA in Australia - Not Shown USE ONLY HAYWARD GENUINE REPLACEMENT PARTS TriStar Variable Speed Pump Page 11... -
Page 12: Noisy Pump
4. Refer to an Authorised Service Agent or another qualified professional. Motor Cuts Out Your Hayward pump motor is equiped with Automatic Thermal Overload Protection. The motor will automaticly shut-off before heat damage buildup can occur due to abnormal operating conditions. The motor will auto-restart when a safe heat level is reached. - Page 13 Maximum current exceed Current Measurement Fails Permanently Overload During Start Up Process Short Circuit Failure Multiple Errors at the Same Time, i.e. Under voltage and Overload Communication Failure From controller USE ONLY HAYWARD GENUINE REPLACEMENT PARTS TriStar Variable Speed Pump Page 13...
- Page 14 Hayward Pool Products (Australia) Pty Ltd. Melbourne-Sydney-Brisbane-Perth Email: sales@hayward-pool.com.au Website: www.hayward-pool.com.au © 2013 Hayward Industries, Inc.
