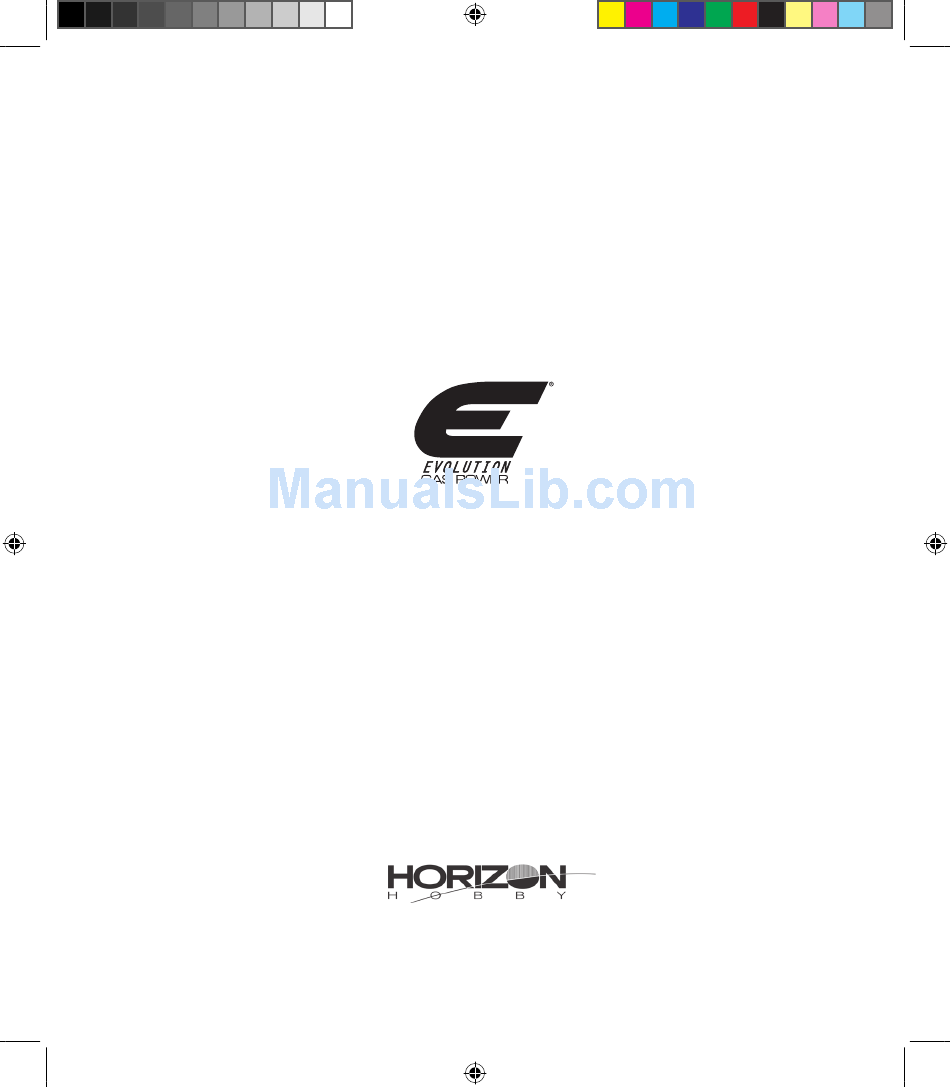

- Page 1 © 2008 Manufactured exclusively for Horizon Hobby, Inc. www.evolutionengines.com 877-504-0233 12912 12912_EVO(26GXmanual).indd 12 3/3/08 12:00:45 PM...
- Page 2 Evolution Engines 26GX U S E R G UI D E ® 12912_EVO(26GXmanual).indd 1 3/3/08 12:00:52 PM...
- Page 3 Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in If you as the Purchaser or user are not prepared to accept the liability...
- Page 4 26gX Ignition System provided. As a basic reference, the outlet area should be 3–5 times The 26GX uses an ignition system that can have the "battery test" the area of the inlet area to provide adequate cooling. function disabled or enabled. The engine comes with the ignition system Throttle Linkage battery test disabled.
-
Page 5: Starting The Engine
Adjust needle (H) for high rpm 1 turn and 35 minutes note: One of the features of the 26GX is the way the spring choke is activated and released while open. With the throttle closed, the choke will engage the throttle lever and lock into the closed position. The choke will stay locked in place until the throttle lever is slightly opened, and then the choke will automatically disengage from the throttle lever. - Page 6 After starting and warming the engine for 30–45 seconds, adjust as follows: Step I- Move the throttle to 2/3 high throttle position quickly (fast acceleration), then repeat three times. If the engine accelerates smoothly go to Step III; if acceleration is not smooth go on to Step II. Step II- Faulty acceleration and a tendency to quit is usually attributable to a poor fuel mixture in the medium rpm range.
-
Page 7: Troubleshooting Guide
Troubleshooting guide If the engine Does not Start mechanical Faults - check and use a new spark plug if needed. If the engine cannot be turned over easily - check fuel lines. - check for proper mechanical function by turning the engine - a likely cause is the piston in the cylinder is seized: over. - Page 8 26gX evolution engine Dimensions M10x1 26gX evolution engine Specifications evolution 26gX 33mm Maximum power output** Bore 3.8 HP/9000 rpm Stroke 30.1mm Maximum torque** 2.18ft-lb/8000 rpm Displacement 25.7cc/1.6 ci Fuel unleaded gasoline Weight of complete engine Lubrication oil with gasoline 936 g/2.06 lb...
-
Page 9: Evolution Gx Engine Simple Start Ignition System
evolution gX engine Simple Start Ignition System The spark ignition included with your Evolution gas engine is a modern generation electronic ignition. There are many useful functions built into the microprocessor of this unit. In addition to the basic ignition functions, the unit has a FAIL-SAFE feature: After 90 seconds of inactivity, it automatically switches to an inactive state. -
Page 10: Enabling Or Disabling Battery Test
enabling or Disabling battery Test This ignition makes it possible to enable or disable the battery test. The battery test is very useful when Li-Po or Li-Ion batteries are used. During the test, a series of flashes are generated and voltage is measured. When the battery passes the test, that means it will run for a minimum of 10 minutes in flight. -
Page 11: Programming Sequence
Programming Sequence changing the Ignition Timing If using the battery test function If not using the battery test function - Make sure plug cap is attached to the plug - If battery test is disabled (jumper is removed), plug the jumper - Turn on ignition and power up to programming pins - Wait about 90 seconds until sleep mode is active;... -
Page 12: Part Number Description
26GX Part Number Description Part Number Description EVO30013309 Spark Plug NGK 5812 EVO3094N0951 Connecting Rod (sm cap) EVO3094N0101 Crankcase EVO3094N1001 Crankshaft EVO30940202 Front Bearing EVO3094i1101 Drive Washer EV030940203 Rear Bearing EVO30941102 Drive Washer’s Taper Key EVO30940301 Rear Cover EVO30941103 Propeller Nut...
