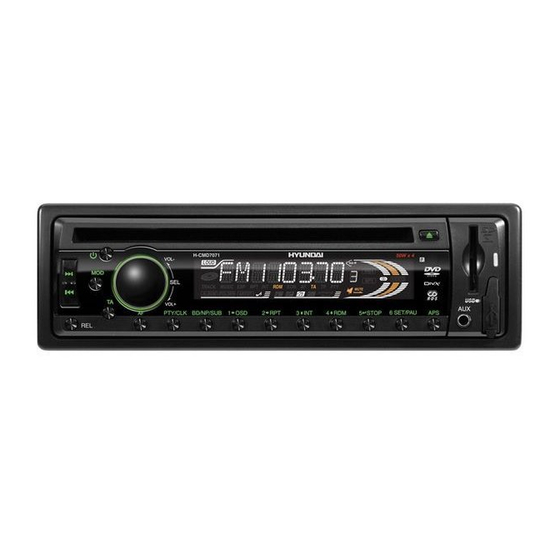

Hyundai H-CMD7071 Instruction Manual

Dvd/mp3/cd receiver
Hide thumbs Also See for H-CMD7071:
Table of Contents

Advertisement

Quick Links

Download this manual
H-CMD7071
DVD/MP3/CD RECEIVER
DVD/MP3/CD-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CMD7071 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-CMD7071

Summary of Contents for Hyundai H-CMD7071

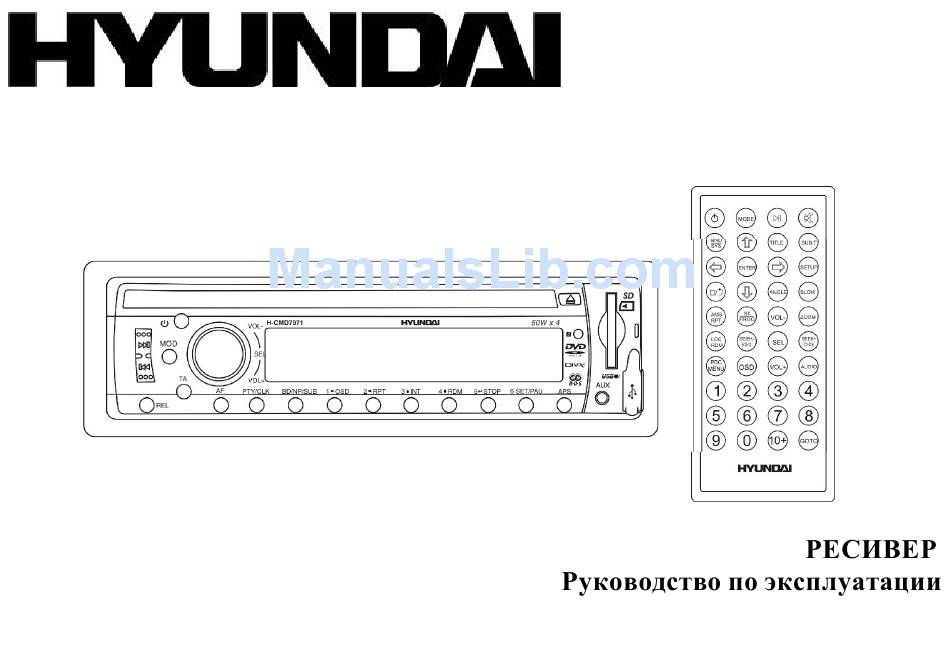

  • Page 1 H-CMD7071 DVD/MP3/CD RECEIVER DVD/MP3/CD- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents....................................2 Important safeguards..................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Remote controller 1 pc Carrying case 1 pc Front panel 1 pc ISO connector 1 pc Mounting parts: Hexagon nut M5 T (3.5 mm) 1 pc Mounting box 1 pc Left key 1 pc Right key 1 pc Metal bar 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
  • Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side. 2. Screw. 3. Factory radio mounting brackets. 4. Vehicle dashboard. 5.
  • Page 8 Connection diagram:...
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. 3.

  • Page 10: Controls Description

    Controls description Front panel 1. Disc slot 6/SET/PAU button 2. PREV/NEXT buttons APS button 3. REL button AUX in jack 4. TA button USB port 5. AF button SD/MMC slot 6. PTY/CLK button IR sensor 7. BND/NP/SUB button EJECT button 8.
  • Page 11 Back of the front panel Press REL button to open the panel. 1. LED indicator 2. RESET button (hole) 3. Disc slot Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 12 Remote control POWER button MODE button PLAY/PAUSE button MUTE button BND/SYS button ENTER button UP/DOWN/LEFT/RIGHT cursor buttons STOP/REVERSE button ST/PROG button 10. AMS/RPT button 11. SEL button 12. LOC/RDM button 13. PBC/MENU button 14. OSD button 15. Digit buttons 16. TITLE button 17.

  • Page 13: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press REL button and remove the panel, then press RESET button to restore the unit to the original factory settings. Power button Press any button to turn the unit on.
  • Page 14 VOLUME: 00, 02,.., 39 BASS/TREBLE: -7, -5,.., 0, +1, +2,..+5, +7 BALANCE: 7L,.., 7R FADER: 7R,.., 7F LOUD: ON/OFF LOC: LOC ON, LOC OFF (DX). ST: ON, OFF EQ: CLASS, POP, ROCK, FLAT, OFF COLOR: COLOR1, COLOR2 (to select the needed backlight color). Note: In each mode, the waiting time is about 5 seconds, and the waiting time is over, it returns to the last display mode of radio or disc playback mode.

  • Page 15: Radio Operations

    Radio operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band select Press BND/NP/SUB button on the front panel or BND/SYS button on RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2.

  • Page 16: Ta Button

    Auto memory store: press APS button on the panel for more than 2 seconds to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again.
  • Page 17 Button Number Music Group Speech Group Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics Culture, Science, Varied Jazz, Country Weather, Finance, Children Nation, Oldies Social, Religion, Phone IN Folk Travel, Leisure, Document When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

  • Page 18: Disc Operations

    Disc operations Disc glossary PBC (PlayBack Control) PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. Title The title is the important part of DVD disc.
  • Page 19 Max. nested directory is 8 levels The max. album number is 99 The max. length of each track is 99 minutes 59 seconds Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably) Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably). Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
  • Page 20 Loading/Eject a disc Turn the power on. Insert the disc with the printed side facing upward into the slot. Press EJECT button on the panel to eject the disc. Inserting the SD/MMC card/USB device Insert the MMC/SD card or USB device into MMC/SD compartment or USB socket. Then the playing mode will be changed into MMC/ SD or USB mode automatically.

  • Page 21: Osd Button

    Changing size Press ZOOM button on RC. The picture will be enlarged accordingly: X2, X3, X4, 1/2, 1/3, 1/4, OFF. Slow playback (for DVD/VCD) During DVD/VCD playback press SLOW button on the RC to execute the SLOW function. With each consecutive pressing of the SLOW button, the playback speed decreases: X1/2 =>...
  • Page 22 Changing angle (for DVD only) If DVD disc supports multi-angle playback, press ANGLE button on RC to play images in different camera angles. If discs doesn't support multi-angle playback, this function will not work. If no operation within 1 second, angle description will disappear. Selecting the subtitle (for DVD only) Press SUB-T button on RC repeatedly to select the subtitle.
  • Page 23 For VCD and CD, select track number. Press PLAY/PAUSE button to play; or move the cursor to select “PLAY” and press ENTER button to start playback of the programmed consequence. If you want to delete the list, move the cursor to “CLEAR”, press ENTER button to delete the list set before. Press ST/PROG button to exit the program mode.

  • Page 24: Mp3 Overview

    MP3 overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 25 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 26: System Setup

    System setup Press SETUP button on the RC or 6/SET/PAU button on the panel to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to navigate in the menu and confirm your selection. Following setup pages are available: System, Language, Audio, Video, Speaker, Digital.
  • Page 27 Language setup OSD language LANGUAGE SETUP Select the language to be used for the on-screen display. Audio language OSD LANGUAGE Select the language to be used for the audio. You can select a preferred audio from those AUDIO LANG included on the DVD video disk. (The screen on your player may have difference with the SUBTITLE LANG screen shown here) MENU LANG...
  • Page 28 Video setup Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, Saturation, VIDEO SETUP Sharpness. BRIGHTNESS CONTRAST SATURATION SHARPNESS Speaker setup SPEAKER SETUP Downmix LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1 CH DOWNMIX format.

  • Page 29: Cleaning

    Cleaning Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust. Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).

  • Page 30: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 31: Specification

    Specification General Power Supply 12V DC Current consumption/Fuse: 10A & 1A Maximum power output: 50Wx4 channels Dimensions (W x H x D) 178 x 51 x 178 mm Working temperature range: -20º - +60º FM Stereo Radio Frequency range: 87.5 - 108.0 MHz Usable sensitivity/ I.F.
  • Page 32 Line out Output: CD max 2000 mV Specifications are subject to change without notice. Dimensions are approximate.
  • Page 33 ....................................33 ................................34 ..................................35 ................................36 ................................... 42 ..................................45 ................................... 47 ................................ 51 ................................52 3..................................... 58 ................................60 ..............................63 ..........................64 ................................ 65...
  • Page 35 M5 T (3.5 (5X25 M5 (5X29.3...
  • Page 36 30°, « » « » « » ( « » ( DIN, « » (...
  • Page 37 (5 25 – – –...
  • Page 38 « » (...
  • Page 41 ISO, (+)--- (-)--- (+)--- (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 42 6/SET/PAU PREV/NEXT SD/MMC PTY/CLK BND/NP/SUB EJECT 1/OSD 2/RPT VOL/ 3/INT POWER 4/RDM MODE 5/STOP...
  • Page 43 REL, ) RESET...
  • Page 44 POWER MODE PLAY/PAUSE MUTE BND/SYS ENTER STOP/REVERSE ST/PROG AMS/RPT LOC/RDM PBC/MENU TITLE SUB-T SETUP ANGLE SEEK-/SEEK+ /PREV/NEXT SLOW AUDIO ZOOM GOTO VOL-/VOL+ (CR 2025 3V),...
  • Page 45 RESET ( REL. RESET, POWER, POWER VOL+/- MUTE, MODE MODE : AUX => RADIO => DIS => USB => CARD. USB, CARD, DIS BND/NP/SUB...
  • Page 46 : VOL ( ) => BAS ( => TRE ( ) => BAL ( ) => FAD ( ) => LOUD ) => LOC ( ) => ST ( ) => EQ ( ) => COLOR 1 ( VOL +/- VOLUME: 00, 02,.., 39 BASS/TREBLE: -7, -5,.., 0, +1, +2,..+5, +7 BALANCE: 7L,.., 7R...
  • Page 47 RDS ( BND/NP/SUB BND/SYS : FM1, FM2, FM3, AM1, AM2. PREV/NEXT, PREV/NEXT, PREV/NEXT SEEK +/- 1~6, (1~6).
  • Page 48 AMS/RPT 1-6. AMS/RPT 1~6. AMS/RPT ST/PROG (ST OFF) (ST ON). ST ON/OFF. VOL +/- ST ON ( ST OFF ( LOC ( VOL+/- OFF). LOC/RDM AF (...
  • Page 49 TA ( PTY ( RDS, PTY/CLK, PTY. PTY. Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics Culture, Science, Varied Jazz, Country Weather, Finance, Children Nation, Oldies Social, Religion, Phone IN Folk Travel, Leisure, Document SEL, MASK, TA SEEK/TA ALARM, RETUNE.
  • Page 50 MASK DPI/MASK ALL AF ( MASK DPI. MASK ALL. RETUNE Retune-S Retune-L – TA Seek. Retune S: TA SEEK 30 Retune L: TA SEEK 90 Retune TA SEEK.
  • Page 51 PBC ( – PBC, –...
  • Page 52 : CD/DVD/CDDA/CD-R/-RW/DVD±R/±RW. : DVD-video, SVCD/VCD/HDCD/MP3/MP4/WMA/Picture-CD/JPEG/DivX/MPEG4. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - – 448. – 99. - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM.
  • Page 53 USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: USB 2.0. : 8 M ~ 1 : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, : 8 M ~ 1 MMC:...
  • Page 54 PLAY/PAUSE PLAY/PAUSE, STOP STOP/REVERSE PREV, NEXT, PREV/NEXT, DVD, VCD SLOW : 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, PLAY/PAUSE LOC/RDM...
  • Page 55 AMS/RPT Intro ( 3/INT, ZOOM : X2, X3, X4, 1/2, 1/3, 1/4, AUDIO DVD- ANGLE SUB-T...
  • Page 56 TITLE ENTER. PBC ( PBC, /MENU – ENTER, STOP VCD. /MENU, GOTO GOTO GOTO ENTER 0, 2, ENTER. ST/PROG, VCD CD PLAY/PAUSE; “ ” ENTER...
  • Page 57 “ ” ENTER. ST/PROG DVD/VCD) BND/NP/SUB : PAL => PAL-M => PAL-N => => NTSC.
  • Page 58 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW, 44,1...
  • Page 59 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 60 SETUP 6/SET/PAU ENTER. (NTSC, PAL, PAL-M, PAL-N, 4:3 PS: 4:3. 4:3 LB: 4:3, 16:9: 16:9. – 0000.
  • Page 61 SPDIF/RAW: SPDIF/PCM:...
  • Page 62 LT/RT: PRO LOGIC Dolby, 5.1, 5.1 CH LINE OUT: RF REMOD: “line out”, “Full”, “Off”,...
  • Page 64 “ ”. POWER...
  • Page 65 12 , 10A & 1A 178 50 165 -20º - +60º 87.5 - 108.0 / 10.7 522-1620 DVD/SVCD/VCD/MP4/MP3/WMA/CD/HDCD/DVD Audio/MPEG4/DivX/Picture-CD/Photo-CD/CD-R/CD-RW/DVD±R/JPEG NTSC/PAL / 24 0 - +/-30 16:9 1.0 , 75 RMS (+/-3 – 20...
  • Page 66 . 2000...
