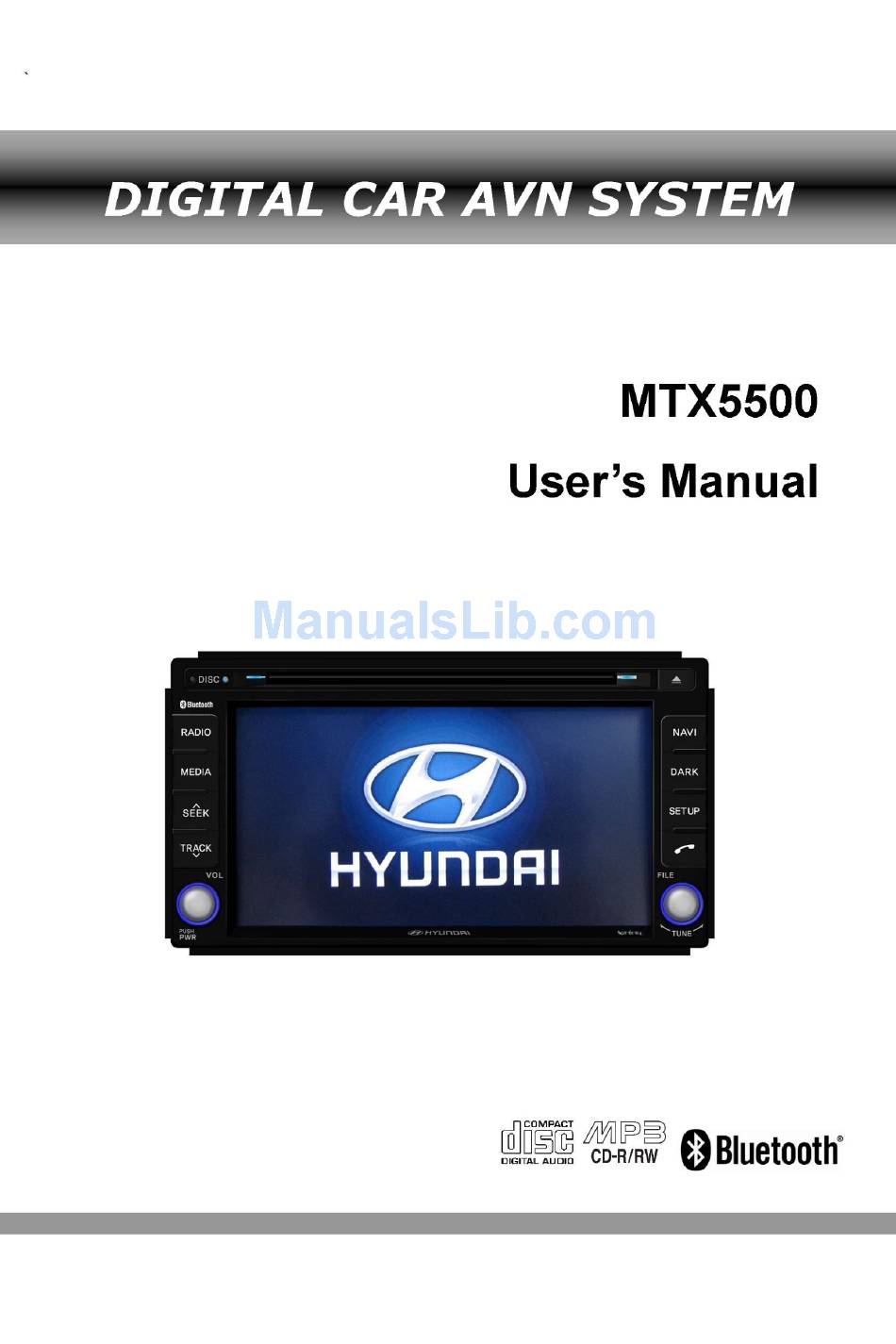

IGITAL
CAR AVN
SYSTEM
MTX5500
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTX5500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai MTX5500

Summary of Contents for Hyundai MTX5500

  • Page 1 IGITAL CAR AVN SYSTEM MTX5500 User's Manual...
  • Page 2 Thank you for purchasing our product. Before using this product, read user's manual carefully for safe operation. Manual contents may vary according to product version.

  • Page 3: Table Of Contents

    CONTENTS 1. REFERENCES Page 04 2. NOTICES Page 06 3. COMPONENTS Page 07 4. NAMES AND FUNCTIONS Page 08 5. RADIO Page 11 6. BLUETOOTH Page 12 7. MEDIA PLAYER Page 21 7.1 MUSIC PLAYER Page 21 7.2 AUX PLAYER Page 24 7.3 DVD PLAYER Page 25...

  • Page 4: References

    R E F E R E N C E S 1. R e f e r e n c e s 1.1. Terms for DVD Abbreviation for Digital Versatile Disc or Digital Video Disc. It affords to contain about 135 min. of movie clip or clips with maximum 8 languages and 32 languages' subtitles.
  • Page 5 R E F E R E N C E S 1.2. Region c o d e Information In this product as well as all types of DVD discs, region codes are followed. If the region code of the device does not support an inserted disc, the DVD cannot be played. Check the chart below for region codes.

  • Page 6: Notices

    NOTICES 2. Notices • Do not use the product when there's no sound or displays abnormally. Use under abnormal condition can cause accidents, fires or electric shock. • Take caution not to damage the vehicle parts upon installation. Lack of caution can cause fires, electric shock or car accident.

  • Page 7: 3. C O M P O N E N T S

    NOTICES / COMPONENTS • Do not expose DISC to the direct ray, high humidity, or high temperature for long time. It can transform DISC. • Remove finger prints or dusts on DISC with soft fabrics. Do not use any chemical agents like bezel;...

  • Page 8: Names And Functions

    NAMES AND FUNCTIONS ® Disc Insert Slot © Disc Eject ( ) Button © Radio Mode Selection © NAVI Button (AM/FM) Button © Display ON/OFF Button © Media Button ® SETUP Button @ Track/Seek Up Button © PHONE BUTTON © Track/Seek Down Button ©...
  • Page 9 BASIC FUNCTIONS 4-2. B a s i c F u n c t i o n s © Disc Insert Slot Slot for disc insertion. W h e n a CD is inserted, previous mode is cancelled and CD will be played.
  • Page 10 BASIC FUNCTIONS ® S E T U P Button Pressing this button will execute Setup mode. © PHONE Button Pressing this button will execute PHONE mode. © T U N E Up/Down @-1 MANUAL TUNING - Radio: To manually tune to a radio station, turn knob © on the front panel clockwise counter-clockwise...

  • Page 11: Radio

    RADIO 5. RADIO Press the RADIO button © to begin playing the radio. Each press of the button will change the radio mode in the order of: ^ M 1 — F M2 — FM3 — A M I - - A M 2 5.1.

  • Page 12: Bluetooth

    BLUETOOTH 6. B L U E T O O T H This device supports wireless Bluetooth. A Bluetooth mobile or music player can be wirelessly connected with the device. 1. This device is connected to a mobile when the power is at standby mode (ACC ON state) .
  • Page 13 BLUETOOTH 6. Bluetooth Menu Press the B L U E T O O T H button ® to display the Bluetooth Menu. 6.1 Bluetooth C o n n e c t i o n 6.1.1. Pairing mode in Handsfree To use the mobile on the device via Bluetooth, you must first connect Bluetooth. Connection is made via Hands Free Profile (HFP).
  • Page 14 BLUETOOTH 6.1.3. How to pair y o u r Bluetooth mobile P r e s s i n g the "Pairing" button will display the following s c r e e n s . Press the C O N N E C T I O N menu within the Handsfree options in your mobile. Press the "0000"...
  • Page 15 BLUETOOTH 6.1.4. How to remove a paired list To remove a paired list, select the device and press the D E L E T E button. When deleting a list, the message "Do you want to delete?" will be displayed. Press the "YES"...
  • Page 16 BLUETOOTH 6.2 Playing s o n g s on Bluetooth Audio This device supports Audio Advanced Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP). Both profiles allow you to play music on the mobile through the device. Pressing the Audio button will display the following screens.
  • Page 17 BLUETOOTH 6.3 Operation of Handsfree The Handsfree function operates via Bluetooth wireless technology. 6.3.1. Touch Call and R e c e n t Call Press the H A N D S F R E E button to display Handsfree mode. The Touch Call Screen will be displayed.
  • Page 18 BLUETOOTH 6.3.2. Outgoing Call The following are outgoing call screens. Once a call starts, "HandsFree Mode" and call time will be displayed. Here, press the Private button to convert to the mobile. To convert to the device, press the H a n d s F r e e button. Note: If you receive a mobile call during incoming call, "HandsFree Mode"...
  • Page 19 BLUETOOTH 6.3.4. Switching to private (handset) mode during a call When on a call in handsfree mode, it is possible to switch to private mode if you wish to speak to the calling party in private. The "Private" and "H/Free" functions are used to switch the call from the device to the mobile to speak privately.
  • Page 20 BLUETOOTH 6.4. Setting Bluetooth Conditions Щ" BLUETOOTH Press the S E T U P button to reset or setup sound. CONNECTION Pressing S E T U P button will operate SPH-W7100(01**)1234 Disconnected PAIRING Bluetooth setup feature. niracle??iPhone Disconnected DELETE з Ю...

  • Page 21: Media Player

    MUSIC PLAYER 7. Media Menu Press Media botton to operate Media mode in order of DVD(CD), AUX, USB, IPod mode. I DVD(CD) — A U X — USB/iPod However, the corresponding Media mode will operate only when a DVD(CD) is inserted or a USB disc or iPod device is connected.
  • Page 22 MUSIC PLAYER 7.1.1 S e e k Track up/down 1) Tune button @ Turn the button clockwise/counter-clockwise to search the tracks. Press the button at the desired file to begin play (USB Only) For DVD MP3 or CD, operates in the same way as the Seek Up/Down keys. Note: W h e n pressing Tune Left/Right, songs within the folder of the current song are searched and displayed on the screen.
  • Page 23 MUSIC PLAYER 7.1.2. Repeat Play Within USB MP3 Player mode, press REPEAT to repeat the current song. Press and hold REPEAT for over 2 seconds to display the FOLDER REPEAT text on the screen and repeat all songs within the current folder. Within DVD MP3 Player mode, press the REPEAT button to repeat the current song.

  • Page 24: Aux Player

    AUX PLAYER 7.2. A U X Player A U X can be played by connecting with the vehicle console box. A U X can be played only when a portable MEDIA PLAYER is connected with the device. Follow these steps to connect a portable MEDIA PLAYER with the device. a.

  • Page 25: Dvd Player

    DVD PLAYER • To recognize folder or file within R O O T directory The files within the ROOT directory are recognized in the following manner. Files are played according to the file name. Number — English(uppercase) — English(lowercase) Disc Root 1—i File1...
  • Page 26 DVD PLAYER 7.3. DVD Player Press the Source Select button ® to select DVD mode. As shown below, the DISC will begin loading. Even when operating another mode, inserting DVD disc will automatically being DVD mode. 7.3.1. DVD V I D E O DVDP DVD О...
  • Page 27 DVD PLAYER 7.3.2. s e a r c h title/chapter Clear: Clears input numbers. OK: Plays selected title, chapter. Hide button: Hides buttons on the screen and changes to Full Screen. 1~0 : Input title, chapter number through the number pad. After selecting the desired title/chapter, input the title/chapter position.

  • Page 28: Ipod Player

    iPOD PLAYER 7.4 iPod Player Press the Media(@) button to select USB/iPod mode. The loading screen shown below will be displayed when an iPod (iPhone) is connected to the USB/iPod hub. iPod mode will automatically operate when an iPod(iPhone) is connected with the USB Connector.
  • Page 29 iPOD PLAYER W h e n listening to iPhone songs by using Bluetooth Audio mode, songs may not play if the device is also connected to the USB hub via the iPod cable. A s described above, change the Audio Stream of the iPhone to normally play music. *K To charge the iPod/iPhone, the Multi box USB terminal must be connected.

  • Page 30: Setup

    S E T U P 8. S E T U P Press the S E T U P button ® to operate SETUP mode. SOUND LANGUAGE FACTORY SETTING "1 8.1 S O U N D Setting S O U N D button is used to adjust sound. Pressing the S O U N D button will display the following setup screen.
  • Page 31 S E T U P 8.2. LANGUAGE (Screen where user can select the desired language.) Select the language you wish to use within the device. This device supports three languages of ENGLISH/ARABIC/PERSIAN/RUSSIAN. Once a language is selected, the "SYSTEM will restart to change language! Are you sure?" message will be displayed.

  • Page 32: Rear Camera

    R E A R CAMERA 9. Rear View C a m e r a This device supports rear view camera feature. When backing up, the review view screen will automatically be displayed on the screen.

  • Page 33: Specifications

    SPECIFICATIONS Tuning Range A M : 522~1,620 KHz. 9 KHz. FM: 87.5~108.0 MHz. 100 KHz. A M : 15 /Л/ Sensitivity FM : 1.5 FM Stereo Separation 30 dB CD Frequency Response 20 ~ 20,000 Hz CD S/N Ratio 50 dB CD Channel Separation 40 dB CD Audio Format...

  • Page 34: Trouble Shooting

    T R O U B L E SHOOTING Error C a u s e Solution The power does The fuse is disconnected. Replace with a suitable fuse. not switch on. If the fuse is disconnected, з please contact your point of sale or service center.

  • Page 35: Limited Warranty

    LIMITED WARRANTY ORIGINAL NAVIGATION HEAD UNIT SUPPLIED BY V E H I C L E DEALER Product : Product No. : W H A T THIS W A R R A N T Y C O V E R S 1.
  • Page 36 LIMITED WARRANTY 6. Except for the Limited Warranty and to the maximum extent permitted by applicable law, DEALER and its suppliers provide the Hardware "AS IS A N D W I T H ALL FAULTS", and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses, of results, of workmanlike effort,...

  • Page 37: A/S Center

    A/S C E N T E R • Technical & Call Center • MOTREX ME FZCO з Address : P.O.Box 261856 Jebel Ali, Dubai, UAE TEL: (+971) 4-886-4069 FAX : (+971) 4-886-4068 3" jefflee@motrex.co.kr / ahmed@motrex.co.kr www.motrex.com...
