SmartMedia™ Cards:

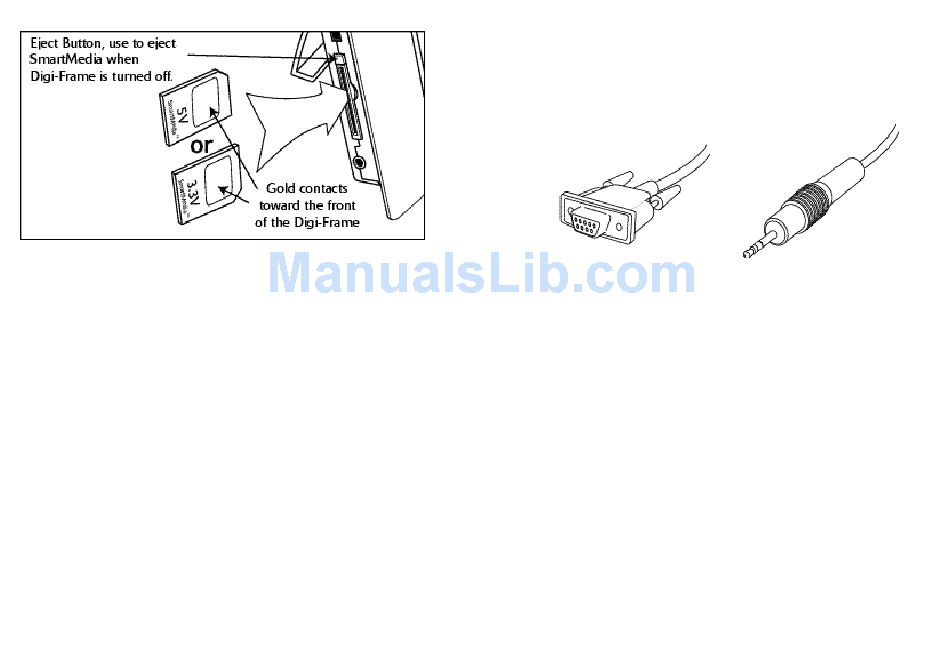

To insert the SmartMedia™ card:
Make sure the Digi-Frame™ is off.
Insert the card with the gold contacts facing toward the front of the Digi-
Frame™, notched end first. Do not force the card into the slot.
To remove the SmartMedia™ card:
Make sure the Digi-Frame™ is off.
Press the eject, this will dislodge the SmartMedia™ card. Once the lever is
fully depressed, gently pull the card free.

Self-Demonstration Mode:

The Digi-Frame™ is designed to show off its features in a short demonstra-
tion.
If the Digi-Frame™ is powered on with no memory card inserted, the Digi-
Frame™ will start a slideshow of digital pictures stored in the unit.
All features are available in demonstration mode.
Press any button to skip the wait period.
To end Self-Demonstration mode, turn off the Digi-Frame™, and insert a
memory card
Important information about the Screen:
The backlight of the display panel in your Digi-Frame™ has a minimum life
expectancy of at least 10,000 hours. This is equivalent to about 14 months of con-
tinuous 24-hour usage. To prolong the life of your Digi-Frame's display we suggest
turning it off when not in use. If used five hours or less per day it will last at least
five years
12
Connecting Digi-Frame™ to your desktop PC:
The Digi-Frame™ can link to your Desktop PC to upload and download
Digital Pictures.
In order to connect to your desktop PC, your Digi-Frame™ comes with a
Macintosh®/PC compatible serial cable [Digi-Link™ cable]. The Digi-Link™
cable has two dedicated connector ends.
The Digi-Link Cable
serial connector
The serial connector connects to the serial port on the back of most IBM-
compatible computers.
The serial connector also connects to the included Macintosh® adapter,
that connects to the Printer Port or Modem port on many Macintosh®
computers.
A serial to USB adapter is needed to connect the Digi-Frame™ to the USB
ports used on many newer IBM compatible and Macintosh® products.
The Digi-Frame™ connector connects to the Digi-Link port on the Digi-
Frame™.
Connecting to an IBM PC compatible:
Attach the serial end of the cable to the serial port on the back of the com-
puter.
Attach the Digi-Frame™ connector to the Digi-Link port on the Digi-
Frame™.
Connecting to a Macintosh® compatible computer:
Attach the Macintosh® adapter to the serial end of the Digi-link cable.
Attach the Macintosh® adapter to either the Printer or Modem port on the
back of your Macintosh® computer.
Attach the Digi-Frame™ connector to the Digi-Link port on the Digi-
Frame™.
Digi-Frame™ connector
13
