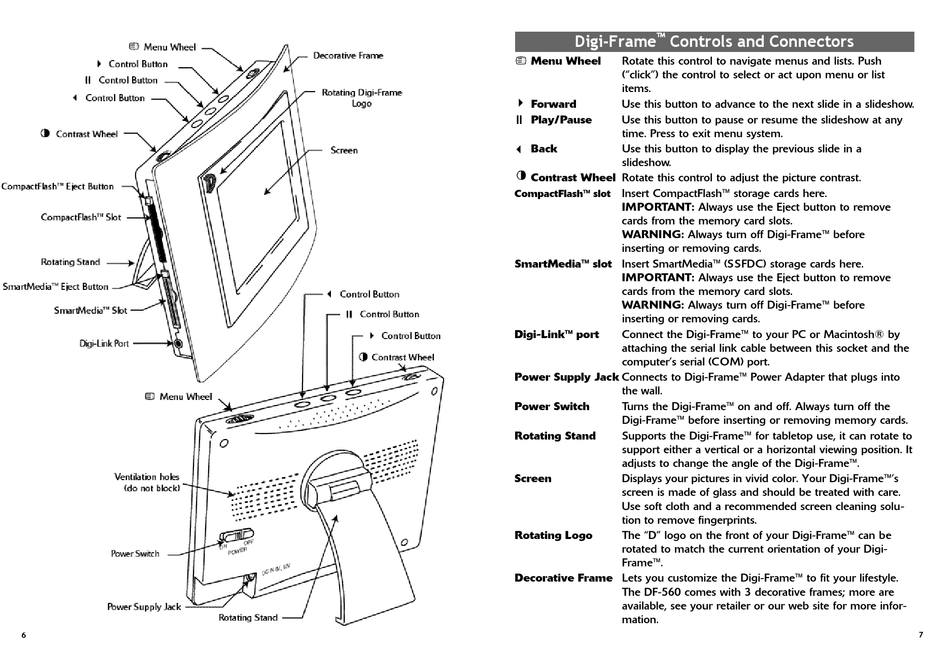

Digi-Frame Controls and Connectors
Menu Wheel Rotate this control to navigate menus and lists. Push
("click") the control to select or act upon menu or list
items.
4
Forward Use this button to advance to the next slide in a slideshow.
;
Play/Pause Use this button to pause or resume the slideshow at any
time. Press to exit menu system.
3
Back Use this button to display the previous slide in a
slideshow.
Contrast Wheel Rotate this control to adjust the picture contrast.
CompactFlash™ slot Insert CompactFlash™ storage cards here.
IMPORTANT: Always use the Eject button to remove
cards from the memory card slots.
WARNING: Always turn off Digi-Frame™ before
inserting or removing cards.
SmartMedia™ slot Insert SmartMedia™ (SSFDC) storage cards here.
IMPORTANT: Always use the Eject button to remove
cards from the memory card slots.
WARNING: Always turn off Digi-Frame™ before
inserting or removing cards.
Digi-Link™ port Connect the Digi-Frame™ to your PC or Macintosh® by
attaching the serial link cable between this socket and the
computer's serial (COM) port.
Power Supply Jack Connects to Digi-Frame™ Power Adapter that plugs into
the wall.
Power Switch Turns the Digi-Frame™ on and off. Always turn off the
Digi-Frame™ before inserting or removing memory cards.
Rotating Stand Supports the Digi-Frame™ for tabletop use, it can rotate to
support either a vertical or a horizontal viewing position. It
adjusts to change the angle of the Digi-Frame™.
Screen Displays your pictures in vivid color. Your Digi-Frame™'s
screen is made of glass and should be treated with care.
Use soft cloth and a recommended screen cleaning solu-
tion to remove fingerprints.
Rotating Logo The "D" logo on the front of your Digi-Frame™ can be
rotated to match the current orientation of your Digi-
Frame™.
Decorative Frame Lets you customize the Digi-Frame™ to fit your lifestyle.
The DF-560 comes with 3 decorative frames; more are
available, see your retailer or our web site for more infor-
mation.
