Tally T7070 Maintenance Manual

Ink jet printer
Hide thumbs

Advertisement

Quick Links

Download this manual
®
T7070
T7070
Maintenance Manual Ink Jet Printer

Advertisement

loading
Need help?

Need help?

Do you have a question about the T7070 and is the answer not in the manual?

Questions and answers

Related Manuals for Tally T7070

Summary of Contents for Tally T7070

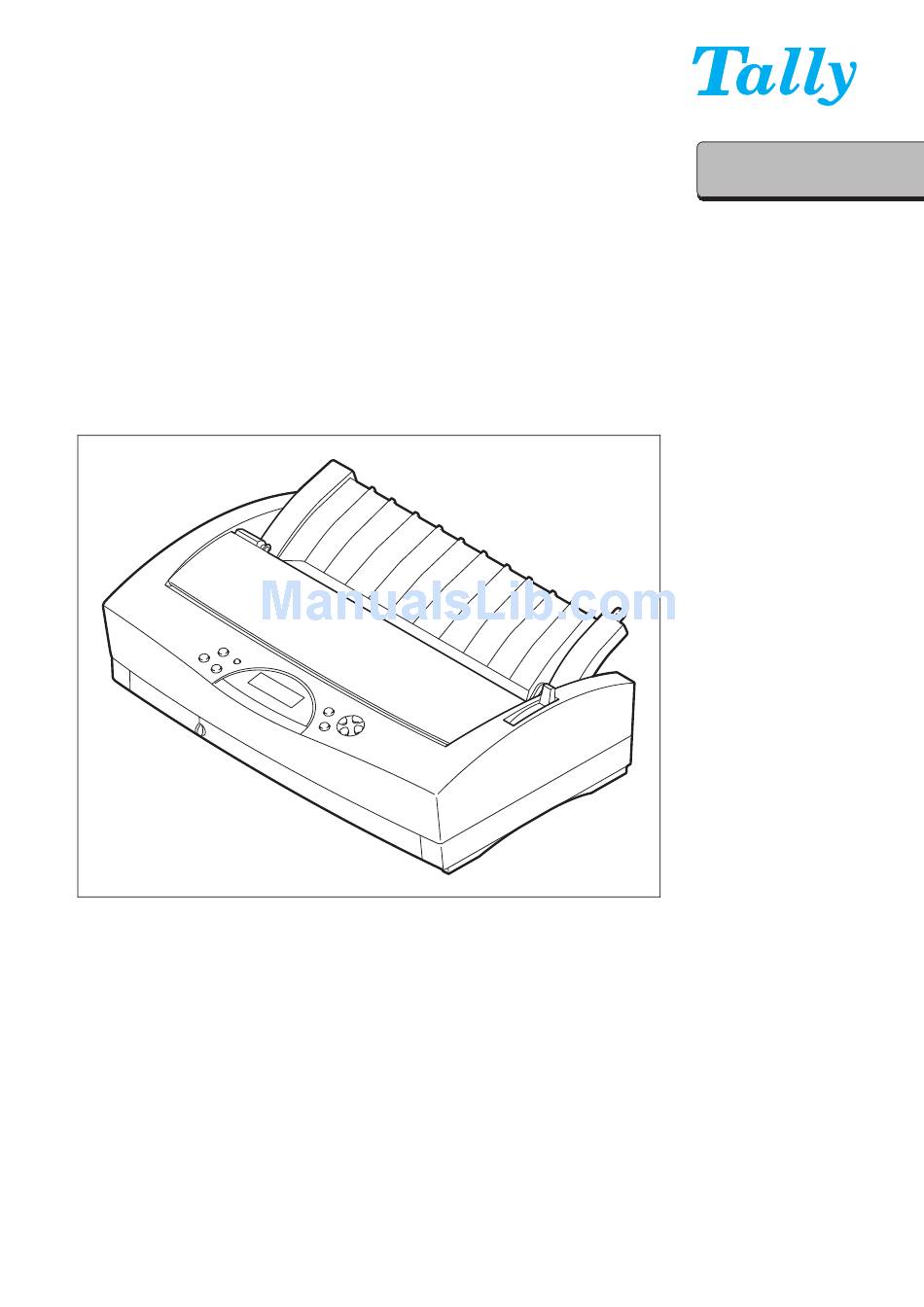

  • Page 1 ® T7070 T7070 Maintenance Manual Ink Jet Printer...
  • Page 2 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Separator Unit 395 700 Lever, Separator Lock 395 808 Tray, Extension Output 395 809...
  • Page 3 Part 6 – Spare Parts and Schematics Printer 1.1.2 Top Cover...
  • Page 4 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Top Cover Ass’y 395 701 Spring, Leaf 395 702 Spur Frame Unit 395 703...
  • Page 5 Part 6 – Spare Parts and Schematics Printer 1.1.3 Spur Frame Unit...

  • Page 6: Table Of Contents

    Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Spur Unit 395 704 Main Spur Unit 395 705 Sub Main Spur Unit 395 706 Assist Spur Unit 395 707 Extension Spur Unit 395 708 Holder, Lever 395 709 Spring, Hook End Coil 395 710...
  • Page 7 Part 6 – Spare Parts and Schematics Printer 1.1.4 Upper Cover...
  • Page 8 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Upper Cover Unit 395 713 Plate, LCD Protect 395 714 Button, Push, LH 395 715 Button, Push, RH 395 716...
  • Page 9 Part 6 – Spare Parts and Schematics Printer 1.1.5 Logic Board 6-10...
  • Page 10 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Logic Board Ass’y 397 289 Cable, Interface 395 717 I/F Logic Board Ass’y 395 677 6-11...
  • Page 11 Part 6 – Spare Parts and Schematics Printer 1.1.6 Power Supply Unit and Control Panel 6-12...

  • Page 12: Table Of Contents

    Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Power Supply 110/120 395 666 Power Supply 220/240 395 667 Fuse 125V 3.15A 395 668 Fuse 250V 2.0A 395 669 Cover, Gear (L) 397 038 Plate Grounding, LH 395 718 Purge Unit 395 681...
  • Page 13 Part 6 – Spare Parts and Schematics Printer 1.1.7 Printer Unit 6-14...
  • Page 14 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Cable, Power Supply 395 720 Cable Extension, w/Connector 395 721 Lever, Paper Selection 395 722 Bottom Cover Unit 395 723 6-15...
  • Page 15 Part 6 – Spare Parts and Schematics Printer 1.1.8 Bottom Cover 6-16...
  • Page 16 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Foot, Printer 395 724 Cover, Container 395 725 Head Cartridge Container 395 726 Ink Absorber Ass’y 395 679 Rail, Guide 395 727 Plate, Grounding 395 728 6-17...
  • Page 17 Part 6 – Spare Parts and Schematics Printer 1.1.9 Purge Motor 6-18...
  • Page 18 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Purge Motor Ass’y 395 680 6-19...
  • Page 19 Part 6 – Spare Parts and Schematics Printer 1.1.10 Carriage Part I 6-20...
  • Page 20 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Film, Magnetic Timing 397 970 Spring, Encoder Mount 397 970 Holder, Encounter 397 970 Clip, Shaft 395 731 Shaft 397 964 Holder Carriage Ribbon Cable 395 732 Carriage Unit 395 733 Arm, Sensor...
  • Page 21 Part 6 – Spare Parts and Schematics Printer 1.1.11 Carriage Part II 6-22...
  • Page 22 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Belt, Carriage, 537T 395 739 Holder, Belt 395 740 Cover, Carriage Top 395 741 Spring, Hook End Coil 395 742 Cam, Tension 395 743 Lever, Form Thickness 395 744 6-23...
  • Page 23 Part 6 – Spare Parts and Schematics Printer 1.1.12 Carriage Part III 6-24...
  • Page 24 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Holder, Head 397 166 Head Cable Ass’y 395 810 Lever, Locking 395 745 6-25...
  • Page 25 Part 6 – Spare Parts and Schematics Printer 1.1.13 Carriage Motor and Paper Feed Motor 6-26...
  • Page 26 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Plate, Grounding 395 746 Cover, Gear (R) 397 177 Spring, Coil 395 748 Gear, Clutch 395 747 Cam, Release 395 749 Gear, Transmission, 45T 395 750 Gear, Transmission, 54T 395 751 Gear, Transmission, 40T 395 752...
  • Page 27 Part 6 – Spare Parts and Schematics Printer 1.1.14 Tractor Feeder 6-28...
  • Page 28 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Gear, Tractor 395 753 Sensor, Tractor Feed 395 671 Pin Feed Wheel (R) 395 754 Pin Feed Wheel (L) 380 048 6-29...
  • Page 29 Part 6 – Spare Parts and Schematics Printer 1.1.15 Printer Frame 6-30...
  • Page 30 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Gear, 36T 395 755 Bushing 395 756 Coil, Spring 395 757 Washer 395 758 Bushing 395 759 Eject Roller Ass’y 395 760 Plate, Paper Guide 395 761 Platen 395 762 Roller, Paper Transmission...
  • Page 31 Part 6 – Spare Parts and Schematics Printer 1.1.16 Printer Frame and Paper Feed Roller 6-32...
  • Page 32 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Roller, Pressure 395 764 Plate, Pressure 395 765 Spring, Leaf 395 766 Spring, Coil 395 767 Guide, Separation 395 768 Guide, Separation 395 769 Washer 395 770 Feed Roller Unit 395 771 6-33...
  • Page 33 Part 6 – Spare Parts and Schematics Printer 1.1.17 Paper Guide Frame 6-34...
  • Page 34 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Ink Pad 380 045 Spring, Coil 395 772 Roller, Pinch 395 773 Roller, Assist Pinch 395 774 Spring, Torison 395 775 Bracket, Pinch Roller 395 776 Holder, Shaft 395 777 Shaft, Release Roller 395 778...
  • Page 35 Part 6 – Spare Parts and Schematics Printer 1.1.18 Logic Board Component Top View Bottom View 6-36...
  • Page 36 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Firmware for Logic 395 675 395 779 Firmware for Logic 397 289 397 290 Eprom for FW; D27C8000 395 639 Printer Controler Unit 380 062 EEP-Rom NM93C46N 395 809 6-37...
  • Page 37 Part 6 – Spare Parts and Schematics Printer 1.1.19 Serial I/F Board Ass’y 6-38...
  • Page 38 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Board/Option 044 699 Plug, Short 6-39...
  • Page 39 Part 6 – Spare Parts and Schematics Printer 6-40...
  • Page 40 Printer Part 6 – Spare Parts and Schematics 1.1.20 Screws, Washers and Rings Item Name Part Class Remarks Screw, Machine, Binding Head, M3x6 Screw, Cross-Recess, FCH Screw, TAP, Binding Head, M3x6 Screw, TP, M4x14 Screw, Binding, Head, Self-TPG, M4x12 Screw, M4x6 Screw, Machine, TP PAN Head, M3x6 Screw, TP, M3x4 Screw, BH, 2x5...
  • Page 41 Part 6 – Spare Parts and Schematics Printer 1.1.21 Tools 6-42...
  • Page 42 Printer Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Feeler Gauge, Gap 0.5 mm Molykote PG - 641 6-43...
  • Page 43 Part 6 – Spare Parts and Schematics ASF Bin 1 ASF Bin 1 1.2.1 ASF 1 Bin Part I 6-44...
  • Page 44 ASF Bin 1 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Arm, Paper Support, LH 395 780 Arm, Paper Support, RH 395 781 Holder, Paper Support Arm 395 782 Lever, Loading 395 783 Cover, Right 395 784 Arm, Loading 395 785 Spring, Hook End Coil...
  • Page 45 Part 6 – Spare Parts and Schematics ASF Bin 1 1.2.2 ASF 1 Bin Part II 6-46...
  • Page 46 ASF Bin 1 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Cover, Left 395 788 Cover Gear 395 789 Gear Transmission, 40T 395 790 One Way Clutch Gear Unit 395 791 Latch Arm Unit 395 792 Gear, Idle 395 793 Gear, Transmission, 25T...
  • Page 47 Part 6 – Spare Parts and Schematics ASF Bin 1 1.2.3 ASF 1 Bin Part III 6-48...
  • Page 48 ASF Bin 1 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Spring, Coil 395 795 Lever, Protection 395 796 Guide, Paper Pick Up 395 797 Pick Up Roller Unit, LH 395 798 Pick Up Roller Unit, RH 395 799 6-49...
  • Page 49 Part 6 – Spare Parts and Schematics ASF Bin 1 1.2.4 ASF 1 Bin Part IV 6-50...
  • Page 50 ASF Bin 1 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Gear, Loading 395 800 Lifting Plate Unit 795 801 Spring, Coil 395 802 6-51...
  • Page 51 Part 6 – Spare Parts and Schematics ASF Bin 1 1.2.5 ASF 1 Bin Part V 6-52...
  • Page 52 ASF Bin 1 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Spring, Coil 395 803 Paper Guide Unit 795 804 6-53...
  • Page 53 Part 6 – Spare Parts and Schematics ASF Bin 2 ASF Bin 2 1.3.1 ASF 2 Bin Part I 6-54...
  • Page 54 ASF Bin 2 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Arm, Paper Support, LH 395 780 Arm, Paper Support, RH 395 781 Holder, Paper Support Arm 395 782 Lever, Loading 395 783 Cover, Right 395 784 Arm, Loading 395 785 Spring, Hook End Coil...
  • Page 55 Part 6 – Spare Parts and Schematics ASF Bin 2 1.3.2 ASF 2 Bin Part II 6-56...
  • Page 56 ASF Bin 2 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Cover, Left 395 806 One Way Clutch Gear Unit 395 807 Latch Arm Unit 395 792 Gear, Transmission, 25T 395 794 6-57...
  • Page 57 Part 6 – Spare Parts and Schematics ASF Bin 2 1.3.3 ASF 2 Bin Part III 6-58...
  • Page 58 ASF Bin 2 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Guide, Paper Pick Up 395 797 Pick Up Roller Unit, LH 395 798 Pick Up Roller Unit, RH 395 799 6-59...
  • Page 59 Part 6 – Spare Parts and Schematics ASF Bin 2 1.3.4 ASF 2 Bin Part IV 6-60...
  • Page 60 ASF Bin 2 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Gear, Loading 395 800 Lifting Plate Unit 795 801 Spring, Coil 395 802 6-61...
  • Page 61 Part 6 – Spare Parts and Schematics ASF Bin 2 1.3.5 ASF 2 Bin Part V 6-62...
  • Page 62 ASF Bin 2 Part 6 – Spare Parts and Schematics Item Name Part Class Remarks Spring, Coil 395 803 Paper Guide Unit 795 804 6-63...
