Summary of Contents for Entel HT642 Entry
- Page 1 User Guide – HT600 Series v05/09 Professional submersible marine handheld transceivers Common Information (all models) HT642 Entry HT644 HT648 Entry GMDSS HT649 LCD GMDSS...
-
Page 2: Table Of Contents
Introduction This guide covers the ‘basics’ of your radio’s operation.To meet your exact requirements the radio may have been customised by your Entel authorised dealer. These features will be explained in a separate guide issued by the dealer. Table of Contents... -
Page 3: Certification
CE Compliance Statement The HT600 series transceiver displays "CE" on the serial number label, indicating its compliance with the essential requirements of the EEC directive for Electromagnetic Compatibility. Declaration of Conformity We Entel UK Limited 4 Elstree Gate, Elstree Way Borehamwood Hertfordshire... -
Page 4: Radio Care
• Please check and observe regulations in your When your Entel transceiver reaches the end of its country with regard to use whilst driving useful life, please ensure that the unit is disposed of in an environmentally friendly way. -
Page 5: Battery Care
Battery care / information Introduction If liquids from the battery get into your eyes, immediately: Your Entel radio is supplied with a high performance Wash your eyes out with fresh water and avoiding Lithium-Ion (Li-Ion) battery. rubbing them. Seek medical treatment. -
Page 6: Packing List
Packing List • HT64X Transceiver • CNB750E Rechargeable 1800mAh Li-Ion battery (May not be included with GMDSS) • CLB750E Non rechargeable Lithium battery (GMDSS only) • CBH750 Spring loaded belt clip Optional Accessories • CATXX Antenna CCA trickle charger included with certain models Battery &... -
Page 7: Preparing Your Radio For Use 6
Bluetooth option board in radio is required to use Bluetooth audio accessories. (Not available for HT644/HT648/HT649) Preparing Your Radio For Use For complete up to date list of optional accessories visit www.entel.co.uk Simplex/ Duplex Channel Use Your transceiver has been factory programmed in accordance with International regulations. - Page 8 Preparing Your Radio For Use cont... Attaching / Removing the Belt Clip To attach, locate the clip into the slot on the back of the battery and slide up until you hear a “click”. To remove, pull the tab (a) towards the belt clip.Then slide the belt clip downwards (b) Attaching / Removing the Aerial...
-
Page 9: Using Your Radio Ht642/Ht648
Using Your HT642/HT648 On / Off button Press the on / off button to turn your radio on. A short turn on beep will be heard. To turn off, press and hold the on / off button until the display extinguishes. Using your radio Before using your radio you may need to adjust the volume on the radio to take in to account background noise. -
Page 10: Using Your Radio Ht644/Ht649
Using Your HT644/HT649 On / Off button Press the on / off button to turn your radio on. A short turn on beep will be heard. To turn off, press and hold the on / off button until the display extinguishes. Using your radio Before using your radio you may need to adjust the volume on the radio to take in to account background noise. -
Page 11: Ht642

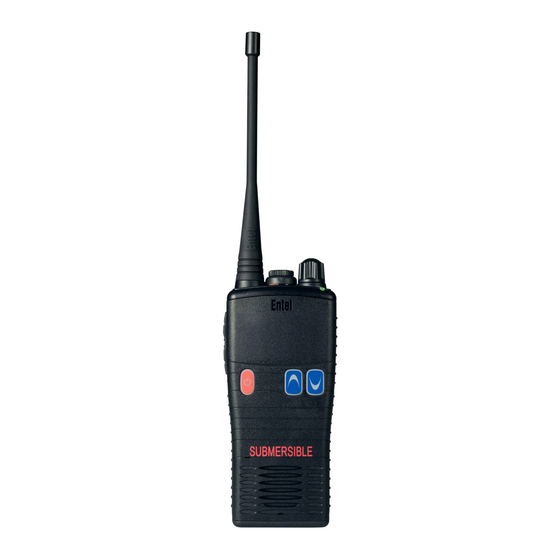

HT642 Standard Features: • Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes • Robust design, exceeds MIL-STD-810C/D/E/F • 1800mAH Lithium-Ion battery for superior operational time • 16 programmable channels • Full transmit power output 5 Watts •... -
Page 12: Controls & Indicators
Controls & Indicators Monitor button Channel / Scan / control Antenna Dealer programmable LED indicator button 1 Push To Talk (PTT) button Volume control Dealer programmable button 2 Speaker On / Off Microphone On / Off button. Press to turn radio on, press and hold to turn off. Press up / down buttons to increase / reduce volume. -
Page 13: Ht644
HT644 Standard Features: • Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes • Robust design, exceeds MIL-STD-810C/D/E/F • LCD screen to display channel number • 1800mAH Lithium-Ion battery for superior operational time • INT, USA, CAN channels •... -
Page 14: Controls & Indicators
Controls & Indicators Monitor button Antenna On / off Volume control LED indicator WX button H/L button Scan button Push To Talk (PTT) button Up / down buttons Lamp / key lock button 16/9 button MEM button A/B button Speaker Microphone Monitor button. -
Page 15: Lcd Icons
LCD Indicators • High power selected (5 Watts) • Low power (1 Watt) • Transmit in progress • Receive in progress • Indicated channel is memorised for scanning • Scrambler mode enabled (version A & B only) • Voice operated mode enabled •... - Page 16 PAGE INTENTIONALLY LEFT BLANK...
-
Page 17: Ht648 (Gmdss)
HT648 Standard Features: • Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes • Robust design, exceeds MIL-STD-810C/D/E/F • GMDSS (Conforms to Pan European Specification ETS300-225 for the use of radios for Safety at sea •... -
Page 18: Controls & Indicators
Controls & Indicators Monitor button Channel Change Antenna Dealer programmable LED indicator button 1 Push To Talk (PTT) switch Volume control Dealer programmable button 2 Speaker On / Off Microphone On / Off button. Press to turn radio on, press and hold to turn off. Press up / down buttons to increase / reduce volume. -
Page 19: Ht649 (Gmdss)
HT649 Standard Features: • Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes • Robust design, exceeds MIL-STD-810C/D/E/F • GMDSS (Conforms to Pan European Specification ETS300-225 for the use of radios for Safety at sea •... -
Page 20: Controls & Indicators
Controls & Indicators Antenna Volume control Monitor button LED indicator Scan button Push To Talk (PTT) switch Channel change Function button On / Off MEM button Ch16 button Speaker Microphone On / Off button. Press to turn radio on, press and hold to turn off. Monitor button. -
Page 21: Lcd Icons
LCD Indicators • Keypad lock • Battery State • Channel Monitor • Memorise channel for scanning... - Page 22 NOTES...
- Page 23 NOTES...
- Page 24 ‘the professional’s choice’ <Intended Country Of Use> Registered Community Design Application 000810890 U.S. Design Patent Pending No. 23/182,829 Copyright and Unregistered Design Right Entel UK 2008 All rights reserved Headquarters: United Kingdom www.entel.co.uk...
