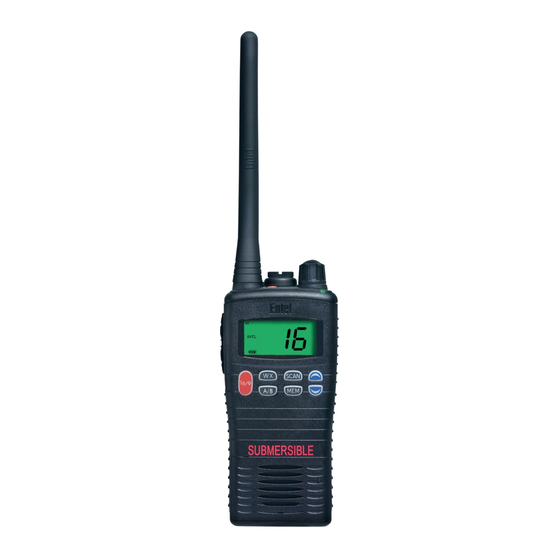

Entel HT644 Series Quick Start User Manual

PREPARING YOUR RADIO FOR USE SWITCHING ON, RECEPTION
AND SWITCHING OFF
Attaching / removing the aerial
1. To switch on, rotate the on/off/volume control
(1) on the top of the radio clockwise.
2. When the radio has passed its diagnostic tests,
A
it will emit a fanfare tone.
3. The radio will enter standby mode. This is
indicated by the LED Amber flashing once
every 5 seconds, signalling that the radio is
B
ready for use.
4. Adjust the volume control (1) to select the
desired volume level.
5. Using the channel buttons (3) ensure you have
the correct channel selected.
6. When receiving a valid signal, the LED will
illuminate steady green and audio will be
emitted from the radio's speaker or audio
accessory (if attached)
1. To attach, carefully align the aerial with
7. When finished using the radio, switch off by
the socket. Screw in the aerial clockwise
turning the on/off/volume control (1) until it
(taking care not to cross the thread) until it
clicks and the radio will be switched off.
is seated firmly with the accessory cover's
rubber ring between the aerial and the top
of the radio. (A)
TRANSMITTING
2. To remove, unscrew the aerial anti-clockwise.
1. Perform steps 1 through to 5 of 'Switching On,
(B)
Reception and Switching Off.'
Attaching / removing the battery pack
2. Before transmitting, monitor the channel and
make sure it is clear.
C
3. When receiving a signal, wait until the signal
stops before transmitting. The transceiver
cannot transmit and receive simultaneously.
4. Press the PTT (Push To Talk) button (4) to begin
your transmission. To confirm transmission the
LED illuminates red.
5. For best transmitted speech quality you must
D
talk directly into the radio's microphone (10) at
around 4cm between your mouth and the radio.
6. Please note: if you talk into the top of the
1. To attach, locate the pegs on the bottom of the
radio or with your mouth further away, you will
battery into the slots on the radio and press
transmit poor quality speech.
the top of the battery against the radio. Secure
7. When the transmission is finished, release the
battery by tightening the screw clockwise
PTT button.
by hand. (Do not use any implement or
overtighten). (C)
2. To remove, unscrew the locking screw anti-
clockwise and pull the battery away from the
top of the radio. (D)
