AUDIO | VIDEO MEDIA CONTROLLER
5. Select Function->Custom->arrow keys.
Figure 6-12 shows the Function menu after selecting the arrow keys Custom
Wheel Command.

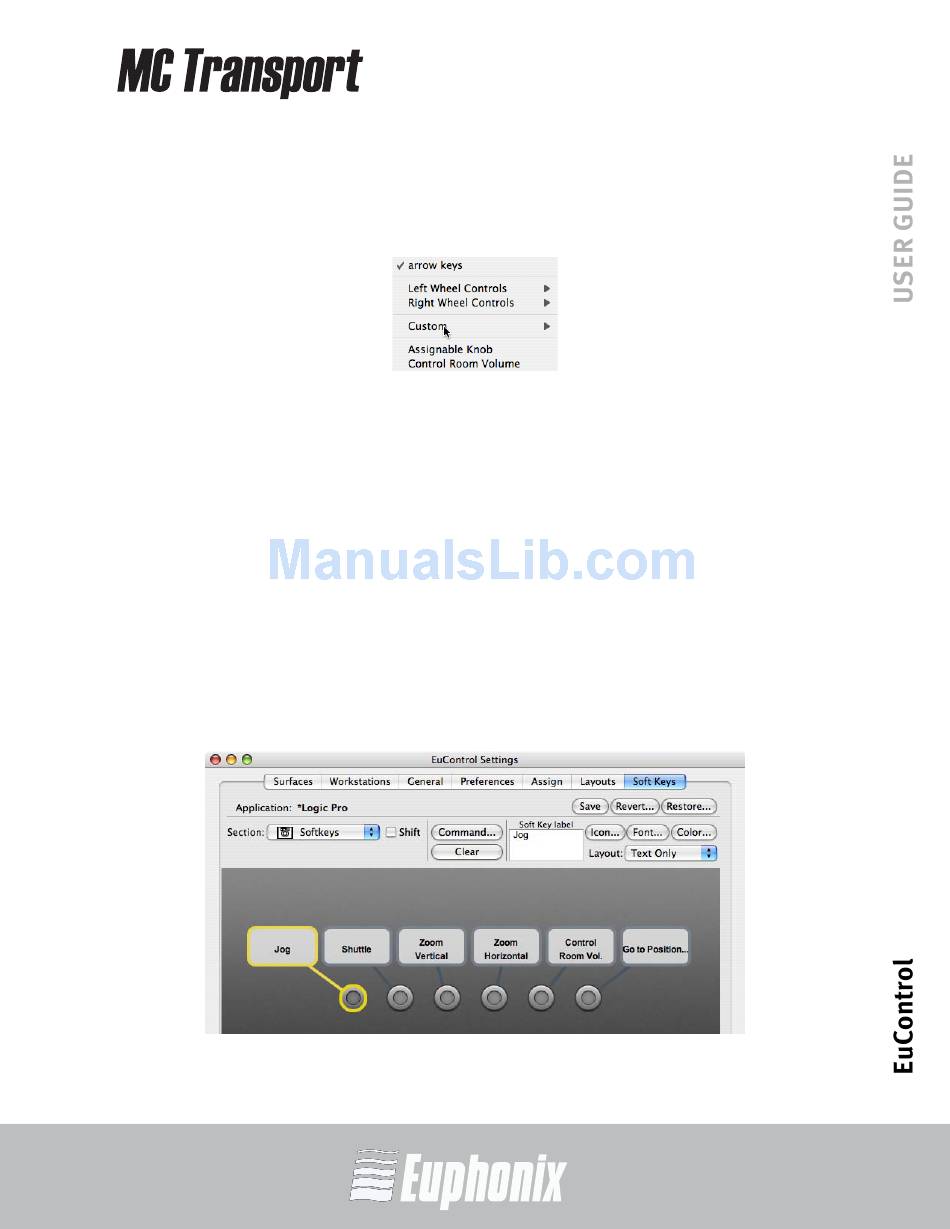

Figure 6-12 Function popup menu with arrow keys selected
6. Close the Soft Key Command Editor dialog.
7. Press the Jog Soft Key and spin the Jog Wheel to experiment with the new
Wheel command.
To set the Wheel Sensitivity to suit the command, see page 37.
Assignable Knob
In some applications, the Jog Wheel can control knobs and sliders. Some appli-
cations require clicking on the control while others allow the cursor to hover
over it.
1. Select Soft Keys from the Section popup.
The Soft Keys dialog in Figure 6-13 opens.
Figure 6-13 Soft Keys dialog
51
