Summary of Contents for HITEC Smart Charger H4

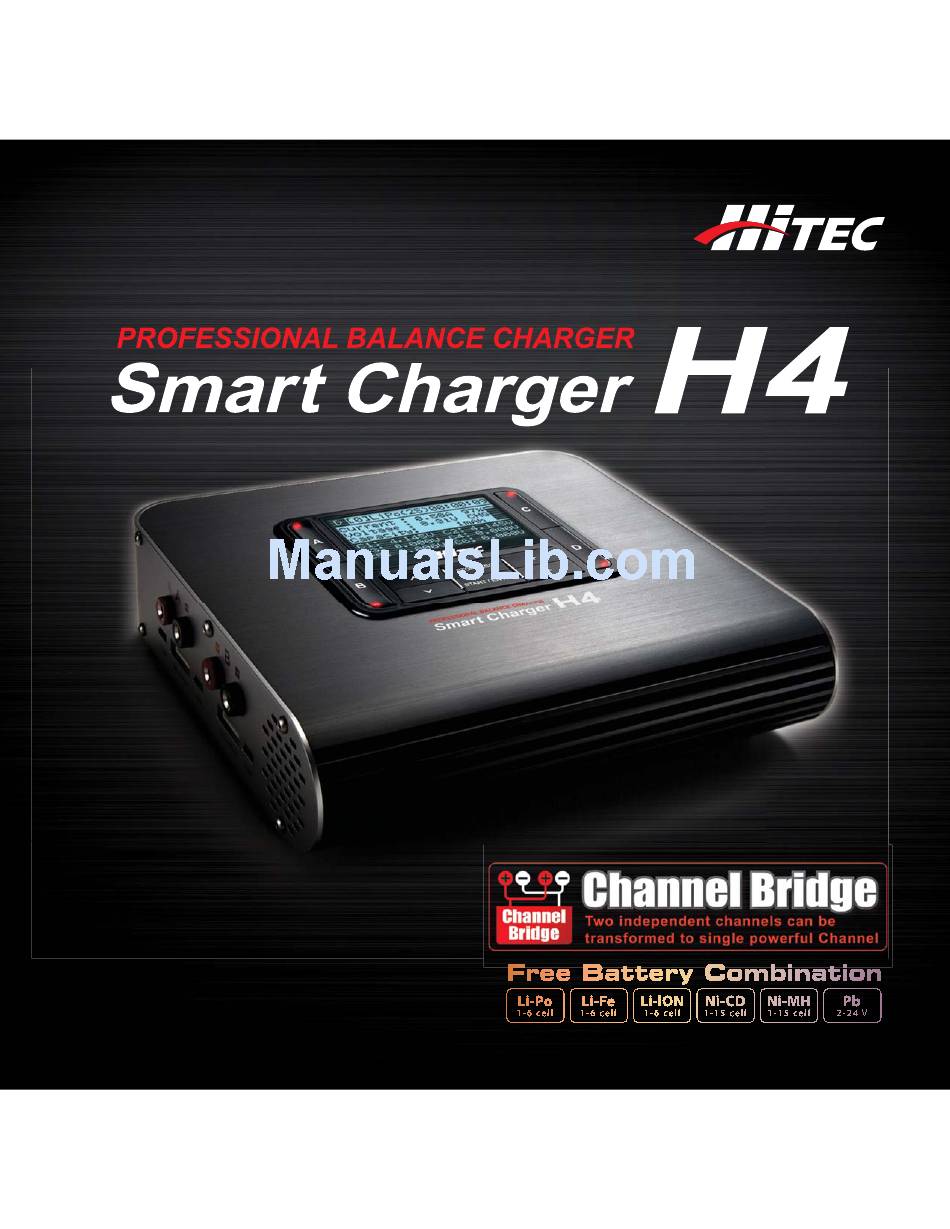

- Page 1 Instruction Manual...
- Page 2 Instructions Section Page Instructions Section Introduction Contents Input Button Hitec Instruction Manual...
- Page 3 Instructions Section Page Accesories Hitec Instruction Manual...

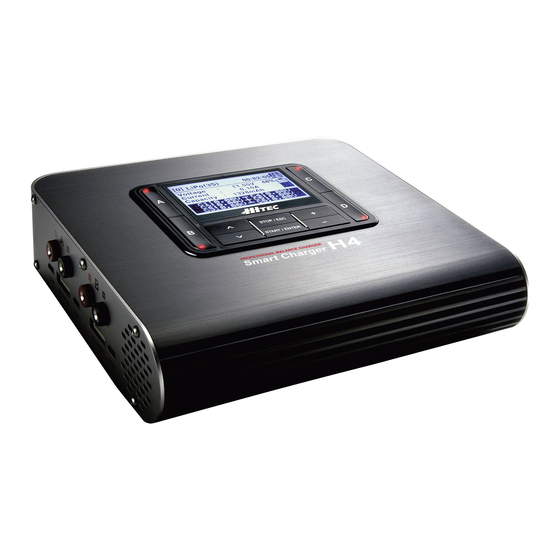

- Page 4 Lithium battery balancing features. The Hitec H4 Multi-Charger features four totally independent and identical 120 watt charging circuits for a total power of 480 watts. As a result, it can simultaneously charge or discharge up to 4 separate battery packs.
- Page 5 Please use the correct battery connector according to your battery type. Connectors, cables and cell balancer boards are sold separately. Please contact your local hobby shop or the battery manufacturer for the right battery connector. For more information please visit the Hitec website at www.hitecrcd.com.
- Page 6 Menu Button Start / Enter Button (- button) (Down) Start function or Enter the Submenu with this button Move the menu with this button Value can be changed by this button Cancel or Stop operation with this button Hitec Instruction Manual...
- Page 7 Support Bar The Hitec H4 Multi Charger automatically controls the current rate during the charging or discharging process. This feature can prevent the user from overcharging their batteries which could lead to damage or injury. If the charger detects a malfunction, the circuit automatically disconnects and an alarm will sound. The operat- ing functions of the Hitec H4 Multi Charger are controlled through a two-way communication link in order to maintain maximum safety with minimal errors.
- Page 8 The Hitec H4 Multi Charger is designed to check all 4 channels’ charging/discharging status at the same time on one screen. The Hitec H4 Multi Charger provides battery cell balance status. The user can check the battery cell's balance status on the H4's screen without having to use a separate cell balancer.
- Page 9 IF THE CHARGER MALFUNCTIONS FOR ANY REASON, TERMINATE THE COVER THIS PLACE WHEN OPERATE H4. IF UNAVOIDABLE, PLEASE PROCESS IMMEDIATELY AND REFER TO THE INSTRUCTION MANUAL USE SUPPORT BAR FOR SECURE VENTILATION. OR CONTACT HITEC CUSTOMER SERVICE. Hitec Instruction Manual...
- Page 10 3.7V/Cell 3.3V/Cell 2.0V/Cell 1.5V/Cell 4.1V/cell 4.2V/Cell 3.7V/Cell 2.45V/Cell 1C-2C 1C or Less 1C -2C 4C or Less 0.4C or Less (NiCd. NiMH) 0.9V / Cell 3.0V/Cell or more 3.0V/Cell or more 3.0V/Cell or more 1.8V/Cell or more Hitec Instruction Manual...
- Page 11 Some rechargeable batteries have a memory effect. If they are partly used and recharged before the complete charge/discharge cycle is accomplished, they remember this and will only use that part of their capacity next time. It is generally known that NiCd and NiMH batteries suffer from this memory effect. Hitec Instruction Manual...
- Page 12 Please check your battery cell number again. Please check your battery cell number again. This screen indicates that in the Hitec Channel Bridge function, a This screen indicates that the charger has malfunctioned for some voltage level difference occurred between the bridged channels.
- Page 13 [+] [-] => Scroll through Alpha, Numeric and special characters with these keys The Hitec H4 has a default charge C rate of 1.0, however this can be adjusted between 0.5C and 3.0C depending on the user's needs. It is recommended that this rate always be set to the default.
- Page 14 Second System Mode display screen (3) The Hitec H4 has a default discharge C rate of 1.0, however this can be adjusted between 0.5C and 3.0C depending on the user's needs. It is recommended that this rate always be set to the default. You can always adjust the charge rate during the individual battery charge / discharge setup procedure.
- Page 15 The Hitec Channel Bridge Function provides higher charge amperage for charging high capacity batteries faster. With this function, two 120W output powers can transform into a single 240W output. Hitec's H4 allows for 4 different types of charge/discharge channel setup: ‘A,B,C,D’ , ‘A+B, C,D’, ‘A,B,C+D’ and ‘A+B, C+D’...
- Page 16 The Hitec H4 Multi Charger is designed to charge/discharge Lithium batteries: Lithium Ferrite (LiFe), Lithium Ion (LiIon) and Lithium Polymer (LiPo). It is very important that you determine the type of battery you are charging and set the charging parameters correctly. It is important that the nominal voltage, nal voltage, and battery capacity be properly set for the desired operation.
- Page 17 Failure to properly setup your charging parameters increases the risk of a re or explosion that can result in property damage, injury or loss of life. Before proceeding double check your setup to ensure it is correct. Hitec Instruction Manual...
- Page 18 Sets the Charge End Voltage The Hitec H4 Multi Charger provides a maximum charge voltage for your battery. This function is helpful in safely charging your Lithium chemistry batteries. Before changing this setting, refer to the data from the battery's manufacturer. The factory set up is the ‘Default’ value which is: LiPo = 4.2v, LiIon =4.1v, LiFe = 3.6v. You can manually set it up by 0.01v increments.
- Page 19 Sets the Maximum Battery Capacity in Percentage The Hitec H4 Multi Charger provides battery capacity based on percentage(%). If somehow the battery has not been fully charged, you can charge your battery ac- cording to the ‘Max Capacity’ rate. The default is set at 100% and is adjustable between 50 to 150%.
- Page 20 Storage Mode is operated independently on all 4 channels. After the H4 checks your battery, the 'Storage Mode' process will begin. Depending upon the condition of your battery, the H4 will select charge or discharge automatically until it reaches the desired capacity. Hitec Instruction Manual...
- Page 21 The Hitec H4 Multi Charger provides a Battery Cell Balance Check function so you don't need a separate device to check the balance of your battery's cells. The display will show, the number of cells, percentage of capacity remaining, minimum and maximum cell voltage as well as the range of balance. Also displayed are each individual cells voltage so you easily identify a bad cell if necessary.
- Page 22 The Hitec H4 Multi Charger is designed to charge and discharge NiCd and NiMH type batteries. It is very important that you determine the exact type of battery you are charging and set the charging parameters correctly. The following information refers to basic charging setup for more advanced setup options refer to page 23.
- Page 23 Sets the Safety Temperature when using the optional temperature probe You can monitor battery temperature during the charge/discharge process via the Temp sensor (sold separately). The default is set to 50°C (122°F) but can be adjusted between 20°C to 80°C (68° to 176°F). Hitec Instruction Manual...
- Page 24 Sets the Maximum Battery Capacity in Percentage The Hitec H4 Multi Charger provides battery capacity based on percentage (%). If somehow the battery has not been fully charged, you can charge your battery according to the ‘Max Capacity’ rate. The defa ult is set at 100% and is adjustable between 50 to 150%.
- Page 25 The H4 can display each of the 4 channel’s information at ity, End Temperature, End Voltage cutoff, Trickle current and the same time. Displayed are each battery's voltage, charge Delta Peak setup. Amperage and charge/discharge During the Cycling, you can see the battery cycle data. Hitec Instruction Manual...
- Page 26 1C charge rate When the battery reaches the target capacity, the charge Charge screen appears process will terminate automatically. Press the (V) button to continue. Choose either Normal or Pulse Charge and press enter to begin the Charge Once started the charging progress screen will appear. process. Hitec Instruction Manual...
- Page 27 The default is set at 2 hours and can be set from 10 to 1,380 minutes. Sets the Maximum Battery Capacity in Percentage The Hitec H4 Multi Charger provides battery capacity based on percentage (%). If somehow the battery has not been fully charged, you can charge your battery according to the ‘Max Capacity’ rate.
- Page 28 This screen displays the type of charge End Time, End Capac- The H4 can display each of the 4 channel’s information at ity, End Temperature: End Voltage cutoff, and Trickle current. the same time. Displayed are each battery's voltage, charge Amperage and charge/discharge status. Hitec Instruction Manual...
- Page 29 Once the Discard Mode processed most batteries cannot be recovered. Please use this function carefully. Discard Mode supports all batteries that can be charged with the Hitec H4 Multi charger 2Sec. To get to the Battery Discard Mode function you must go to The type of battery pack will appear along with the number of the second System Mode screen.
- Page 30 The Hitec Channel Bridge function has a unique and specialized R/C purpose. Using the Hitec Channel Bridge system you can bridge two 120 watt charge ports together so they can be used as a higher current 240 watt single port. With this innovative function, the H4 can cover both the R/C novice and high end user’s demands.
- Page 31 4A discharging. This is very useful when you want to charge high capacity batteries, such as those used in electric helicopters, large scale planes, electric monster trucks and off road buggies. CHG :16A CHG :16A DCHG :4A DCHG :4A Hitec Instruction Manual...
- Page 32 DCHG :2A The Hitec Channel Bridge function can only be used with the Bridge cable. A set of Bridge cables is provided in the H4 Box. Extra Bridge cables are sold separately. Make sure to connect the bridge according to your setup as shown in the illustrations.
- Page 33 When A+B channels are bridged and C & D operated When C+D channels are bridged and A & B operated independently independently The Cursor above is on battery data memory number Each channel can be save 10 separate battery setups [0-9]. Hitec Instruction Manual...
- Page 34 Accessories Connector Connector Connector The Hitec H4 satis es all relevant and mandatory FCC and EC regulatory directives including the following. Test Standards Title Result CE-LVD EN60335 For safety of household and similar electrical appliances. Conform CE-EMC EN 55014-1:2006 Electromagnetic compatibility-Requirements for household appliances ,electric tools and Similar apparatus -...
- Page 35 ONE YEAR LIMITED WARRANTY For a period of one year from the date of purchase HITEC RCD USA, INC. shall REPAIR OR REPLACE, at HITEC RCD, INC.'s option, defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the radio. This warranty does not cover cosmetic damages and damages due to acts of God, accident, misuse, abuse, negligence, improper installation, or damages caused by alterations by unauthorized persons or entities.
- Page 36 Firmware Upgrade by HPP-22 Please make a plan to visit to Hitec RCD Homepage www.Hitecrcd.com for rmware upgrade (Smart Charger H4 rmware can be upgraded by HPP-22 device) History shows like above picture, “No History” can show when you Recent History function can be stored Charge/Discharge history operate this function for the rst time.
- Page 37 Charge/Discharge history. Please Charge/ new history, the data form bottom of screen will be erased. Discharge your battery and back to check this screen. Your previous Charge/Discharge will be shown on this screen as a history Hitec Instruction Manual...
