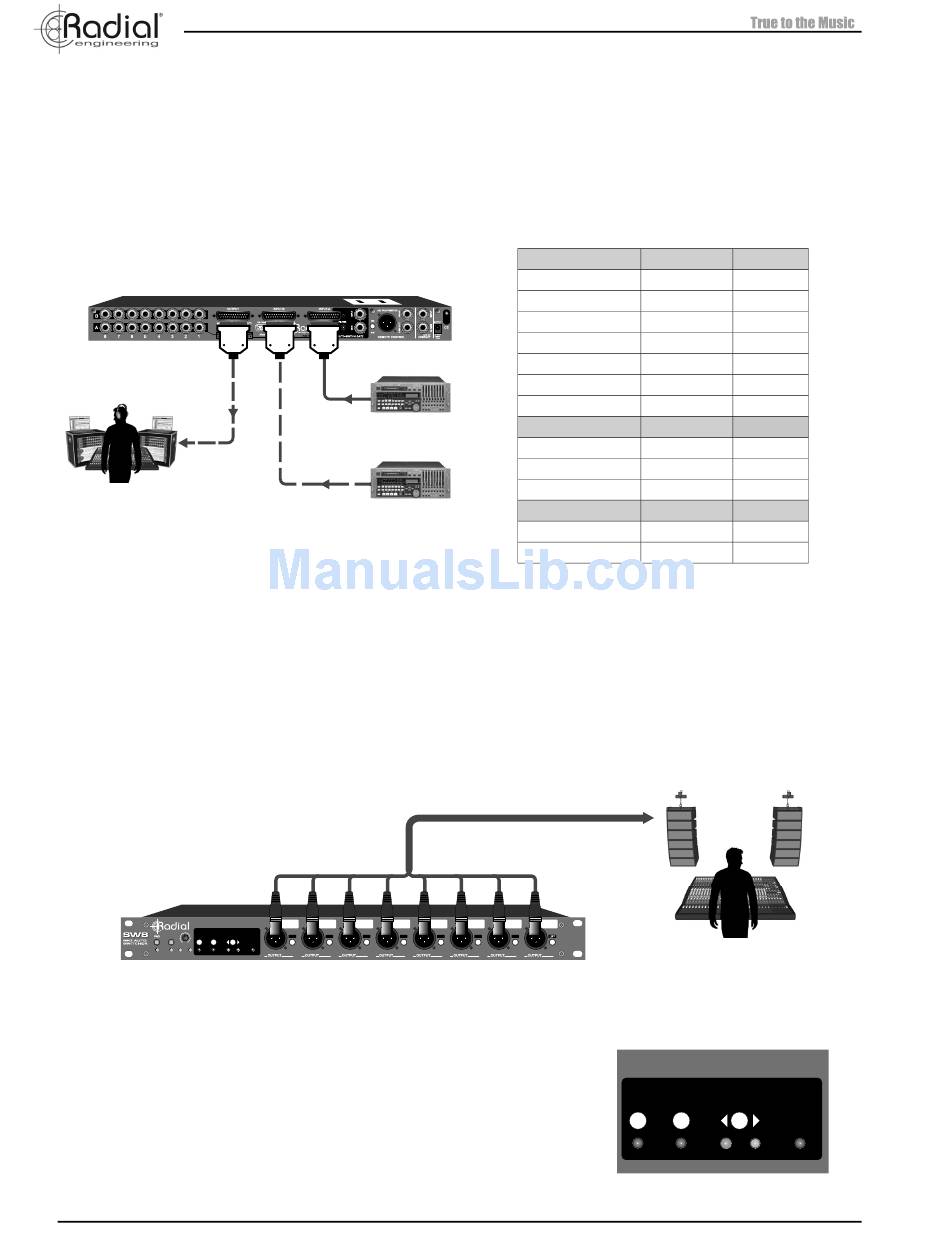

MAKING CONNECTIONS

As with all audio equipment, ensure system levels are turned off before making any connections. This will help avoid turn-on or plug-in
transients that could damage more sensitive components such as tweeters. There is no power switch on the SW8. As soon as you connect
the power supply, it will turn on and one of the LED's below the AB select switch will illuminate to let you know power is on. To prevent
accidental disconnect, there is a cable lock next to the power input jack that is used to loop-through the power cable.
Connect your two playback machines to the SW8 inputs and send the output to your monitor system using the rear panel D-Sub. Before
you hit play... set the SW8 in 'start-up mode' as follows:
PLAYBACK SYSTEM
CONTROL
Always test at a low volume as this will reduce possible damage due to improper connections. Turn on both playback systems and try
switching between inputs A and B by depressing the front panel AB select switch.
If all is well, connect the XLR-male outputs from the front panel to your main PA mixer. These outputs are isolated to help eliminate the hum
and buzz that often fi nd their way into audio systems. If you encounter noise, try lifting the ground by depressing the lift switch adjacent
to each output. In the event that you hear distortion, check to make sure your signal levels are not overloading the input on your console
by adjusting the preamp trim. If the problem persists, simply depress the global PAD on the SW8 and the input sensitivity going to the
transformer isolated XLR outputs will be reduced by -20dB. The PAD switch is recessed to prevent being accidentally depressed during a
live show.
®
CONTROL MONITOR
PAD AUTO MUTE STANDBY INPUT SELECT
A
THRESHOLD
GLOBAL ON A TONE B
Using the mute switch
The SW8 is equipped with a mute function that turns off the XLR outputs on the front
panel. This innovative feature enables the playback technician to mute the outputs going
to the PA while leaving the D-Sub output unaffected. This lets you cue up tracks or make
level adjustments 'on the fl y' without disturbing what may be happening in the main PA
system.
To use the mute function, depress the MUTE switch on the front panel. An LED indicator
illuminates when the function is active to alert you the XLR outputs are muted. Depress
the MUTE switch again to turn the function off and restore playback through the XLR
outputs.
Radial Engineering Ltd.
PRIMARY-A
MULTI-TRACK
BACKUP-B
MULTI-TRACK
ALARM LIFT LIFT LIFT LIFT
TONE
B
BELOW
THRESHOLD
PIN-1 PIN-1 PIN-1 PIN-1
Front panel XLR outputs feed the main PA system.
FUNCTION - FRONT
PAD
AUTO
THRESHOLD
MUTE
STANDBY
AB SELECT
LIFT (X8)
FUNCTION - REAR
ALT CHANNEL 1/8
FILTER
JR2-ON
FUNCTION - TOP
REMOTE LINK
STANDBY
8-CH AUTO
LIFT LIFT LIFT LIFT
BACK-UP
SWITCHER
PIN-1 PIN-1 PIN-1 PIN-1
D
4
STATUS LED
OFF OFF
OFF OFF
12 O'CLOCK OFF
OFF OFF
OFF OFF
A ON
OFF
STATUS POSITION
CHANNEL 1 OUT
OFF CENTER
OFF OUT
STATUS TOWARDS
SW8-MK2 FRONT
LOCAL BACK
SOUND REINFORCEMENT
SYSTEM
CONTROL MONITOR
MUTE STANDBY INPUT SELECT ALARM
TONE
A B
BELOW
THRESHOLD
