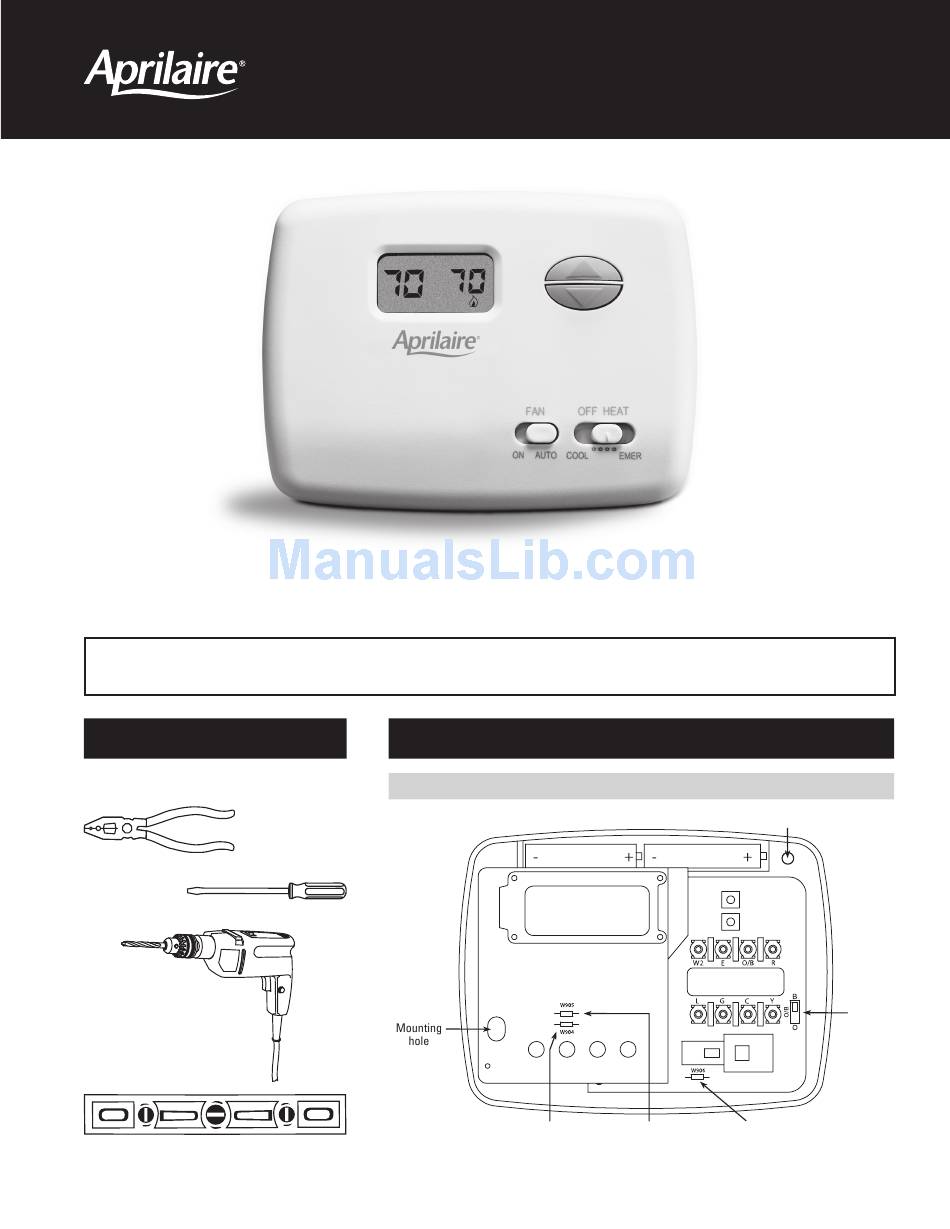

Model 8246 Installation and Operation Manual
Non-Programmable Heat Pump Thermostat
Failure to follow and read all instructions carefully before installing or operating this control could cause personal
injury and/or property damage. If you have any questions, please call Research Products Corporation at (800) 334-6011.
PREPARATIONS
Assemble tools required as shown below.
Wire cutter/stripper
Flat blade
screwdriver
Electric or cordless
drill with 3/16 inch
drill bit, if needed.
Level
THERMOSTAT DETAILS
FIGURE 1 – Thermostat Base
W904 Clip
for Celsius
instead of
Fahrenheit
Thermostat
Mounting hole
W905 Clip for
W906 for Emergency Heat
Slow Cycle
Second Stage Fan Control.
instead of
Clip for Fan Control by Equipment
Fast Cycle
instead of by Thermostat.
O/B
Terminal
Selection
Switch
