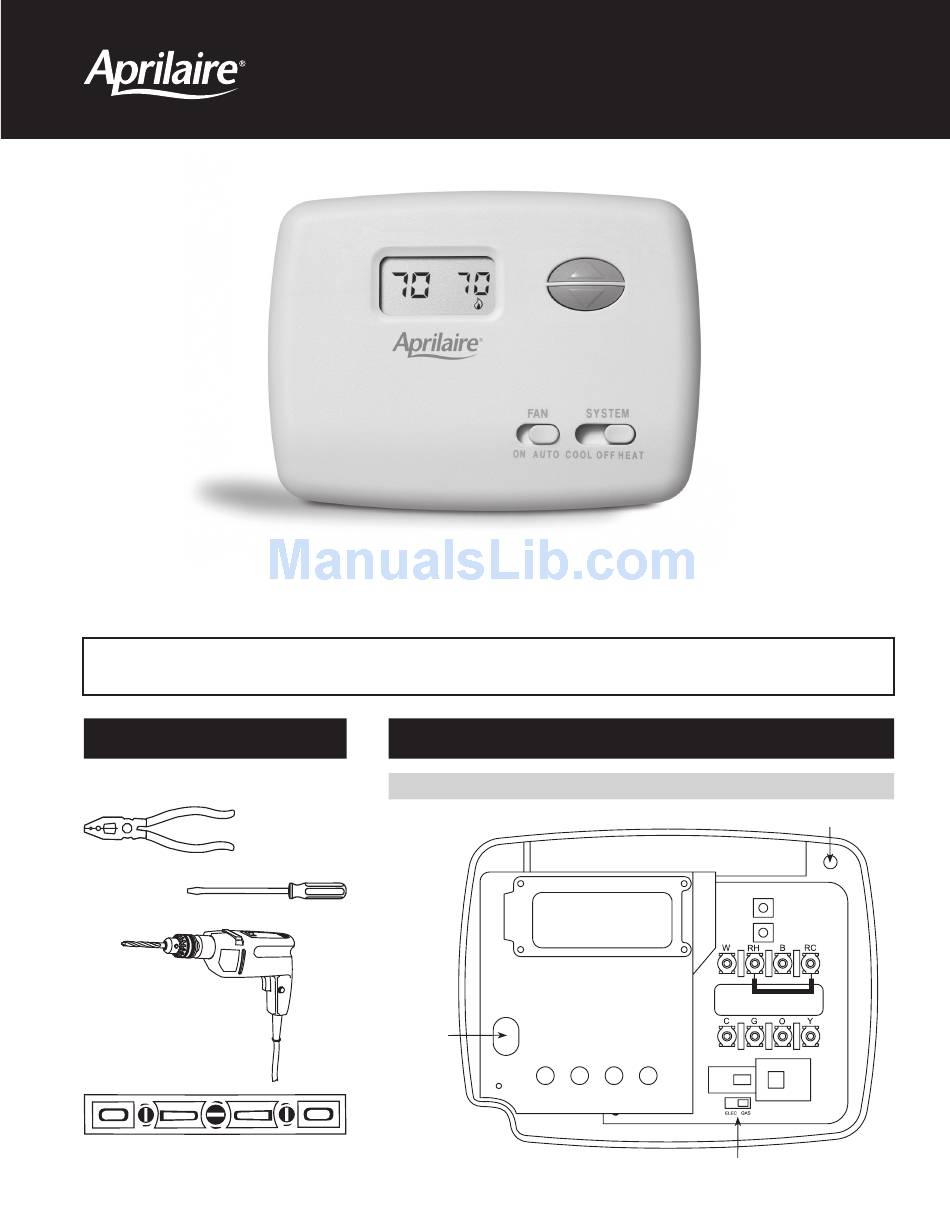

Model 8244 Installation and Operation Manual
Failure to follow and read all instructions carefully before installing or operating this control could cause personal
injury and/or property damage. If you have any questions, please call Research Products Corporation at (800) 334-6011.
PREPARATIONS
Assemble tools required as shown below.
Wire cutter/stripper
Flat blade
screwdriver
Electric or cordless
drill with 3/16 inch
drill bit, if needed.
Level
Non-Programmable Thermostat
THERMOSTAT DETAILS
FIGURE 1 – Thermostat Base
Mounting
hole
Thermostat
Mounting hole
Electric/Gas Switch
