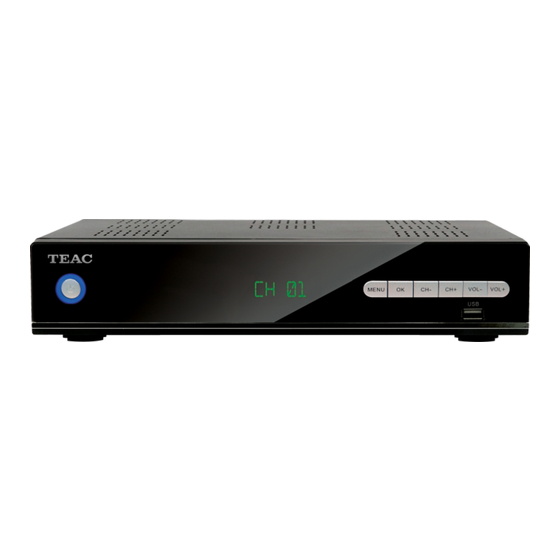

Teac HDR9650TS User Manual

Teac HDR9650TS User Manual

Twin tuner hd digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Teac HDR9650TS

Summary of Contents for Teac HDR9650TS

  • Page 3 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Customer Support Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
  • Page 4 Authorised Service Centre for repair. In this event, proof of purchase is required to support a warranty claim. After the repair, the product will be available for collection by or return to the purchaser at a fee upon request. TEAC in- home service can be made available at a fee upon request.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Safety Instructions ___________________________________1 Introduction ___________________________________2 Panel Overview ___________________________________3 Remote Control ___________________________________4 Equipment Connection ___________________________________6 Main Menu ___________________________________9 Basic Operation __________________________________14 Electronic Program Guide __________________________________18 Recording Operation __________________________________20 Network __________________________________24 Troubleshooting __________________________________37 Specifications __________________________________38...

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS Always read the safety instructions carefully. Keep this User Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a stable flat surface before setting it up. Do not place it on soft furnishings. If any of the following situation arises, get the equipment checked by a service technician: - The equipment has been exposed to moisture.

  • Page 7: Introduction

    INTRODUCTION Thank you for choosing the HDR9650TS. With its Twin Tuners and HDMI 1080i connection, you can watch all new digital DVB-T channels in High Definition. To get the best of the High-Definition programs, we advise you to connect the receiver: To your television with an HDMI cable for superior picture quality.

  • Page 8: Panel Overview

    PANEL OVERVIEW Front Panel STANDBY button: To turn ON/OFF Standby Mode. USB Slot: Connect for software upgrades. MENU: To enter the Main Menu. OK: To confirm the selected menu item. 5-6. CH-/+ : To change the channel up/down. 7-8. VOL-/+ : To control the level of the volume. Rear Panel ANT OUT: RF signal output to other receivers such as a TV.

  • Page 9: Remote Control

    REMOTE CONTROL Button Functions POWER: Turn Standby mode ON/OFF. (No function) Numeric buttons (0-9): To enter numeric options in menus and to enter a channel number directly. EPG: Access the Electronic Program Guide. MENU: Access the main menu. While in the submenus, press to return to the previous menu.

  • Page 10: Installing The Batteries

    To use the remote control, point it towards the front of the HDR9650TS. The remote control has a range of up to 7 meters from the HDR9650TS at an angle of up to 60 degrees (30 degrees on each side).

  • Page 11: Equipment Connection

    EQUIPMENT CONNECTION How to get good reception You do not need to change or replace your existing TV antenna to receive digital signal. However, if your antenna is not in a good condition it is recommended that you consider replacing it to ensure uninterrupted digital television viewing. Viewers in areas of poor analog reception may need specialists’...
  • Page 12 EQUIPMENT CONNECTION Connect the unit via YpbPr output and Audio output (for high definition viewing) Connect the antenna with ANT IN on the unit. Connect the RF loop cable via LOOP IN and LOOP OUT. Connect the unit to TV with a YPbPr cable as below. Connect the unit via HDMI output (for high definition viewing) Connect the antenna with ANT IN on the unit.
  • Page 13 EQUIPMENT CONNECTION Audio connections via SPDIF/Mixed Audio L/R Output Connect the antenna with ANT IN of the unit. Connect the RF loop cable via LOOP IN and LOOP OUT. Connect the unit to TV via AV cable as shown below.

  • Page 14: Main Menu

    MAIN MENU Press [MENU] to open the MAIN MENU. Descriptions of each item are as follows: Electronic Program Guide Menu Press [OK]/[▶] to enter the EPG List. For more about using the EPG, see page 18. DVR Menu Media Browser Press [OK]/[▶] to enter the DVR List for playback of media files (movies, music and photos) that have been recorded or from a connected media server.
  • Page 15 Auto Play Next Program - Available options: Enable or Disable - By selecting “Enable”, the HDR9650TS will play the next recorded program in the list once the current program is finished. - By selecting “Disable” the HDR9650TS will only play the program which was selected.

  • Page 16: Network Menu

    MAIN MENU NETWORK Menu Press [OK]/[▶] to enter Network Menu. Internet Radio Network Neighborhood Weather Network Status - Ethernet - Wi-fi TUNING Menu Press [OK]/[▶] to enter Installation Menu. Auto Channel Search (please refer to page 13 for detailed instructions) Manual Channel Search (please refer to page 13 for detailed instructions).
  • Page 17 MAIN MENU Time Display current Date Display current Time Daylight Saving Time Region NOTE: Time is automatically set by your local DTV broadcasting system. Parental Control Parental Lock Parental Rating Installation Menu Setting Menu DVR Menu New Password Confirm Password NOTE: - If you select “Lock”...

  • Page 18: Scanning For Channels

    MAIN MENU Firmware Update Upgrade the software of the unit. (For details please refer to page 17) Factory Default Restore factory default settings, erasing all customised settings. (For details please refer to page 17) Scanning for channels Press [MENU] and then press [LEFT]/[RIGHT] and highlight [Tuning]. Press [OK]/[▶] to enter the [Tuning] menu.

  • Page 19: Basic Operation

    BASIC OPERATION Changing Channels Open the Channel List menu by pressing [OK] in Live TV Mode. Press [UP]/[DOWN] to navigate available channels. Press [OK] to view the selected channel. Channel Change can also be done by: Pressing [CH+][CH-] in Live TV Mode. Keying in the channel number using the numeric keypad in Live TV Mode.
  • Page 20 BASIC OPERATION Subtitle Press [SUBTITLE] to navigate between available subtitles of the currently viewed channel or to turn them off. Subtitle selection will be displayed in the top corner of the screen. Aspect Press [ASPECT] to cycle between available options: 16:9 Full, 16:9 Letter Box, 16:9 Pan Scan, 4:3 Full, 4:3 Letter Box and 4:3 Pan Scan.

  • Page 21: Time Shift

    BASIC OPERATION Time Shift Activate Time Shift by pressing [PAUSE] in Live TV Mode. Time Shift supports a temporary program recording of up to 2 hours. The Main Screen will be paused. The information display shows the amount of time you are behind the Live TV broadcast. Press [PLAY]/[PAUSE] to resume viewing.

  • Page 22: Firmware Update

    Firmware can be updated via the USB port. Once you have downloaded the firmware from www.teac.com.au, place it on a USB stick. Please ensure that the USB stick has no other files stored on it other than the required software file.

  • Page 23: Electronic Program Guide

    ELECTRONIC PROGRAM GUIDE Access the EPG by pressing [EPG] in Live TV Mode. Channel/Program Navigation Press [▲][▼] [CH+][CH-] to highlight a desired channel, then press OK to view this channel. Press the [▶] (RIGHT) button to enter the program list. Press [▲][▼] [CH+][CH-] to highlight a program, then press [INFO] to view detailed program information.
  • Page 24 ELECTRONIC PROGRAM GUIDE Setting Timer Recordings Alternatively, press the [RED] button to set a timer recording, the receiver will switch to the selected channel when the chosen program is due to begin. Pressing [RED] once will place a red square icon next to the selected program Pressing [RED] after setting the recording will allow you to modify the recording...

  • Page 25: Recording Operation

    RECORDING OPERATION Before recording, please select the storage destination (Internal HDD/USB) of the recorded program in the DVR menu (please refer to page 10 – DVR Setting menu). The unit will record to the Internal HDD (Built-in Hard Disk) by default if USB is not selected. The unit supports External HDDs or USB flash devices in FAT, FAT32, EXT2, EXT3 formats.
  • Page 26 RECORDING OPERATION Playback of Recorded Programs Open the Media Browser by pressing [REC.LIST] in Live TV mode. Press [OK] to preview the media file in the preview screen, press [OK] again to view the file in full screen. NOTE: If recording is in progress, the media file that is being recorded will be marked with a red square icon.

  • Page 27: Epg Recording

    RECORDING OPERATION Editing Recorded Programs In this mode you can remove sections of the recorded program, so that during playback, these sections will be skipped and playback will continue past the removed section. Open the DVR Menu by pressing [DVR] in Live TV mode. Select the recorded program you wish to edit using [▲][▼].
  • Page 28 RECORDING OPERATION File Copying Open the DVR Menu by pressing [DVR] in Live TV Mode. Press [▲][▼] to select the programs you wish to copy. Press the [RED] button to display the list of options. To copy a single file select Copy and press [OK].

  • Page 29: Network

    NETWORK In the Network menu you can listen to Internet radio stations, access media files from your PC and view weather information (upcoming). Please ensure you have the receiver connected to your internet connection via the Ethernet port on the rear panel. Once connected, the receiver will detect your network settings automatically.
  • Page 30 The Network Neighbourhood feature allows you to access and play media files that you have stored on your PC via the HDR9650TS such as video files, MP3 files and photos. Regardless of the operating system on your PC, the first step required is to create a folder on the PC’s local hard drive.
  • Page 31 NETWORK Open “Control Panel” and turn on the guest account Open “Control Panel” and double-click “Administrative Tools”. Double-click “Local Security Policy”.
  • Page 32 NETWORK In the left menu tree, double-click “User Rights Assignment” Double-click “Deny access to this computer from the network”. Select “Guest” account and click “Remove”. Click the “Apply” button to save the changes made. 10. Now you can add “Network Neighbourhood” on the Set Top Box (for full instructions please refer to the Network instructions on page 35) Please enter the correct IP address and folder name.
  • Page 33 NETWORK How to access media on a Windows 7 PC Right click the “Media” folder, and select “Properties”. Switch to the “Sharing” tab and click “Share”. Select an appropriate item, then click “Share” and “Done”...
  • Page 34 NETWORK Select “Security” page and “Edit”. Select “Add”. Input “guest” to the box and select “Check Names””Apply”.
  • Page 35 NETWORK Open “Control panel” ”System and Security” Select “Administrative Tools”. Double-click “Computer Management”.
  • Page 36 NETWORK 10. Select “Local Users and Groups””Users””Guest” 11. Unselect “Account is disabled”, click Apply, then click OK.
  • Page 37 NETWORK 12. Double-click “Local Security Policy”. 13. In the left menu tree, double-click “User Rights Assignment”. 14. Double-click “Deny access to this computer from the network”...
  • Page 38 NETWORK 15. Select “Guest” account and click the “Remove” button, then click Apply and OK.
  • Page 39 NETWORK 16. Now you can add “Network Neighbourhood” from the Set Top Box (for full instructions please refer to the Network instructions in the following pages) Please enter the correct IP address and folder name. Enter the username and password of the computer you wish to connect to.

  • Page 40: Set Up Network Neighbourhood On Receiver

    NETWORK Once you have set up the Media folder on your PC, follow the instructions below to connect the receiver to your PC over your network. To set up Network Neighbourhood on the receiver: Press [MENU] in Live TV mode. Select Network ...
  • Page 41 NETWORK WiFi Information Press [MENU] in Live TV mode. Select Network  WiFi setting hotspot Press [OK] to search for a WiFi and key in the password, if required. NOTE: WiFi signal strength may affect connectivity and data transfer speeds. DLNA Function Check the network status, and keep a note of the IP address.

  • Page 42: Troubleshooting

    If you experience problems with this unit or its installation, please read the relevant sections of this User Manual and this Troubleshooting section carefully. If problems persist, please call the TEAC Support Hotline for assistance at 1300 335 315. Problem...

  • Page 43: Specifications

    SPECIFICATIONS Item Specification Tuner Input Frequency 174~230MHz (VHF) & 474~858MHz (UHF) Bandwidth 7MHz Input Impedance 75 Ohms Input Level -80 ~ -20 dBm Channel Waveform/Demodulation COFDM / QPSK,16QAM, 64QAM decoding Video Decoding Standard MPEG-2: MP@ML, MP@HL VC-1: AP@L3, L2 Aspect Ratio 4:3, 16:9 Video Format PAL/NTSC Video...
