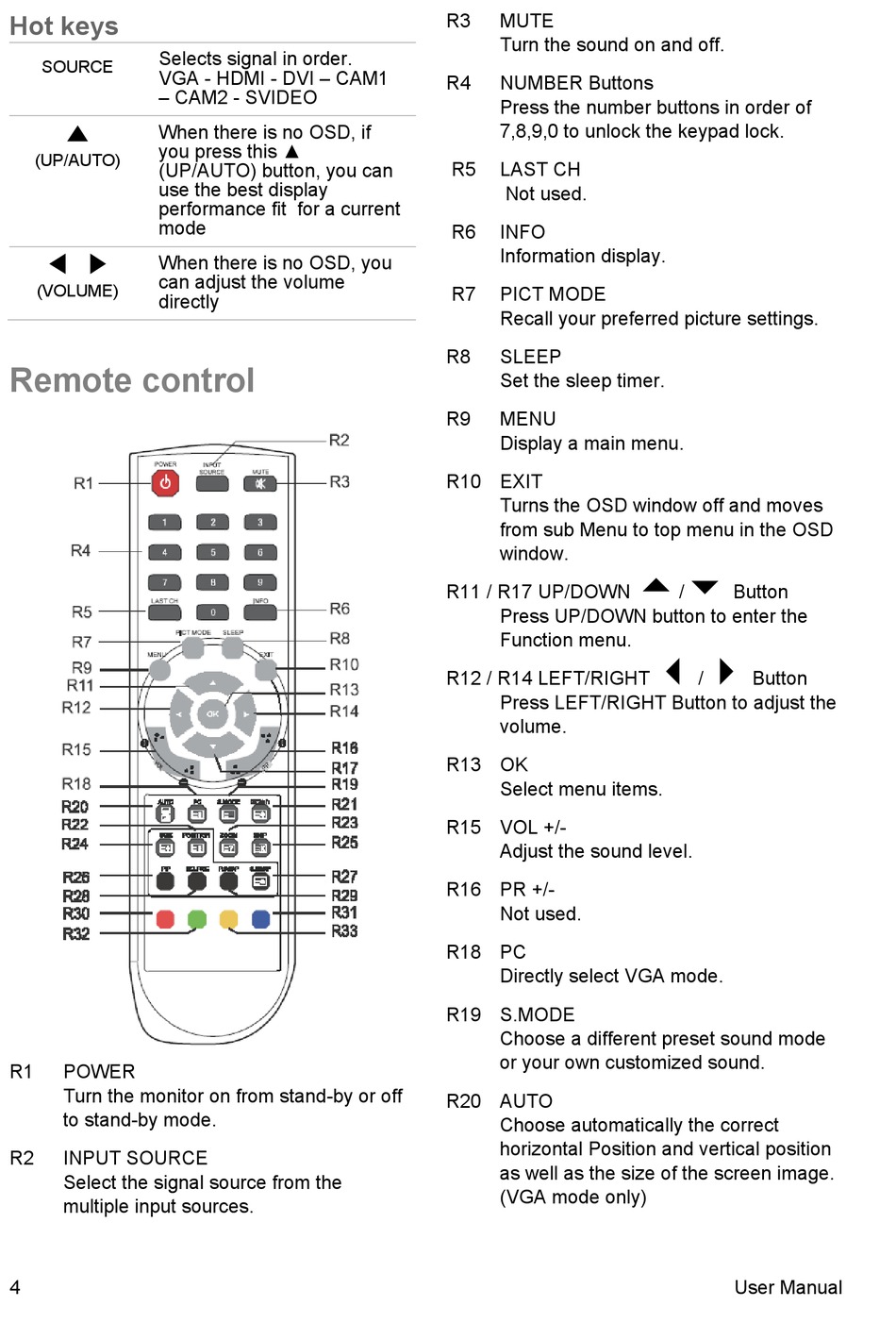

Hot keys

Selects signal in order.
SOURCE
VGA - HDMI - DVI – CAM1
– CAM2 - SVIDEO
When there is no OSD, if
▲
you press this ▲
(UP/AUTO)
(UP/AUTO) button, you can
use the best display
performance fit for a current
mode
When there is no OSD, you
◀ ▶
can adjust the volume
(VOLUME)
directly

Remote control

R1 POWER
Turn the monitor on from stand-by or off
to stand-by mode.
R2 INPUT SOURCE
Select the signal source from the
multiple input sources.
4
R3 MUTE
Turn the sound on and off.
R4 NUMBER Buttons
Press the number buttons in order of
7,8,9,0 to unlock the keypad lock.
R5 LAST CH
Not used.
R6 INFO
Information display.
R7 PICT MODE
Recall your preferred picture settings.
R8 SLEEP
Set the sleep timer.
R9 MENU
Display a main menu.
R10 EXIT
Turns the OSD window off and moves
from sub Menu to top menu in the OSD
window.
R11 / R17 UP/DOWN
Press UP/DOWN button to enter the
Function menu.
R12 / R14 LEFT/RIGHT
Press LEFT/RIGHT Button to adjust the
volume.
R13 OK
Select menu items.
R15 VOL +/-
Adjust the sound level.
R16 PR +/-
Not used.
R18 PC
Directly select VGA mode.
R19 S.MODE
Choose a different preset sound mode
or your own customized sound.
R20 AUTO
Choose automatically the correct
horizontal Position and vertical position
as well as the size of the screen image.
(VGA mode only)
 
/ Button
 
/ Button
