NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts

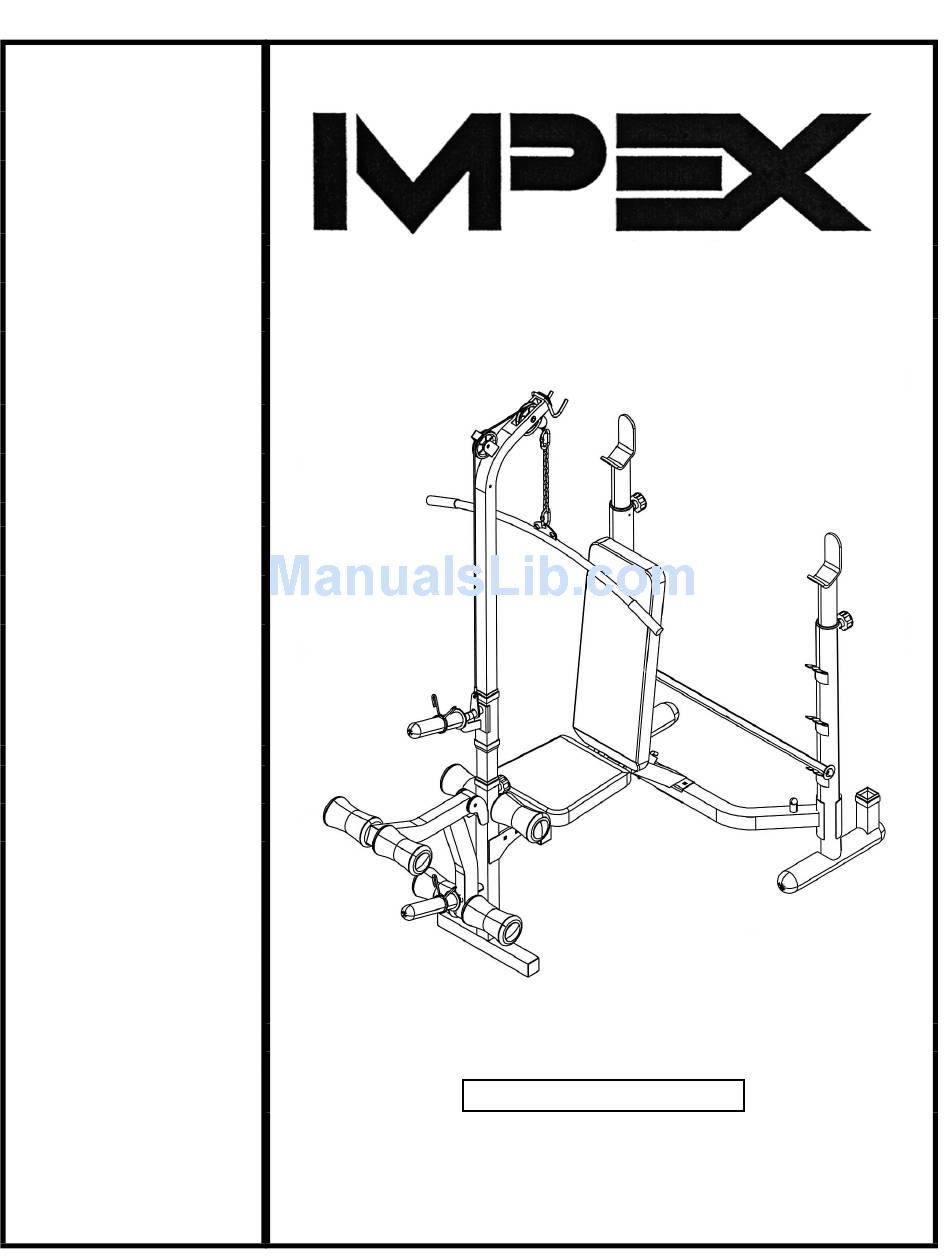

Model
MWB 765
Retain This
Manual for
Reference
08-10-05
OWNER'S
MANUAL
MARCY BENCH W/LAT BAR
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
MWB -765
IMPEX INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marcy MWB-765 and is the answer not in the manual?

Questions and answers

Summary of Contents for Impex Marcy MWB-765

  • Page 1 Parts List Warranty Ordering Parts Model MWB 765 Retain This Manual for Reference 08-10-05 OWNER'S MANUAL MARCY BENCH W/LAT BAR MWB -765 IMPEX INC. 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
  • Page 2: Table Of Contents

    WARRANTY...…………. 12 ORDERING PARTS...………… 12 BEFORE YOU BEGIN Thank you for selecting the MARCY MWB 765 BENCH by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3: Important Safety Notice

    OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. IMPORTANT SAFETY NOTICE READ ALL IMPEX INC.
  • Page 4: Hardware Pack

    HARDWARE PACK...
  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Left & Right Upright Beams (#1) & (#2) by the Cross Brace (#3) in the mid-span. Align the holes then secure each end of Cross Brace with one Bent Bracket (#9), two M10 x 3 ¾”...
  • Page 6 STEP 2 (See Diagram 2) A.) Attach the Leg Developer Holder (#5) to the Front Base (#6). Secure it with three M10 x 5/8” Allen Bolts (#52) and ¾” Washers (#48). B.) Attach the Leg Developer Holder (#5) to the front of the Main Seat Support (#4). Secure it with one M10 x 2 ½”...
  • Page 7 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#19) to the Leg Developer Holder (#5). Secure it with an Axle (#35), two ¾” Washers (#48), and two M10 x 5/8” Allen Bolts (#52). B.) Insert one M8 x 2 1/8” Allen Bolt (#62) through the hole on the Lat Bar Frame (#15) and secure it with a M8 Aircraft Nut (#63).
  • Page 8 STEP 4 (See Diagram 4) A.) Attach the hole-side of the Seat Bracket (#11) to the pivot on the Main Seat Support (#4). Push two 5/8” Bushings (#43) into the holes on the Pivot. B.) Attach the Backrest Supports (#13) to the Pivot. Secure it with one M10 x 7 ¼” Hex Bolt (#50), two ¾”...
  • Page 9 STEP 5 (See Diagram 5) A.) Insert one Foam Roll Tube (#20) halfway through the hole on the Leg Developer Holder (#5). Insert two Foam Roll Tubes (#20) halfway through the holes on the Leg Developer (#19). Push six Foam Rolls (#21) onto the Tubes from both ends. Plug six Foam Roll End Caps (#22) into the ends.
  • Page 10 STEP 6 (See Diagram 6) A.) Attach the ball end of the Cable (#18) to a Pulley (#26). Place the Pulley in the open slot on top of the Lat Bar Frame (#15). Secure the Pulley with one M10 x 2 3/8” Allen Bolt (#55), two Pulley Bushings (#29), and one M10 Aircraft Nut (#49).
  • Page 12: Parts List

    PARTS LIST KEY NO. DESCRIPTION Left Upright Beam Right Upright Beam Cross Brace Main Seat Support Leg Developer Holder Front Base Backrest Adjustment Bar Crutch Bent Bracket Bracket Seat Bracket Seat Incline Adjustment Backrest Support Backrest Incline Support Lat Bar Frame Weight Holder Lat Bar Cable...
  • Page 13: Limited Warranty

    IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.
