Impex PREMIER Owner's Manual page 9

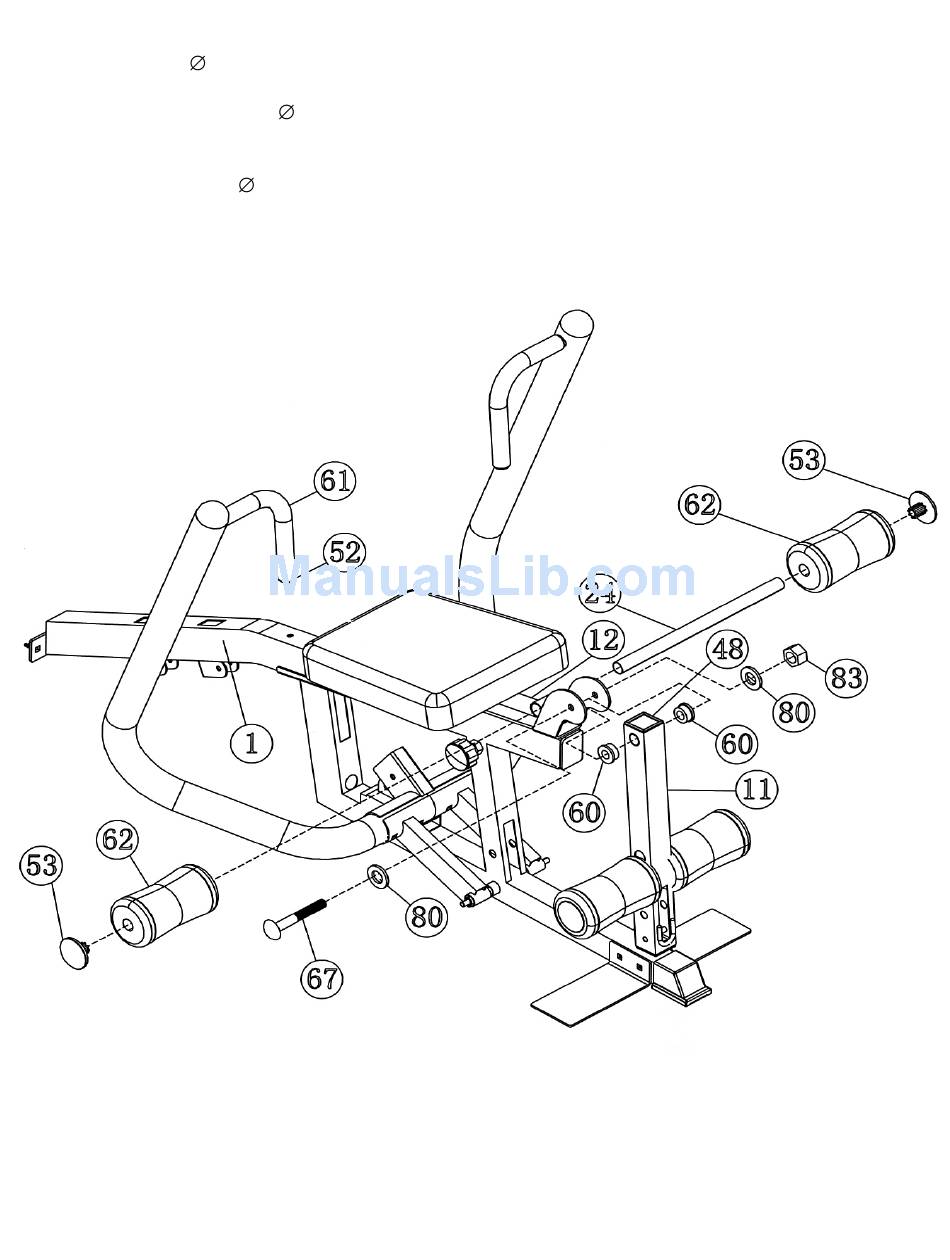

STEP 5 (See Diagram 5)
A.) Attach two 1" x ¼" Bushings (#60) to the pivot on the Leg Developer (#11). Attach the
Leg Developer (#11) to the Bracket in front of the Seat. Secure it with one M12 x 3 1/8"
Allen Bolt (#67), two
B.) Insert two Foam Roll Tubes (#24) halfway through the holes on the
(#12) and Leg Developer (#11). Push four Foam Rolls (#62) onto the Tubes from both
ends. Plug four
1" Washers (#80) and one M12 Aircraft Nut (#83).
2 5/8" Foam Roll End Caps (#53) to the ends.
8
Seat Incline Adjustment
DIAGRAM 5
