Hirschmann QPE 8600 Operating Manual

Qpsk-receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QPE 8600
Operating manual
QPSK-receiver
Version: 1.0
Print: October 2000
BH_8600E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QPE 8600 and is the answer not in the manual?

Questions and answers

Hari Singh
July 17, 2025

Hello are any of the QPE 8600 models end of sale or end of life and if so can you provide details. Thanks

0

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann QPE 8600

Summary of Contents for Hirschmann QPE 8600

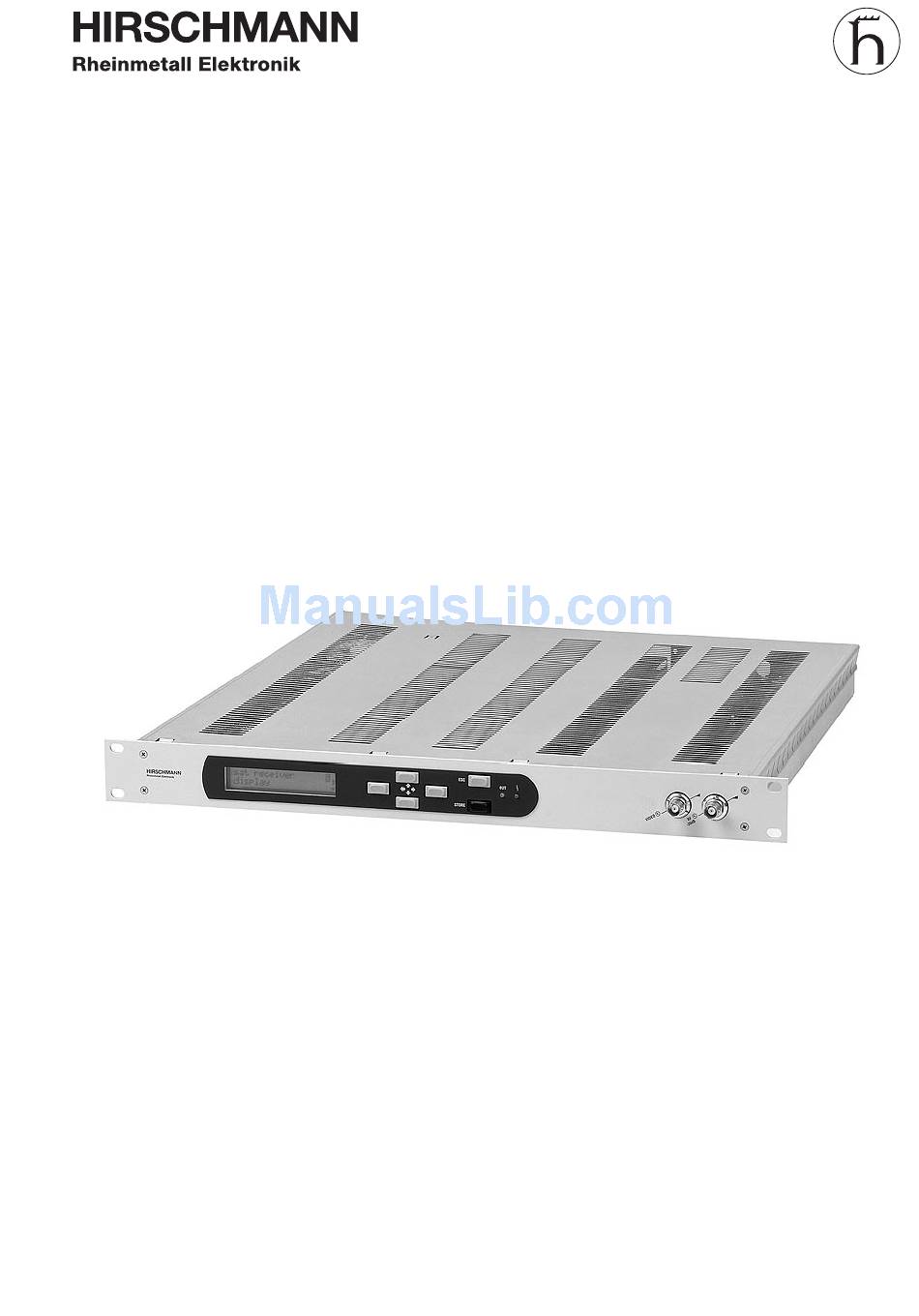

  • Page 1 QPE 8600 Operating manual QPSK-receiver Version: 1.0 Print: October 2000 BH_8600E...

  • Page 2: Table Of Contents

    Procedure........... . 2 - 10 QPE 8600...
  • Page 3 Disposal ............4 - 7 QPE 8600...
  • Page 4 Error messages ........6 - 5 QPE 8600 0 - 4...

  • Page 5: Introduction

    Copyright This manual contains information protected by copyright. All rights reserved. No part of this manual may be phototcopied, otherwise reproduced or translated into another language without the prior written consent of Hirschmann. Explanation of warning and note symbols WARNING:...

  • Page 6: Safety Notes

    The mains cable must not be exposed to mechanical stress! ATTENTION: The mains cable must be disconnected from the device, if: - the cable or the plug was damaged - a liquid was spilled onto the device - the cabinet was damaged QPE 8600 QPSK-receiver 1 - 3...

  • Page 7: Introduction To Digital Tv Broadcasting Technology

    To identify the individual packets there is a Packet Identity (PID) contained at the be- ginning of each packet (after the sync-byte). Each substream (e.g. video, audio) gets its own PID. Some PIDs are assigned automatically and cannot be changed (e.g.: PAT, CAT , .. siehe table 1) QPE 8600 1 - 4 QPSK-receiver...
  • Page 8 PID filtering for the The MPEG packets which match the adjusted PID, are filtered out. Of these QPE 8600 TS-packets specific bytes are selected (start byte and stop byte) and written into a FIFO. The read out data are converted into a serial data stream. The most significant bit “MSB first”...

  • Page 9: Definitions

    (UTC ... univerals time, coordinated). G.703 The ITU-T G.703 standard “Physical/Electrical Characteristics of Hierarchical Digital In- terfaces” defines the electrical and physical properties of the interface. Für the ETI-interface the definitions of the datarate 2.048 Mbit/s are valid. QPE 8600 1 - 6 QPSK-receiver...
  • Page 10 Data rate of the applied digital signal on the input. For correct decoding the respective data rate is to be set on the receiver. TS identifier Transport Stream identification: Each MPEG-transport stream has a unique descriptor. This descriptor identifies a transport stream independently of transmission path resp. frequency. QPE 8600 QPSK-receiver 1 - 7...

  • Page 11: Putting Into Operation

    Putting into operation Description General The QPSK-receiver QPE 8600 generates a MPEG-TS data stream from a QPSK mo- dulated DVB-S signal in the frequency range 950-2150 MHz. The TS packets with the ETI-signal data are filtered and processed as an ETI-signal (acc.

  • Page 12: Power Supply

    ”WARNING” are signalled via two floating double-throw contacts. At the floating double-throw contacts external error indicators ( e.g. siren, lamp) can be connected. The pin assignment is shown in chapter ”Interfaces and operating ele- ments”. QPE 8600 QPSK-receiver 2 - 3...

  • Page 13: Sat Receiver

    +13V (vertical) or +18V (horizontal). ly” LNC control The LNC 22kHz control can be switched on and off. The 22kHz control signal is used Menu “LNC 22kHz” for the selection of the receiving frequency band. QPE 8600 2 - 4 QPSK-receiver...

  • Page 14: Clock Recovery

    The Comstream protocol is oriented towards constant runtime. (accuracy ± 10 µs). The filling state of the FIFO can be queried. For the filling status a warning and an alarm threshold can be defined for monitoring this parameter. QPE 8600 QPSK-receiver 2 - 5...

  • Page 15: Qpe 8600 Qpsk-Receiver

    Putting into operation Block diagram 230/115 VAC Ethernet RS 232 Alarms QPE 8600 2 - 6 QPSK-receiver...

  • Page 16: Interfaces And Operating Elements

    [6] LED “ f ” lights up red in case of an alarm or hardware error. In addition, the dis- play shows which error occurred (e. g. “ERROR: PLL not locked”). [7] SAT-IF-monitoring output “SAT IF m” (RF-socket, type BNC, 50 ohm) [8] ETI-monitoring output “ETI OUT m” (RF-socket, type BNC, 75 ohm) QPE 8600 QPSK-receiver 2 - 7...

  • Page 17: Rear Panel

    [8] LED “LINK” (lights up when Ethernet connection is ok) [9] Mains connection “MAINS” [10]Mains fuse Pin-assignment RS232-interface (socket) Remark not used RXD (Receiving Data) TXD (Transmitting Data) not used ground 6 ... 9 not used QPE 8600 2 - 8 QPSK-receiver...
  • Page 18 Pin-assignment 10 Mbit/s The Ethernet interface is using a RJ-45 Stuart connector. Ethernet interface Remark RD+ Receive data (positive) RD- Receive data (negative) TD+ Transmit data (positive) TD- Transmit data (negative) 4/5/7/8 not used QPE 8600 QPSK-receiver 2 - 9...

  • Page 19: Start-Up

    3. Fix the module with the 4 screws on the front-panel. 4. Connect the signal cabling. 5. Connect the QPSK-receiver to the mains (boot procedure starts). 6. Check the LC-display. 7. Adjust the contrast of the LC-display (see menu operationg ‘display / contrast’) QPE 8600 2 - 10 QPSK-receiver...
  • Page 20 10 MHz reference frequency) PID (input of the PID number) Protocol (determination of the protocol e.g.: NDS) With “finished” you return to the main menu. The QPE 8600 is now ready for operation. 9. Check the LED’s on the front-panel.

  • Page 21: Menu Operation

    Input symbol rate Tuner status Input coderate Input level receiver Frequency offset Input C/N Input BER after V. LNC supply LNC 22kHz Reference frequency Clock PLL source recovery PLL status Data Protocol processing FIFO status QPE 8600 3 - 2 QPSK-receiver...
  • Page 22 Device ID menu Date&Time Reset Alarms/Warn. Setup Factory settings Contrast Device PIN code Network access Remote control Online users Ethernet status Network Ethernet config. PPP status PPP configuration Mail settings Module info Miscellaneous Temp. QPE 8600 QPSK-receiver 3 - 3...

  • Page 23: Menu Operation

    Arrow to the top resp. to the bottom : further menus can be selected by using the cursor keys. Arrow to the right: by using the ““à””-key a submenu can be selected. QPE 8600 3 - 4 QPSK-receiver...

  • Page 24: Alarm And Warning Messages

    If you want ot deactivate the password, you set the new password to “0000". NOTE: Write down the changed password. In case of a loss of your password contact the next service center. QPE 8600 QPSK-receiver 3 - 5...

  • Page 25: Configuration

    NOTE: The submenus do not contain a status line. After booting the device, the upper line of the display shows “QPE 8600 all ok” as well as the name stored under (Setup\Device ID: menu\Device ID:long name) Further messages about current errors, alarms and warnings can be queried.

  • Page 26: Preset / Reset

    If “Remote control” is set to “OFF”, the remote control is disabled, which means that that remote control center is still able to receive messages from the equipment (e.g. configuration changes made by a local operator), but cannot change the configuration any more. QPE 8600 QPSK-receiver 3 - 7...
  • Page 27 Netmail account: Input of the mail account Netmail dest.: Input of the email address Netmail delay: Input of the delay for sending mail Netmail send testmail: This menu item permits to sends a test mail QPE 8600 3 - 8 QPSK-receiver...

  • Page 28: Display

    If the input of a PIN-code is necessary for the release of an option, it has to be ente- Menu “Device PIN code” red in this menu. If the code is ok the message “Code accepted” is indicated. If the code is incorrect, the message is “Code not accepted”. QPE 8600 QPSK-receiver 3 - 9...

  • Page 29: Maintenance

    Maintenance work must only be carried out by trained staff with RF-knowledge. ATTENTION: In case of a technical problem send your QPSK-receiver to your next service center for repair. NOTE: Please go to our service homepage http://service.hirschmann.at to find other helpful information. QPE 8600 4 - 2 QPSK-receiver...

  • Page 30: Functional Check

    For a functional check it is sufficient to check the nominal states of the LED´s on the front-panel and the operating parameters on the display. Nominal operation state LED’s LED ” f ” does not light up LED ”OUT” lights up QPE 8600 QPSK-receiver 4 - 3...

  • Page 31: Help With Problems

    - Check the following settings: nput signal locked - PID PLL status: unlocked - Restore the factory settings with “Preset” and reconfigure the device. NOTE: Error messages, which are inserted on the LC-display, are listed in the appendix. QPE 8600 4 - 4 QPSK-receiver...

  • Page 32: Change

    Address of the manufacturer of the battery: Firma RENATA AG Kreuzenstr. 30 CH-4452 Itingen NOTE: The data in the ERROR history and the note entries ( when using in the network ) get lost when the battery is changed. QPE 8600 QPSK-receiver 4 - 5...
  • Page 33 7. Carry out a functional check. (see ”functional check”). Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Explosion risk by improper replacement of battery. Lithium Batterie 3V lithium battery 3V Top view of QPSK-receiver with open cover (only CPU assy) QPE 8600 4 - 6 QPSK-receiver...

  • Page 34: Software Update

    You can download the software update with the update information from the software update section on our service home- page http://service.hirschmann.at. Look for the ordering number gi- ven below. The update sectin is protected by password. To obtain the present password please contact service@rw.hirschmann.at.

  • Page 35: Order Information

    Maintenance Order information Ordering description Type Ordering number QPSK-Empfänger (230V~) QPE 8600 977 240-001 QPSK-Empfänger (115 V~) QPE 8600 977 240-101 QPE 8600 4 - 8 QPSK-receiver...

  • Page 36: Service Centers

    Austria Hirschmann Austria GmbH Tel. +43-(0)5522/307 0 Oberer Paspelsweg 6-8 +43-(0)5522/307 555 A-6830 RANKWEIL-BREDERIS Email info@rw.hirschmann.at Germany Hirschmann Electronics GmbH & Co. KG Tel. +49-(0)7127/14 0 Stuttgarter Str. 45 - 51 +49-(0)7127/14 1214 D-72654 NECKARTENZLINGEN Email info@nt.hirschmann.de Benelux Richard Hirschmann Tel.

  • Page 37: General Data

    : 0.315 A slow for 115 V : 0.63 A slow Power consumption at nominal load: : max. 24 W : EN 50083-2/A1 edition 9/95 + A1 edition 3/97 Safety standard : EN 60065 (edition April 94) QPE 8600 6 - 2 QPSK-receiver...
  • Page 38 : 50 Ohm Output Data outputs “ETI 1 a”, “ETI 2 a” Standard : CCITT-G.703 Impedance : 75 ohm unbalanced Data rate : 2,048 Mbit/s +/- 50 ppm Amplitude : 2,37 Vpp Line code : HDB3 QPE 8600 QPSK-receiver 6 - 3...
  • Page 39 Remote monitoring interface “ALARMS”: Max. switched voltage : 30 VDC or 42 VAC *(SELV acc. to EN60950) Max. switched current : 0,5 A Pin-assignment : see “Putting into operation\Interfaces” *SELV..low voltage circuit (safety extra-low voltage) QPE 8600 6 - 4 QPSK-receiver...

  • Page 40: Error Messages

    Most network errors will cause the device to perform a reset. If the network error, ho- wever, persists, contact one of our service centers. QPE 8600 QPSK-receiver 6 - 5...
  • Page 41 Check the DHCP server in the network. If the DHCP server is out of order, you can try entering a valid IP address manually. If the problem cannot be solved this way, contact one of our service centers. QPE 8600 6 - 6 QPSK-receiver...
  • Page 42 The flash is defect. Solution: Change the device and contact one of our service centers. Message: FPGA failure. Cause: Unknown. Solution: Change the device and contact one of our service centers. Message: FTP-client: Could not contact host. QPE 8600 QPSK-receiver 6 - 7...
  • Page 43 (e.g. after removal of an option) OR Change the device. Message: No battery found. Cause: Connection problem. Solution: Replace the battery. Message: No submodule found. Cause: Connection problem. Solution: Check the connection to the submodule. QPE 8600 6 - 8 QPSK-receiver...
  • Page 44 Change the device and contact one of our service centers. Message: RF-converter failure. Cause: Uknown. Solution: Change the device and contact one of our service centers. Message: SAT receiver failure. Cause: Unknown. Solution: Change the device and contact one of our service centers. QPE 8600 QPSK-receiver 6 - 9...
  • Page 45 Solution: Change the device and contact one of our service centers. NOTE: NOTE: NOTE: NOTE: Under normal conditions most network errors will cause the BS8000 to make a reset and fix the problem automatically. QPE 8600 6 - 10 QPSK-receiver...
