www.hirschmann.com
DS 85 with TRS 05 / PATB3
TRS 05 Receiver/PATB3 Switch Replacement on the DS 85
P/N 031-300-190-199 Revision B 09/07/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRS 05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hirschmann TRS 05

  • Page 1 DS 85 with TRS 05 / PATB3 TRS 05 Receiver/PATB3 Switch Replacement on the DS 85 P/N 031-300-190-199 Revision B 09/07/2006...
  • Page 3: Table Of Contents

    Installation NOTICE Hirschmann makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and/or its fitness for a particular purpose. Hirschmann will not be liable for errors contained in this manual or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.
  • Page 4: Installation

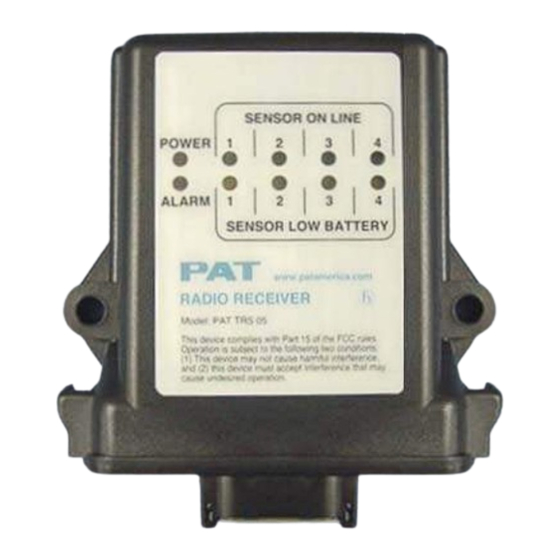

    TRS 05 MOUNTING The TRS 05 receiver will mount in the same place as the A2B receiver. Attach the 13ft long antenna base and whip to the TRS 05; and mount the magnetic antenna parallel to the ground, as shown below.
  • Page 5: System Description

    Sensor #2 is not communicating correctly. Green LED 2 OFF No sensor is installed on channel #2. Yellow LED 2 ON Sensor #2 batteries are low and need replaced. Note that the sensor is still operating correctly. © Hirschmann Rev. B 09/07/2006 190199_B.DOC...
  • Page 6: Control Identification

    Installation/Setup Manual DS 85 / TRS 05 Green LED 3 ON Sensor #3 is installed and communicating correctly. Green LED 3 FLASHING Sensor #3 is not communicating correctly. Green LED 3 OFF No sensor is installed on channel #3. Yellow LED 3 ON Sensor #3 batteries are low and need replaced.
  • Page 7: Operation

    When a low battery condition occurs, the follow 2 conditions will exist: 1. The yellow LED will come on the TRS 05 for the sensor. 2. The signal for that sensor will cycle between input signal and max signal, which causes a system fault and alarm for 25 seconds.
  • Page 8: Setup A Sensor/Menu Options

    Battery Replacement. The TRS 05 setup/calibration procedure allows the operator to input the type of sensors being used, and adjust the zero point and output adjustment of a load sensor. The operator must complete the setup procedure for each sensor.
  • Page 9: Uninstall Sensor / Transmitter

    Green LED 4 solid: Uninstall sensor 4. This is a basic overview table of the menu selections fro the TRS 05. Press and hold ID button, release the button at the desired indication (or the number seconds) defined in the following table.
  • Page 10: Installation

    Installation/Setup Manual DS 85 / TRS 05 INSTALLATION RECEIVER The receiver module should be mounted so the operator can view the LEDs and setup the system for operation. The location of the receiver should be in direct line of site of the transmitter and blocked by as little metal as possible between the transmitter and receiver.
  • Page 11: Spare Part Numbers

    Spare Part Numbers SPARE PART NUMBERS 6608124 RADIO, REVEIVER TRS05 ASSEMBLY, W/ ANTENNA 031-300-050-671 ANTENNA, 918 MHz FOR TRS05ASSEMBLY 060-576 WHIP ELEMENT 031-300-050-672 ANTENNA, 918 MHz MAGNETICBASE 13' long wire 031-300-060-597 RADIO, RECEIVER, TRS05-2 SPREAD SPECTRUM © Hirschmann Rev. B 09/07/2006 190199_B.DOC...
  • Page 12 Installation/Setup Manual DS 85 / TRS 05 Antenna spare parts reiteration 031-300-050-671 ANTENNA, 918 MHz 031-300-050-672 ANTENNA, 918 FOR TRS05ASSEMBLY 060-576 WHIP MHz MAGNETICBASE 13ft long ELEMENT wire 031-300-050-688 ANTENNA, 918 MHz RCL 90° 031-300-060-559 ANTENNA ASSY, 918 MHz WHIP FORLOAD CELL...

This manual is also suitable for:

Patb3
