TVM-1701/TVM-1901 models
TVM-1850/TVM-2150 model
Attaching the monitor
stand

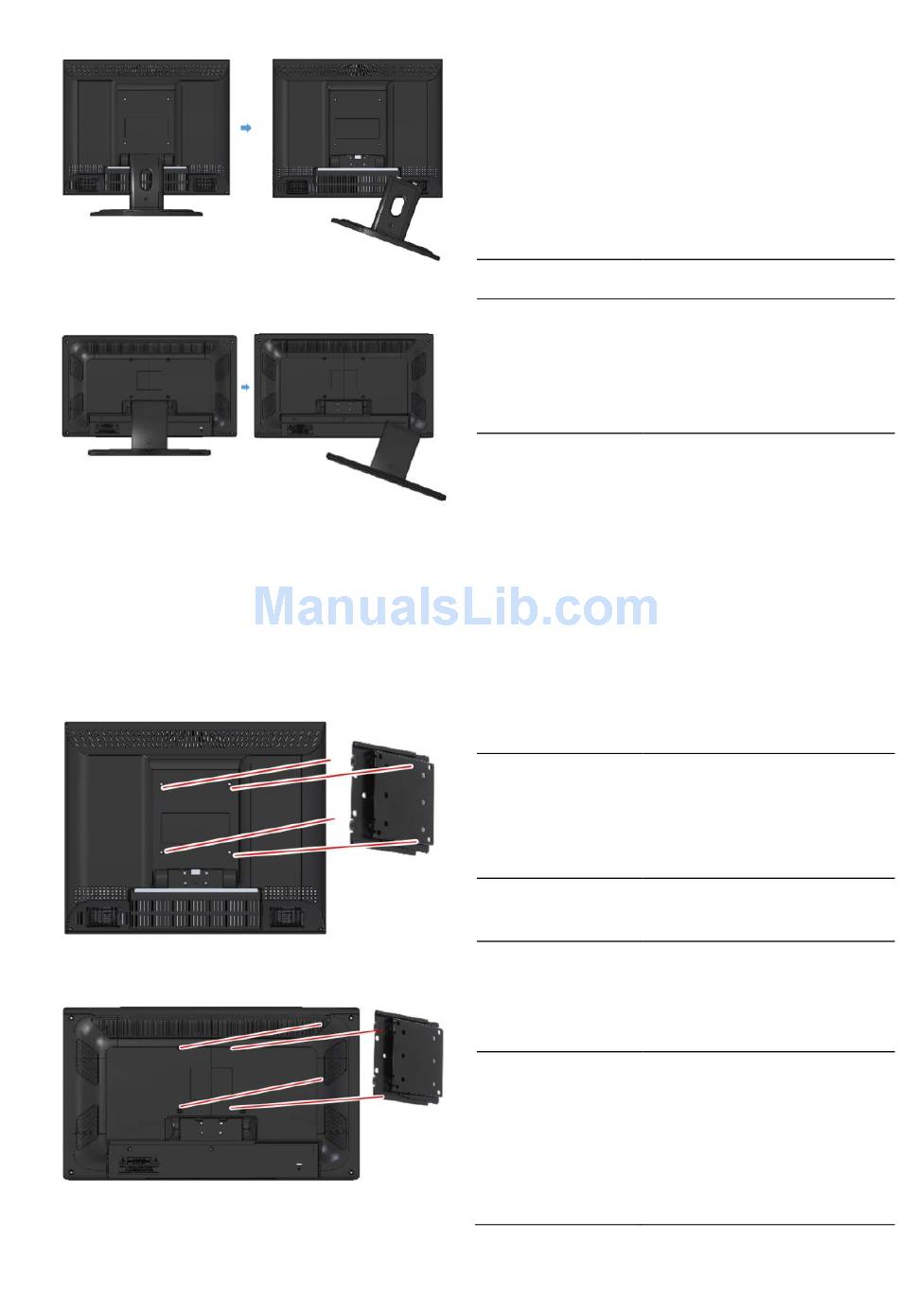

Tighten the screws at the locations indicated
by the arrows shown in the figures below.
TVM-1701/TVM-1901 models
TVM-1850/TVM-2150 models
User Manual
The monitor's installation surface is
compatible with other types of VESA standard
stands.
Hole spacing: 100 x 100 mm
Screw length: 8 to12 mm

Troubleshooting

Symptom Check
Picture is jittery
Adjust
screen position and adjust
the Clock value carefully
until there is no noise
displayed.
No picture
Check if the power switch
and computer power
switch are in the On
position.
Check if the signal cable is
correctly connected to the
video card.
Check if the pins of D sub-
connector are not bent.
Check if the computer is in
the power- saving mode.
POWER LED is Check if the power switch
not lit is in the On position.
Check if the power cord is
correctly connected.
Image is Check if the signal cable is
unstable suitable to the video card.
Image is not Adjust
centered, too Center
small, or too image.
large
Picture bounces Keep the devices that may
or a wave cause electrical
pattern is interference away from the
present in the monitor.
See the FCC information
at the front cover of the
Clock to set the
Clock or H&V
to get the proper
11
