Assembling the monitor

The monitors are designed for use on a
desktop.
The arm of the monitor stand is shipped pre-
installed on the monitor.

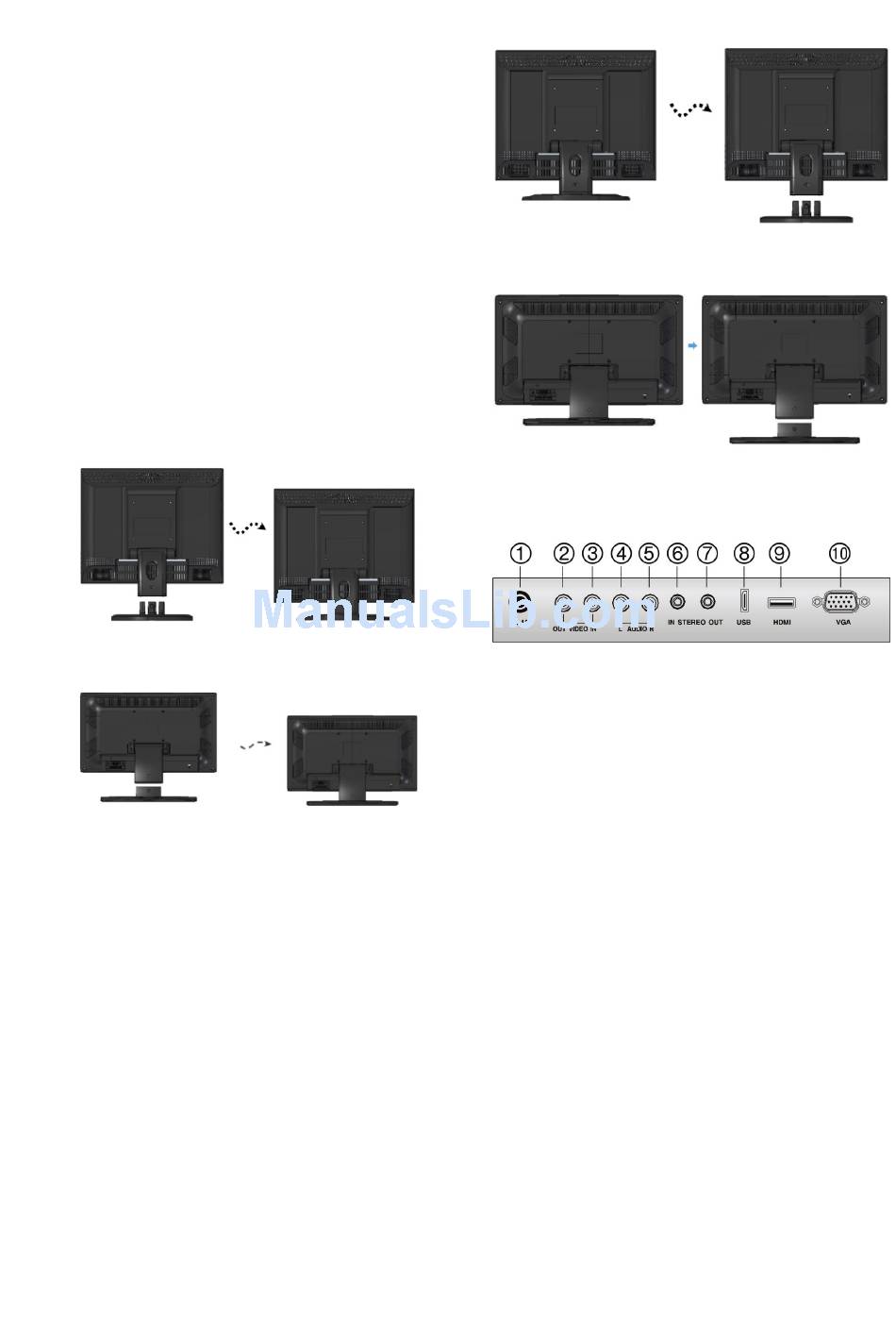

To assemble the monitor:
1. Put a smooth pad or cloth on a level
surface. Place the monitor on it facing
downwards.
2. Insert the arm of the monitor stand of the
monitor into the pedestal foot provided.
See figures below.
TVM-1701/TVM-1 901 models
TVM-1850/TVM-2150 models
To disassemble the monitor:
1. Put a smooth pad or cloth on a level
surface. Place the monitor on it facing
downwards.
2. Using a screwdriver or a similar object
with a sharp end, carefully detach the
supporting arm from the foot by pressing
the groove on the back of the supporting
arm. (Note that the fixation point can be
broken if too much force is applied). See
figures below.
User Manual
TVM-1701/TVM1901 models
TVM-1850/TVM-2150 models

Connections

1. DC 12V Input
2. VIDEO OUT
Composite signal output
3. VIDEO IN
Composite signal input.
4. AUDIO L
Audio signal input left.
5. AUDIO R
Audio signal input right.
6. PC Stereo Input
7. Head Phone Out
8. USB
Service port
9. HDMI
HDMI signal input.
10. VGA
RGB signal input.
